How Can You Use Hybrid Control Plane Architecture: Cloud Orchestration with On-Premises Data?

Use Hybrid Control Plane Architecture when cloud orchestration is acceptable but record processing must remain in customer-controlled infrastructure. You face a difficult choice between cloud platforms that may weaken data sovereignty and on-premises systems that consume engineering resources. If your workloads cross borders, you must account for General Data Protection Regulation (GDPR) transfer restrictions, Health Insurance Portability and Accountability Act (HIPAA) safeguards, and Digital Operational Resilience Act (DORA) requirements, with DORA now in active enforcement. Legacy ETL platforms can make these requirements harder to manage as license costs and operational overhead grow. Policies that prohibit external metadata or administrative access require self-managed or isolated management.

TL;DR

• Hybrid Control Plane Architecture separates cloud orchestration from in-boundary data processing.
• You must govern metadata egress, outage behavior, retries, logs, credentials, and recovery state separately from record payloads.
• Hybrid balances hosted orchestration with local payload processing when governed metadata egress is acceptable; stricter policies may require self-managed or air-gapped management.
• Managed orchestration can work with customer-controlled data planes while records remain in-boundary.

Try Airbyte Flex

What Does a Hybrid Control Plane Actually Do?

A hybrid control plane narrows your choice between cloud convenience and in-boundary control by splitting data integration work into two connected but separate layers.

The control plane handles orchestration from the cloud. It stores pipeline configurations, schedules runs, and monitors health while source and destination payload processing stays in the data plane. This approach lets the control plane scale globally while keeping management work lightweight for your team. You can start and monitor jobs while the provider operates the orchestration infrastructure.

The data plane executes locally and runs connectors next to your sources and destinations. Credentials, CDC streams, and record payloads can stay in-boundary inside your virtual private cloud (VPC) or data center. The data plane sends job metadata and status updates back to the control plane.

Your team must review that metadata boundary separately. Outbound information varies by implementation and connector. It can include schema, table, and column names, plus data types, row counts, processing times, and sync timestamps. It can also include errors, stack traces, query text, and worker status. Names such as hiv_status, identifiers embedded in errors, or operational logs tied to an individual can qualify as personal data or electronic protected health information (ePHI), even when record payloads remain local.

Security depends on how your team controls traffic direction and content:

• Each data plane opens outbound-only connections to pull tasks from the control plane
• In a documented outbound-only configuration, the data plane initiates all connections through those endpoints
• Allowlist outbound metadata and scrub errors before transmission
• Keep credentials and detailed logs in customer-controlled secret stores and logging systems where the implementation supports them
• Define processing locations, subprocessors, retention, access, and deletion requirements in the contract terms

Outbound-only networking avoids inbound firewall holes and can reduce the attack surface. The hosted control plane remains a dependency, and metadata still requires governance.

How Does Hybrid Orchestration Improve Data Operations?

Hybrid orchestration can reduce your management work, isolate regional worker failures, and create consistent audit records while you retain responsibility for local capacity, connectivity, and recovery.

1. Reduce Pipeline Maintenance Overhead

Centralized automation for provisioning, backups, scaling, and recovery reduces break-fix work and gives your engineers more time for new features. With orchestration logic running in the cloud, your team can leave management-stack maintenance to the provider. Depending on the implementation, the provider may manage platform and data-plane upgrades, while your team still owns local worker capacity, networking, source access, and destination access.

2. Improve System Reliability

Each region can run an isolated data plane, which limits the blast radius of worker or network problems. The shared cloud control plane remains a dependency, however, and your team must distinguish running-job continuity from new-job launch availability.

During a control-plane outage, an implementation may let tasks that already started continue locally while it blocks new schedules, task launches, status publication, or configuration changes. Heartbeat loss can cause the control plane to mark workers unavailable, and queued jobs may remain pending until connectivity returns. Recovery procedures should define whether retries are idempotent and whether at-least-once delivery can create duplicate records.

CDC pipelines need additional safeguards during prolonged outages. Your team should test source-log retention, storage pressure, and whether an unavailable recovery position requires a new snapshot. Resuming from an earlier position can emit duplicate events, so your downstream destinations need deduplication keys or another documented reconciliation process. Set recovery time and recovery point objectives for scheduling, state, and source-log retention because data-plane isolation leaves shared control-plane dependencies.

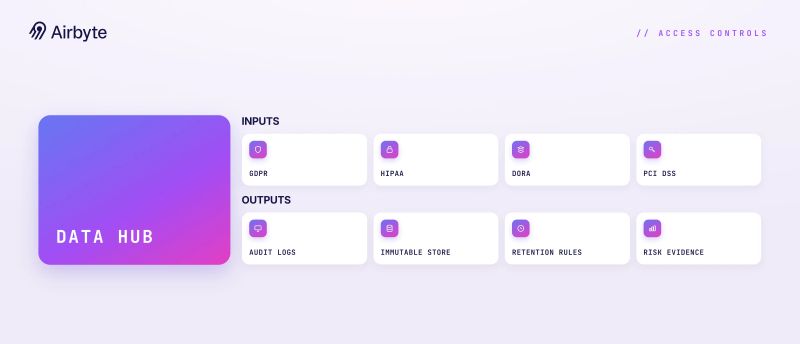

3. Enable Built-In Auditability

Your logging system should create an audit record for every sync, schema change, and credential rotation. Useful records identify the actor or workload identity, timestamp, action, affected resource, outcome, and relevant configuration version while excluding secrets and sensitive payloads from logs.

DORA requires your team to document a risk-based retention period through its logging procedures. Match that period to the applicable rule and your documented risk.

Your team should also alert when logging or export fails. Failed logging or export can leave the audit record incomplete.

Your team must match retention and immutability to the applicable rule. HIPAA requires organizations to keep documentation for six years. Payment Card Industry Data Security Standard (PCI DSS) v4.0.1 requires 12 months of audit history, and organizations must make three months immediately available. Store protected copies in customer-controlled immutable storage and prevent privileged users from deleting records of their own activity.

How Do Hybrid Control Planes Compare to Cloud-Only and Self-Managed Models?

Cloud-only deployments prioritize provider-managed operations, self-managed deployments give you direct control of the management layer, and hybrid deployments combine hosted orchestration with local data-plane execution.

4. Deliver Real-World Business Impact

Hybrid deployment can keep regulated processing local, reduce repeated full-table scans, and restrict cross-boundary transfers to permitted outputs.

If you operate a regional bank, you can use hybrid deployment to process PCI data on-premises, generate approved aggregates or tokenized outputs in your local data plane, and send only those permitted results to a cloud destination for continuously updated dashboards. If you operate a manufacturing environment, you can use hybrid processing to replicate SAP tables through local workers. Where the connector supports it, incremental or CDC extraction can reduce source load and contention from repeated full-table scans during quarter-end processing. If you operate an airline, you can use region-specific data planes to process flight events and publish only the outputs that may cross each compliance boundary.

Choose a Model Based on Boundary Requirements

Choose hybrid when your policies permit operational metadata egress, outbound connectivity, and a hosted dependency for new-job scheduling. Managed cloud generally offers faster provider-managed deployment, while a self-managed deployment gives you direct control of the management layer. An air-gapped deployment blocks external connectivity if the provider offers and confirms that option.

Self-managed or jurisdictionally isolated management is preferable when regulations, contracts, or your internal policy prohibit metadata egress or foreign-jurisdiction administration. If you manage classified workloads or sovereign public-sector deployments, you may require an accredited sovereign cloud or an air-gapped management plane.

Compare Deployment Model Tradeoffs

Choose the model whose metadata boundary, operational ownership, and outage behavior match your documented requirements.

What Teams Benefit Most from Hybrid Control Planes?

You benefit most when you can permit governed metadata egress but must keep payload processing inside customer-controlled infrastructure. Your role determines whether you focus first on cost, compliance boundaries, or implementation ownership.

Infrastructure Modernization Leaders

If you lead infrastructure modernization, you often evaluate the operational cost of maintaining legacy integration systems. You can compare maintenance effort, deployment time, and infrastructure cost, but your security team must determine whether the architecture satisfies boundary requirements.

• Need measurable return on investment (ROI) when integration projects stall before delivering value, with baselines for maintenance effort, deployment time, and infrastructure cost
• Can retire racks of brittle ETL servers by moving orchestration to the cloud while retaining the local capacity required for data-plane execution
• Use savings from reduced orchestration maintenance for new analytics initiatives while retaining access to connectors, provided you validate migration and compatibility requirements first
• Compare local infrastructure, support, egress, migration, and control-plane subscription costs before committing

Data Sovereignty Guardians

If you are a chief information security officer (CISO) or compliance officer, you focus on jurisdiction, metadata, and administrative control. You determine which payload, metadata, and support-access boundaries the architecture must enforce.

• Evaluate cross-border transfers and regulatory penalties, including whether metadata and support access cross the same boundaries as payloads
• Deploy region-specific data planes during global expansion, subject to your local networking, identity, and audit requirements
• Prove GDPR or HIPAA alignment through local audit logs and address DORA through information and communication technology (ICT) risk controls, contractual location transparency, and exit planning

A deployment is acceptable only when its locations and access paths satisfy these requirements.

Technical Implementation Leads

Once your security team defines the permitted boundary, you must translate it into networking, recovery, and change-control procedures. If you lead implementation, you own the remaining local systems and recovery processes.

• Face shortages in specialized data engineering talent and determine which local operations still require specialist ownership
• Retain connectors when deployment models share the same connector codebase, subject to connector testing and change-control requirements
• Focus on improving CDC replication or building ML features while the provider maintains orchestration infrastructure
• Receive centralized updates while coordinating approved change windows and retaining responsibility for recovery testing

Production approval depends on clear implementation-team ownership of local recovery and change control.

How Can Teams Adopt a Hybrid Control Plane?

Sequence focused actions, validate boundary controls, and define recovery criteria before you move production workloads.

1. Assess Regulatory Requirements

Inventory every dataset. Tag datasets subject to GDPR transfer restrictions, HIPAA, DORA, PCI DSS, or sector-specific sovereignty requirements. Map both payloads and metadata, including schema names, errors, logs, row counts, timing data, and query text.

This inventory determines where each data plane must live and whether metadata may reach a hosted control plane. It also identifies the applicable transfer mechanism or business associate agreement and the required encryption and audit settings. Verify encryption for data in transit and at rest, and validate personally identifiable information (PII) masking to shield sensitive information. For DORA, document provider and subcontractor processing locations, concentration risk, data-return terms, and a tested exit plan.

2. Deploy the Cloud Control Plane

Configure the managed orchestration layer from the Web app. Configure identity-provider integration, role-based access, and administrator multi-factor authentication (MFA). Assign service-account ownership, approve outbound endpoints, and define alert routes before you activate production schedules. Keep scheduling, monitoring, and orchestration upgrades in the cloud.

Document the expected outage behavior and your operator procedure for recovering critical pipelines. Cover both running-job continuity and new-job launch availability.

3. Set Up Local Data Planes

Install lightweight worker containers inside your VPC or on-premises cluster. Restrict their egress to required destinations and ports, use workload identity to minimize long-lived static credentials where possible, and coordinate approved change windows with the provider to meet your change-control requirements.

4. Configure Secrets Management and Logging

Point connectors to existing vaults such as AWS Secrets Manager or HashiCorp Vault and stream logs to Splunk or Amazon S3. This configuration keeps credentials and detailed audit trails in-boundary while preserving unified status monitoring in the orchestration layer.

For Kubernetes, an External Secrets Operator configuration can use IAM Roles for Service Accounts (IRSA) to retrieve secrets through the airbyte-worker service account. The following configuration references that service account:

<pre><code>apiVersion: external-secrets.io/v1
kind: SecretStore
metadata:
  name: airbyte-secrets
  namespace: airbyte
spec:
  provider:
    aws:
      service: SecretsManager
      region: eu-central-1
      auth:
        jwt:
          serviceAccountRef:
            name: airbyte-worker</code></pre>

Grant that service account access only to the required secret paths. Define a rotation schedule, verify that workers reload rotated values, and alert on failed secret access. For audit records, send a protected copy to immutable object storage, apply the required retention period, and prevent administrators from deleting or disabling records of their own activity.

5. Validate Audit Trails and Failover Paths

Run a full-load and CDC stress test, interrupt control-plane connectivity, force a worker restart, and verify that your team can restore encrypted backups correctly. Also verify duplicate detection, schema-state restoration, and log delivery.

For CDC, confirm that source logs remain available longer than the maximum planned outage and recovery window. These logs include PostgreSQL Write-Ahead Log (WAL), MySQL binlogs, or equivalent source logs. Test the procedure for an expired log position, including whether you need a new snapshot and how your team reconciles duplicates. Base production sign-off on these measured recovery objectives and use them to determine the implementation timeline.

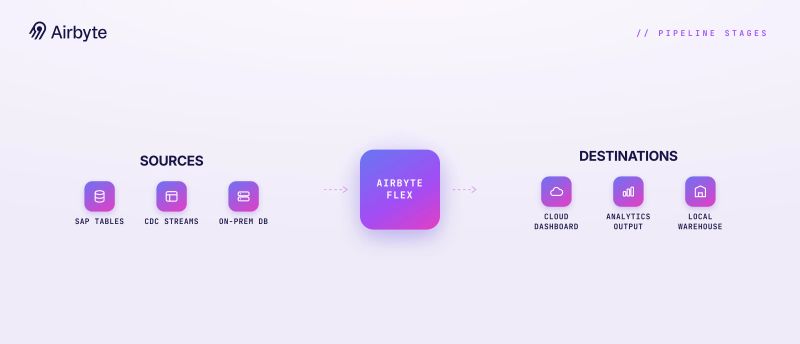

How Airbyte Flex Helps with Hybrid Control Plane Architecture

Airbyte Flex supports hybrid deployment with customer-controlled data planes when you can permit governed metadata egress and hosted orchestration while keeping record processing in your boundary. Across Airbyte, 2M+ pipelines run daily, Airbyte processes 26B records daily, and 18% of the Fortune 500 use the platform; an economic impact study found 239% ROI.

Review Security and Compliance Controls

For Airbyte Flex, review the managed orchestration layer against applicable SOC 2 criteria and evaluate how customer-hosted data planes support HIPAA and GDPR requirements. Use this security model to assess the division of responsibility between managed orchestration and customer-controlled data-plane processing.

Apply Regulated Deployment Patterns

You can apply the model according to your industry-specific data, location, and operational requirements. The applicable pattern depends on the boundaries your team must enforce.

• If you are a European bank, you can keep trading data in-region while addressing DORA requirements for ICT risk management, data-location transparency, third-party contracts, and exit planning
• If you operate a hospital network, you can run ePHI pipelines inside private VPCs while using Flex for managed upgrades and monitoring
• If you operate a global telecom, you can route call-detail records through local data planes and address applicable sovereignty mandates with one shared toolset

Each pattern requires you to define permitted data and metadata locations, access paths, and contractual controls. You must also define upgrade ownership and exit procedures.

Airbyte Flex Differs from Other Hybrid ETL Platforms

Hybrid products can differ substantially in what runs locally, what metadata reaches the vendor, where job state persists, and who controls upgrades. These differences affect the boundary you must govern.

Document the connection protocol, required outbound endpoints, metadata transmitted to the hosted service, location of job and connector state, and local log behavior. Also document whether the provider or your team manages upgrades and how both parties coordinate approved change windows. These details determine the practical effects of version drift, change-control delays, control-plane outages, and customer-cloud permissions.

If you are moving from Informatica or Talend, you can manage cloud and on-premises data planes through one Airbyte instance. This option applies when hosted orchestration and governed metadata egress meet your data-sovereignty requirements. You can adopt connector and orchestration updates while retaining compatible jobs, subject to connector compatibility testing and change controls. Inspectable and forkable connectors, shared connector code, and deployment choices can reduce vendor lock-in, while job configuration portability still depends on supported formats and compatibility.

Base your decision on the supported metadata boundary, upgrade model, connector portability, and local operating responsibilities.

What's the Next Step for Enterprise Data Leaders?

Validate metadata egress, outage recovery, and operational ownership against your regulatory and technical requirements before selecting a hybrid deployment. Evaluate whether Airbyte matches those requirements. Get a demo to see how Airbyte Flex deploys the unified connector catalog in your boundary.

Frequently Asked Questions

What Industries Benefit Most from Hybrid Control Planes?

If you work in financial services, healthcare, manufacturing, or telecom, you may face strict data residency, security, and operational-resilience requirements. You can use local data planes to keep regulated workloads inside controlled environments while using managed orchestration.

How Long Does Hybrid Deployment Take?

Your deployment time depends on network approvals, identity integration, secret management, regulatory review, worker installation, and recovery testing. You can configure the cloud control plane before installing local workers, and your team can reuse existing operational knowledge if it is familiar with the platform.

Does Hybrid Architecture Cost More Than Cloud-Only?

Your hybrid deployment costs depend on workload volume and operating requirements. Hybrid can avoid transferring record payloads through a vendor-hosted data plane and reduce the management infrastructure you operate, but you retain local compute, networking, storage, security, and support costs. Compare subscription fees, local worker capacity, egress, migration, compliance controls, and staffing against cloud-only and fully self-managed alternatives to determine the available savings.

Can You Mix Cloud and On-Premises Data Planes?

Yes. One Airbyte instance can cover multiple regions through multiple workspaces. Scope each workspace to its region or compliance boundary, then connect it to an isolated data plane so you can keep EU data in Frankfurt and US data in your Virginia data center. You can manage both through the same orchestration layer and use 700+ connectors from one unified catalog across deployment models.
