Ever wanted or been asked to build an open-source Data Lake offloading data for analytics? Asked yourself what components and features would that include. Didn't know the difference between a Data Lakehouse and a Data Warehouse ? Or you just wanted to govern your hundreds to thousands of files and have more database-like features but don't know how?
This article explains the data lake power and which technologies can build one to avoid creating a Data Swamp with no structure and orphaned files . And discuss the analytical capabilities of data lakes and how to make them. We will go through when you'd not use a data lake and what alternatives are there.
With Databricks open-sourced the full Delta Lake 2.0, including premium features, and Snowflake announcing an integrated Iceberg Table, the market is hot right now .
What’s a Data Lake and Why Do You Need One? A data lake is a storage system with an underlying Data Lake File Format and its different Data Lake Table Formats that store vast amounts of unstructured and semi-structured data , stored as-is, without a specific purpose. Its the primary destination for growing volumes and varieties of exploratory and operational data next to data warehouse destinations. A wide range of technical and non-technical data consumers can access that data for analytic use cases and machine learning models, including business intelligence and reporting.
A data lake also removes the need to go through a proprietary format that traditional BI tools had done to transform the data. You load data into the lake, and old bottlenecks where data teams spend their time building and maintaining complex ETL pipelines are gone, and waiting weeks for data access requests are skipped.
With a data lake, data becomes increasingly available, and early adopters discovered that they could extract insight through new applications built to serve the business . The data lake supports capturing and storing raw data at scale for a low cost with many different types of data . An accessible way to perform a transformation on top, even when not yet precise which analytics are needed at the end —mainly quickly iterate on the transformations and explore business value ad-hoc.
A data lake (initial Data Lake paper from 2014 ) can be built on multiple technologies such as Hadoop, NoSQL, Amazon Simple Storage Service, a relational database, or various combinations and different formats (e.g., Excel, CSV, Text, Logs, Apache Parquet , Apache Arrow , Apache Avro , more on that later). Every data lake starts with a simple storage provider, a data lake file format and then extends crucial database-like features with data lake table formats that we explore later in this article.
What’s the Differences between a Data Lake, Data Warehouse, and Data Lakehouse So what’s the difference from a data lake to data lakehouse then? A data lakehouse is a combination of a data lake and a data warehouse if you will (and there are many opinions in-between). A data lakehouse has an open data management architecture that combines the flexibility, cost-efficiency, and scale of data lakes. Same as a data lake, it also has database features provided by data lake table formats (Delta Lake , Apache Iceberg & Hudi ).
A data lakehouse has additional Data Governance compared to a data lake. It includes cluster-computing frameworks and a SQL query engine. More features rich lakehouses also support Data Cataloging and State-of-Art Orchestration .

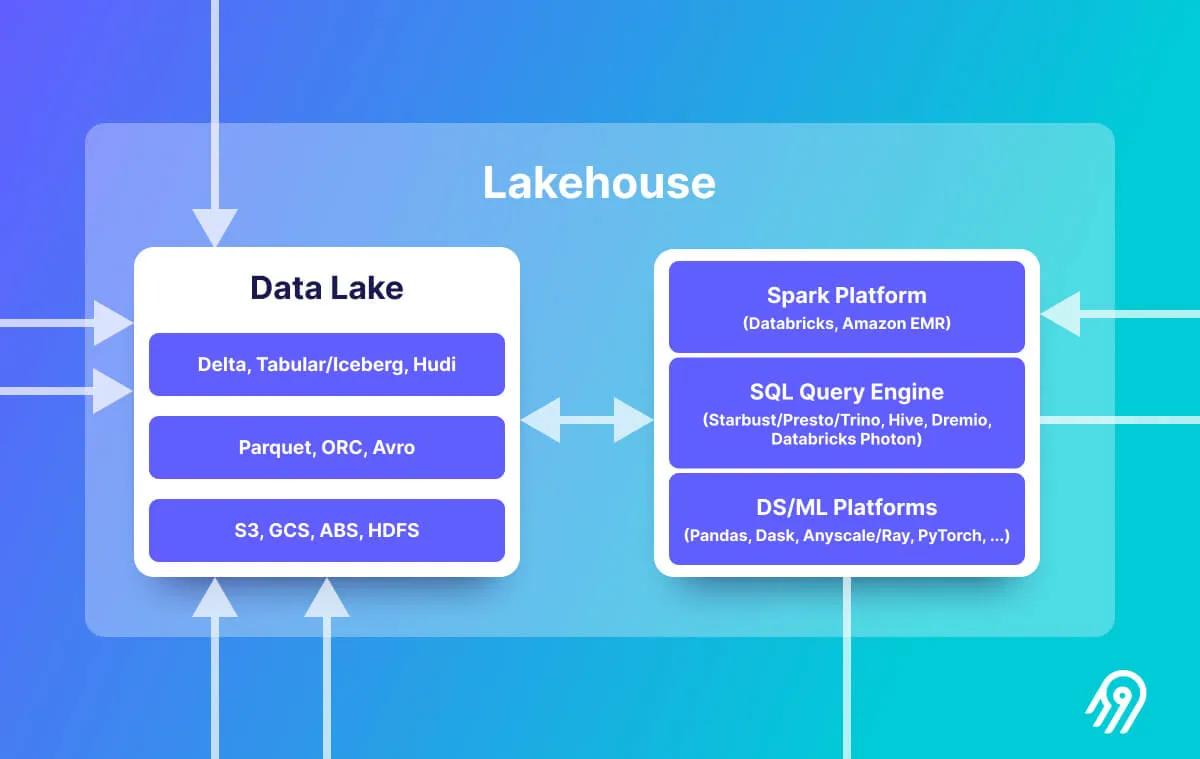

Overviewing Data Lake vs. Lakehouse (See the Full Architecture on Emerging Architectures for Modern Data Infrastructure). In Emerging Architectures for Modern Data Infrastructure , they say there is growing recognition for the data lakehouse architecture and have seen it by the adoption of prominent vendors (including AWS, Databricks, Google Cloud, Starburst, and Dremio) and data warehouse pioneers. The fundamental value of the lakehouse is to pair a robust storage layer with an array of powerful data processing engines like Spark, Presto, Apache Druid/Clickhouse, and Python libraries.
To close the cycle by comparing the data lakehouse to a data warehouse , we can say: A lakehouse is more open (open-formats) and more difficult as more DIY and patching different tools together, supporting more ML/DS/AI use cases whereas a data warehouse is more closed (mostly closed-source), build for BI, fully managed, and more expensive to scale.
📝 The term "data lakehouse" was initially described by Jeremy Engle on these slides in July 2017. The big push came later when Databricks published their whitepaper CIDR in 2021. Fun fact: they call it "lakehouse" without the data. I also see some differences between then and now. The initial data lakehouse is more related to data warehouse than today, with the Data Lake Table Format having database features on top of distributed files differently.
Components of a Data Lake There are three major components of a data lake that we are going to discuss here. First is the layer where data is stored physically. Next, we have a data lake file format that mainly compresses the data for either row or column-oriented writing or querying. Lastly, the data lake table formats sit on top of these file formats to provide robust features.
ℹ️ Evolution of Data Lakes: A brief history of data lake and its evolution: 1. Hadoop & Hive : A First-Generation data lake table format with MapReduce . Already enabled SQL expressions.2. AWS S3 : The Next Generation of a simple data lake storage. No function but immensely less maintenance and an excellent programmatic API interface3. Data Lake File Format: Suitable file formats for the cloud that have column-oriented, well-compressed, and optimized for Analytics. File formats such as Apache Parquet, ORC, and Apache Avro .4. Data Lake Table Format: Delta Lake, Apache Iceberg, and Hudi with full-fledged database-like features. Storage Layer / Object Store (AWS S3, Azure Blob Storage, Google Cloud Storage) Starting with the storage layer, we have the object storage services from the three big cloud providers, AWS S3, Azure Blob Storage, and Google Cloud Storage. The web user interface is easy to use. Its features are very basic, where, in fact, these object stores store distributed files exceptionally well. They are also highly configurable, with solid security and reliability built-in.
As a successor of Hadoop, they are well suited for unstructured and semi-structured data in the cloud. AWS S3 is the de facto standard for uploading files in any format to the cloud.
Data Lake File Formats (Apache Parquet, Avro, ORC) Data lake file formats are the new CSVs on the cloud. They are more column-oriented and compress large files with added features. The main players here are Apache Parquet, Apache Avro, and Apache Arrow. It’s the physical store with the actual files distributed around different buckets on your storage layer.
Data lake file format helps store data, sharing and exchanging data between systems and processing frameworks. These file formats have additional features such as split ability and schema evolution. These are a team and programming language agnostic.

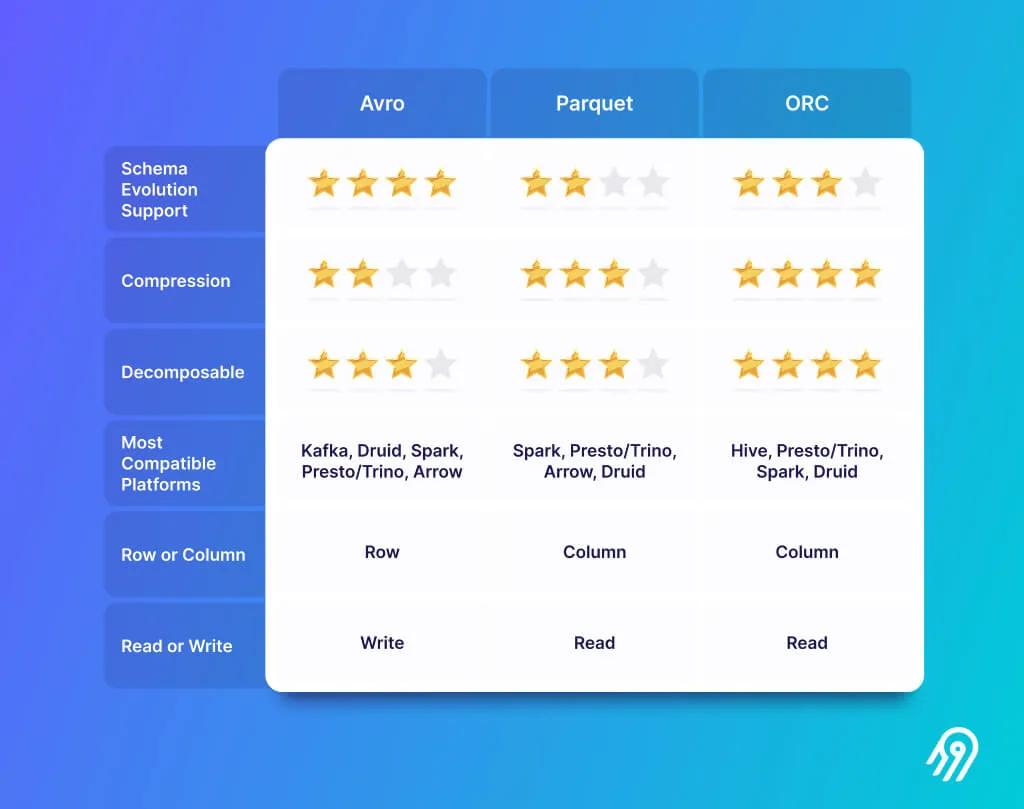

Comparison of Data Lake File Formats (Inspired by Nexla: Introduction to Big Data Formats) When choosing which data lake file format is up to you, Apache Parquet seems to have the momentum. Avro is great as it has a sophisticated schema description language to describe the data structure and supports Schema Evolution. But let's check switch one layer above and see which data lake table formats use which file formats.
📝 Schema Evolution is less critical as data lake table formats in the next chapter also support these.
Data Lake Table Formats Data lake table formats are very attractive as they are the database on data lakes. Same as a table, one data lake table format bundles distributed files into one table that is otherwise hard to manage . You can think of it as an abstraction layer between your physical data files and how they are structured to form a table.
Imagine inserting into hundreds of files at once. They are the key and usual relay on one of the above, open-source data lake file formats that optimize columnar storage and are highly compressed. Data lake table formats allow you to efficiently query your data directly out of your data lake. No initial transformation is needed.
The data lake table formats are the engine of the data lake file format. The file formats are good at storing big data in a compressed way and returning it for column-oriented analytical queries. But they lack additional features such as ACID transactions and support of standard ANSI SQL on a table everyone knows and loves from relational databases. With data lake table formats and its open-source solutions, we get these wanted basic features precisely, but also much more, as seen in the next chapter.
ℹ️ Question: Ask before adopting a data lake table format
Features of a Data Lake Table Formats How to add database features to S3 with data lake table format features that all three significant Formats are sharing. As well, the feature help, for example, to follow the GDPR policies, track, and audit, plus delete requested deletion.
Why are all these features essential ? Imagine you need to store your analytics data on S3 in parquet files. You'd need to cluster all files, keep a record of schemata, read and update all files simultaneously, find a way to backup and roll back in case you made a mistake, write heavy functions that mimic updates or delete statements, and so on. You see where I'm going with this. These are the start of why these data lake table formats started to emerge. Because everyone needed them and created a standard, they were published as open-source.
DML and SQL Support: Select, Inserts, Upserts, Deletes
Providing merge, update, and delete directly on your distributed files. Some also support Scala/Java and Python APIs in addition to SQL.
Backward compatible with Schema Evolution and Enforcement
Automatic Schema Evolution is a crucial feature in data lake table formats as changing formats is still a pain in today's data engineer work. Schema Evolution means adding new columns without breaking anything or even enlarging some types. You can even rename or reorder columns, although that might break backward compatibilities. Still, we can change one table, and the table format takes care of switching it on all distributed files . Best of all does not require e rewrite of your table and underlying files.
ACID Transactions, Rollback, Concurrency Control
An ACID Transaction secures that either all changes are successfully committed or rollbacked. It makes sure you never end in an inconsistent state. There is different concurrency control that, for example, guarantees consistency between reads and writes. Each data lake table format has other implementations and features here. Read more on the respective table format.
Time Travel, Audit History with Transaction Log and Rollback
With time travel , the data lake table format versions the big data you store in your data lake. You can access any historical version of that data, simplifying data management with easy-to-audit, rollback data in case of accidental bad writes or deletes, and reproduce experiments and reports. Time travel enables reproducible queries as you can query two different versions simultaneously.
All the versions being snapshotted with a time travel feature it simplifies implementing otherwise complex methodologies such as Slowly Changing Dimension (Type 2). You can even extract changes as you usually do with Change Data Capture (CDC) (if you do it often enough not to lose the intermediate modifications).
The transaction log creates a single folder called `_delta_log` .
Scalable metadata handling: These tables handle large amounts and many files and their metadata at scale by automatically checkpointing and summarizing them.
Partitioning
Partitioning and Partitioning Evolution handle tedious and error-prone tasks of producing partition values for rows in a table and automatically skips unnecessary partitions and files. No extra filters are needed for fast queries, and the table layout can be updated as data changes.
File Sizing, Data Clustering with Compaction
Data can be compacted with OPTIMIZE in Delta Lake and deletion of the old version by setting a retention date with VACUUM (other data lake table formats have similar functions). The data compaction is supported out-of-the-box, and you can choose from different rewrite strategies, such as bin-packing or sorting, to optimize file layout and size. Optimize is especially effective in solving the small-file problem where you ingest tiny files over time, but querying thousands of small files is slow. Optimization can refragment the files into bigger ones, which boosts performance in many ways.
Unified batch and streaming source and sink
Unified batch and streaming mean the Lambda Architecture is obsolete. No need to differentiate your data architecture in batch and streaming—they end both in the same tables with less complexity and more speed.
It does not matter if you're reading from a stream or batch. Out-of-the-box MERGE statements are suitable for streaming cases where changes apply to distributed files. These data lake table formats support both a single API and target sink. You can see that well explained at Beyond Lambda: Introducing Delta Architecture or with some code examples .
Data Sharing
A new exciting and needed feature to minimize data duplications is data sharing . In the Delta world, it's called Delta Sharing . Snowflake announced that they would also have this feature in the Iceberg tables. These are proprietary features inside Databricks and Snowflake, as I understand.
Although, the open-source Delta Sharing Protocol for secure data sharing makes it simple to share data with other organizations regardless of which computing platforms they use.
Change Data Feed (CDF)
Change Data Feed (CDF) feature allows tables to track row-level changes between versions of a table. When enabled, the runtime records "change events" for all the data written into the table. CDF includes the row data and metadata indicating whether the specified row was inserted, deleted, or updated. Super helpful to set up CDC .
Data Lake Table Formats (Delta, Iceberg, Hudi) Now we have the most notable features of open-source data lake table formats, let's check the three most prominent products mentioned already a couple of times: Delta Lake, Apache Iceberg, and Apache Hudi.

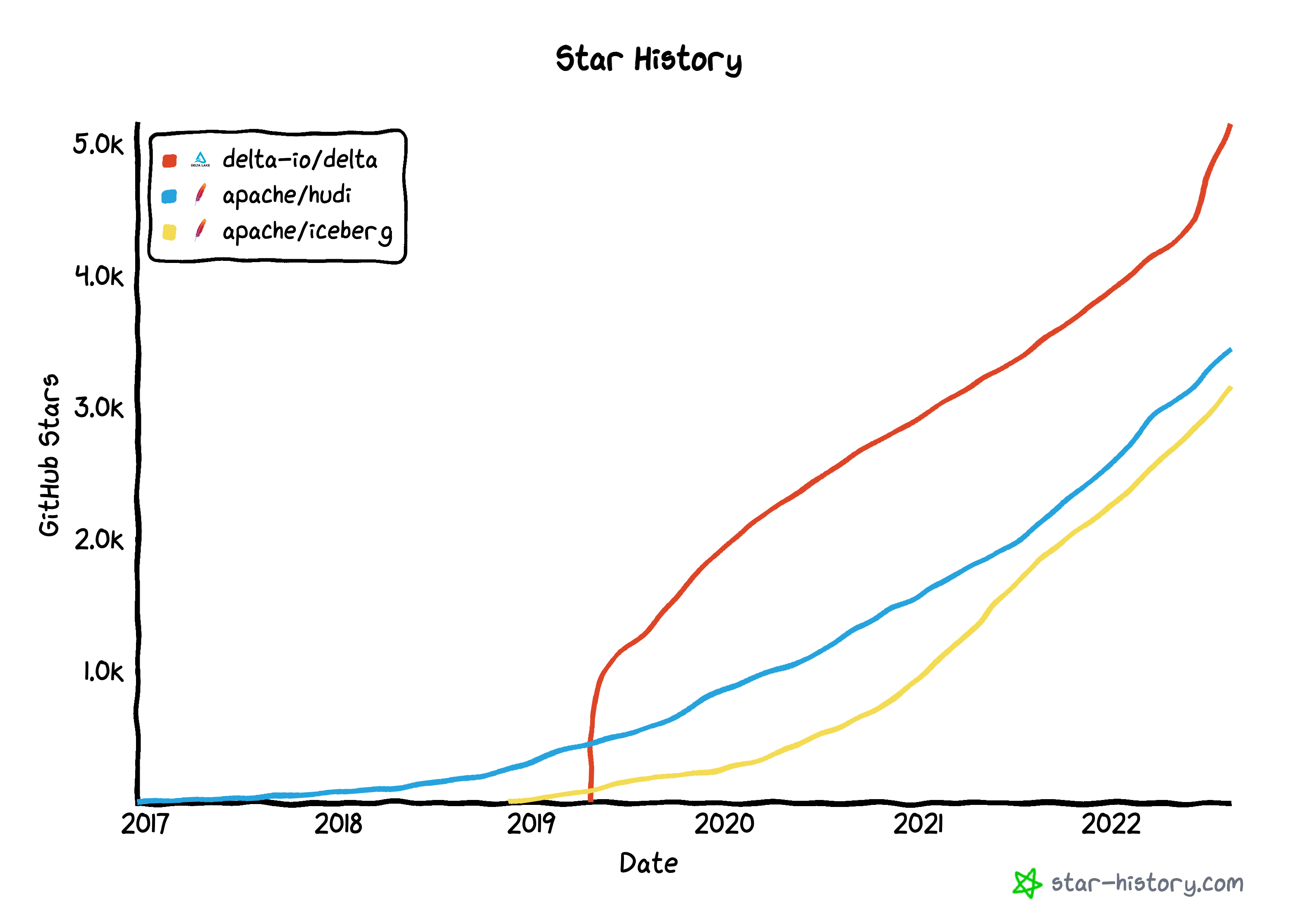

GitHub Stars evolution on GitHub Star History
Delta Lake
Delta Lake is an open-source project created by Databricks and kindly open-sourced with its first public GitHub Commit on 2019-04-22. Recently announced Delta Lake 2.0 .
🤹🏼 Example of Creating a Table in Delta Lake with Spark SQL
Apache Iceberg
Apache Iceberg was initially developed at Netflix to solve long-standing issues using huge, petabyte-scale tables. It was open-sourced in 2018 as an Apache Incubator project and graduated from the incubator on the 19th of May 2020. Their first public commit was 2017-12-19—more insights about the story on A Short Introduction to Apache Iceberg .
🤹🏼 Example of Creating a Table in Apache Iceberg with Spark SQL
Apache Hudi
Apache Hudi was originally developed at Uber in 2016 (code-named and pronounced "Hoodie"), open-sourced end of 2016 (first commit in 2016-12-16), and submitted to the Apache Incubator in January 2019. More about the back story on The Apache Software Foundation Announces Apache® Hudi™ as a Top-Level Project .
🤹🏼 Example of Creating a Table in Apache Hudi with Spark SQL
