PyAirbyte Demo

Below is a pre-release demo of PyAirbyte.

Install PyAirbyte

# Add virtual environment support for running in Google Colab
!apt-get install -qq python3.10-venv

# Install PyAirbyte
%pip install --quiet airbyte

Locating your Data Source

To see what data sources are available, you can check our docs or run the following:

# Import PyAirbyte
import airbyte as ab

# Show all available connectors
ab.get_available_connectors()

Load the Source Data using PyAirbyte

Create and install a source connector:

import airbyte as ab

# Create and install the source:
source: ab.Source = ab.get_source("source-faker")
Installing 'source-faker' into virtual environment '/content/.venv-source-faker'.
Running 'pip install airbyte-source-faker'...
Connector 'source-faker' installed successfully!
For more information, see the source-faker documentation:
https://docs.airbyte.com/integrations/sources/faker#reference
# Configure the source
source.set_config(
config={
"count": 50_000, # Adjust this to get a larger or smaller dataset
"seed": 123,
},
)
# Verify the config and creds by running `check`:
source.check()
Connection check succeeded for `source-faker`.

Read Data from the PyAirbyte Cache

Once data is read, we can do anything we want to with the resulting streams. This includes to_pandas() which registers a Pandas dataframe and to_sql_table() which gives us a SQLAlchemy Table boject, which we can use to run SQL queries.

# Select all of the source's streams and read data into the internal cache:
source.select_all_streams()
read_result: ab.ReadResult = source.read()

Read Progress

Started reading at 20:10:41.

Read 100,100 records over 1min 17s (1,300.0 records / second).

Wrote 100,100 records over 11 batches.

Finished reading at 20:11:59.

Started finalizing streams at 20:11:59.

Finalized 11 batches over 1 seconds.

Completed 3 out of 3 streams:

  • users
  • purchases
  • products

Completed writing at 20:12:01. Total time elapsed: 1min 19s

Completed `source-faker` read operation at 20:12:01.

# Display or transform the loaded data
products_df = read_result["products"].to_pandas()
display(products_df)
	id	make	model	year	price	created_at	updated_at
0 1 Mazda MX-5 2008 2869.0 2022-02-01 17:02:19 2024-02-12 20:10:42
1 2 Mercedes-Benz C-Class 2009 42397.0 2021-01-25 14:31:33 2024-02-12 20:10:42
2 3 Honda Accord Crosstour 2011 63293.0 2021-02-11 05:36:03 2024-02-12 20:10:42
3 4 GMC Jimmy 1998 34079.0 2022-01-24 03:00:03 2024-02-12 20:10:42
4 5 Infiniti FX 2004 17036.0 2021-10-02 03:55:44 2024-02-12 20:10:42
... ... ... ... ... ... ... ...
95 96 BMW 330 2006 14494.0 2021-09-17 20:52:48 2024-02-12 20:10:42
96 97 Audi R8 2008 17642.0 2021-09-21 11:56:24 2024-02-12 20:10:42
97 98 Cadillac CTS-V 2007 19914.0 2021-09-02 15:38:46 2024-02-12 20:10:42
98 99 GMC 1500 Club Coupe 1997 82288.0 2021-04-20 18:58:15 2024-02-12 20:10:42
99 100 Buick Somerset 1986 64148.0 2021-06-10 19:07:38 2024-02-12 20:10:42
100 rows × 7 columns

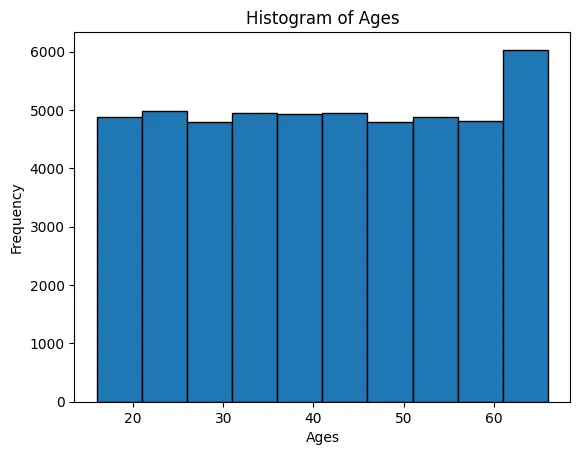

Creating graphs

PyAirbyte integrates with Pandas, which integrates with matplotlib as well as many other popular libraries. We can use this as a means of quickly creating graphs.

%pip install matplotlib

import matplotlib.pyplot as plt

users_df = read_result["users"].to_pandas()

plt.hist(users_df["age"], bins=10, edgecolor="black")
plt.title("Histogram of Ages")
plt.xlabel("Ages")
plt.ylabel("Frequency")
plt.show()
Requirement already satisfied: matplotlib in /usr/local/lib/python3.10/dist-packages (3.7.1)
Requirement already satisfied: contourpy>=1.0.1 in /usr/local/lib/python3.10/dist-packages (from matplotlib) (1.2.0)
Requirement already satisfied: cycler>=0.10 in /usr/local/lib/python3.10/dist-packages (from matplotlib) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in /usr/local/lib/python3.10/dist-packages (from matplotlib) (4.48.1)
Requirement already satisfied: kiwisolver>=1.0.1 in /usr/local/lib/python3.10/dist-packages (from matplotlib) (1.4.5)
Requirement already satisfied: numpy>=1.20 in /usr/local/lib/python3.10/dist-packages (from matplotlib) (1.23.5)
Requirement already satisfied: packaging>=20.0 in /usr/local/lib/python3.10/dist-packages (from matplotlib) (23.2)
Requirement already satisfied: pillow>=6.2.0 in /usr/local/lib/python3.10/dist-packages (from matplotlib) (9.4.0)
Requirement already satisfied: pyparsing>=2.3.1 in /usr/local/lib/python3.10/dist-packages (from matplotlib) (3.1.1)
Requirement already satisfied: python-dateutil>=2.7 in /usr/local/lib/python3.10/dist-packages (from matplotlib) (2.8.2)
Requirement already satisfied: six>=1.5 in /usr/local/lib/python3.10/dist-packages (from python-dateutil>=2.7->matplotlib) (1.16.0)
/usr/local/lib/python3.10/dist-packages/duckdb_engine/__init__.py:178: DuckDBEngineWarning: duckdb-engine doesn't yet support reflection on indices
warnings.warn(

Working in SQL

Since data is cached in a local DuckDB database, we can query the data with SQL.

We can do this in multiple ways. One way is to use the JupySQL Extension, which we'll use below.

# Install JupySQL to enable SQL cell magics
%pip install --quiet jupysql
# Load JupySQL extension
%load_ext sql
# Configure max row limit (optional)
%config SqlMagic.displaylimit = 200
 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 0.0/95.7 kB ? eta -:--:--
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╸━ 92.2/95.7 kB 2.9 MB/s eta 0:00:01
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 95.7/95.7 kB 2.3 MB/s eta 0:00:00
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 250.9/250.9 kB 13.9 MB/s eta 0:00:00
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 193.0/193.0 kB 20.5 MB/s eta 0:00:00
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 41.1/41.1 kB 5.2 MB/s eta 0:00:00
Deploy Panel apps for free on Ploomber Cloud! Learn more: https://ploomber.io/s/signup
# Get the SQLAlchemy 'engine' object for the cache
engine = read_result.cache.get_sql_engine()
# Pass the engine to JupySQL
%sql engine
# Get table objects for the 'users' and 'purchases' streams
users_table = read_result.cache["users"].to_sql_table()
purchases_table = read_result.cache["purchases"].to_sql_table()
display([users_table.fullname, purchases_table.fullname])

['main.users', 'main.purchases']

%%sql
# Show most recent purchases by purchase date:
SELECT users.id, users.name, purchases.product_id, purchases.purchased_at
FROM {{ users_table.fullname }} AS users
JOIN {{ purchases_table.fullname }} AS purchases
ON users.id = purchases.user_id
ORDER BY purchases.purchased_at DESC
LIMIT 10

Running query in 'duckdb:///.cache/default_cache_db.duckdb'

id	name	product_id	purchased_at
21589 Torie 48 2024-12-10 20:32:08
39842 Kareen 45 2024-11-28 11:26:13
19248 Jerry 41 2024-11-05 00:59:42
30780 Dwana 82 2024-10-20 20:09:11
4669 Frankie 100 2024-10-15 16:23:02
42204 Lashaun 9 2024-10-06 08:06:59
13251 Charlie 46 2024-09-19 17:55:52
47798 Issac 40 2024-09-13 05:13:17
34970 Eleni 39 2024-09-13 00:15:55
24782 Jose 40 2024-09-08 09:49:06
# Show tables for the other streams
%sqlcmd tables
Name
products
purchases
users
_PyAirbyte_state
_PyAirbyte_streams
