Securing Data Pipelines in Hybrid Environments After Exchange CVE-2025-53786
Hybrid data pipeline security lessons from Exchange CVE-2025-53786. Isolate service identities, vault secrets, keep tamper-evident audit evidence.
Hybrid pipeline security is an identity problem before it is a network problem. Segmentation and egress rules are the visible half of the work. They do not touch the credential that spans both environments, which is the half an attacker uses.
Exchange CVE-2025-53786 made that concrete. An attacker with on-premises Exchange admin access could escalate into the connected Microsoft 365 tenant because both sides trusted the same identity.
This piece walks through the same shared-identity pattern in hybrid data pipelines, the four weak points that recur across deployments, and the architecture and controls for identity, secrets, network paths, and audit evidence that contain them.
TL;DR
- Shared identity across environments turns an on-premises compromise into a cloud one, so isolate service identities per environment, region, and workload
- Short-lived workload identity beats a stored credential, though legacy and disconnected systems still need the narrowly scoped vaulted version with compensating monitoring
- Segmented pipeline networks and outbound-only control connections contain a blast radius that flat hybrid designs leave wide open
- Local execution is worth the overhead only where jurisdiction or plaintext processing requires it
- Treat evidence as a control, centralizing tamper-evident logs and setting retention from each applicable rule rather than one blanket period
What Can You Learn from the Exchange CVE-2025-53786 Incident?
The incident shows a shared identity turning an on-premises compromise into a cloud privilege-escalation path. If you run Exchange in hybrid mode, your legacy deployment may rely on a shared first-party service principal for delegation between on-premises Exchange Server and Exchange Online. The federal vulnerability record published as CVE-2025-53786 describes how fragile that arrangement is.

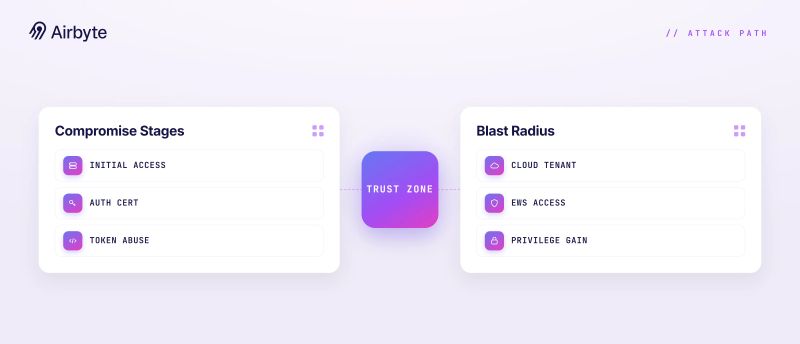

Legacy Shared Trust Creates an Escalation Path
The legacy Hybrid Configuration Wizard uploaded the Exchange Auth Certificate to the shared service principal's keyCredentials. That upload lets an attacker who already controls your on-premises server impersonate trusted services and users. The attack path unfolds in four stages, and each one shows a trusted identity carrying a compromise across your hybrid boundary:
- Initial compromise: an attacker gains Exchange administrator access on the on-premises server through another vulnerability or credential theft
- Shared trust abuse: the attacker reaches the Auth Certificate associated with the legacy shared first-party service principal
- Token impersonation: the attacker uses the trusted certificate relationship to impersonate cloud identities without a normal user authentication flow
- Privilege escalation: the attacker reaches resources in the connected Microsoft 365 tenant without leaving an easily detectable trace
After the first stage, nothing in that chain requires a novel exploit. The escalation is a property of how the environments were joined.
Federal Direction Requires Remediation
The U.S. Cybersecurity and Infrastructure Security Agency published a federal emergency directive as ED 25-02 in August 2025. It required Federal Civilian Executive Branch agencies to remediate or disconnect affected servers by its original deadline. That deadline has passed and the directive remains in effect. Microsoft now permanently blocks Exchange Web Services (EWS) access through the legacy shared service principal and directs you to the dedicated Exchange hybrid application.
Service Principal Clean-Up Removes Shared Credentials
After installing the applicable Exchange security update and following Microsoft's dedicated hybrid application procedure, Service Principal Clean-Up Mode removes certificates from the first-party service principal's keyCredentials. The following command resets those credentials:
<pre><code>.\ConfigureExchangeHybridApplication.ps1 -ResetFirstPartyServicePrincipalKeyCredentials</code></pre>Once the shared credential is gone, the same tradeoff between federated identity and vaulted credentials shapes every boundary your data pipelines cross.
Where Are Your Data Pipelines Most Vulnerable in Hybrid Environments?
Your hybrid data pipelines span the boundary between on-premises and cloud systems. Four weak points recur there. Shared identities, static credentials, flat networks, and fragmented logs each open a different route in.
Related Weakness Pattern
CVE-2025-6505 exposed a different authentication weakness in the same category of tool. The Linux server accepted OAuth client credentials from both HTTP headers and request parameters. That let attackers combine credentials from different sources for client impersonation. Flat networks amplify the flaw, and siloed logging makes the abuse harder to spot.
Sector-Specific Weakness Pattern
Stolen connector passwords expose Protected Health Information in healthcare. Flat networks let intruders pivot from trading systems to customer databases in finance. Missing audit trails hide intellectual property tampering in manufacturing. Match the control to the environment it runs in.
Cloud-native workloads can often use short-lived federated identities, while legacy or operational technology (OT) systems may require narrowly scoped static credentials, network isolation, and frequent rotation.
The table below names each weak point and what it costs you when it is exploited.
The first row deserves the most attention, because identity carries a compromise across a boundary the other three only widen. The rest of this piece starts with the architecture that gives every control a home, then works through each weak point in the order the table lists them.
How Can You Architect Secure Data Pipelines in Hybrid Environments?
Treat architecture as a boundary-drawing exercise. Design tightly scoped zones that communicate only through approved identities, protocols, and destinations. Let workload connectivity, operational capacity, and regulatory requirements decide where the lines fall.

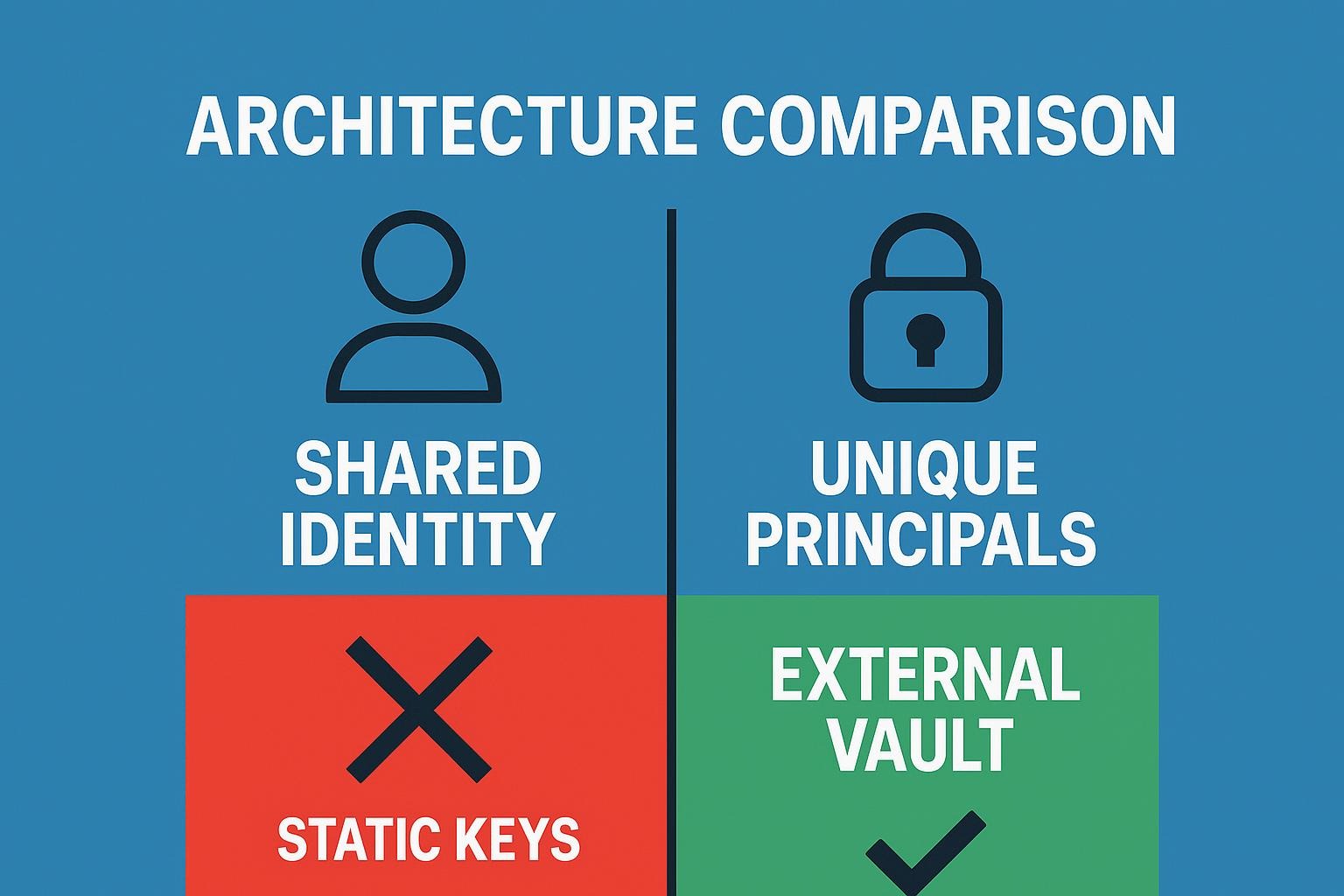

Enforce Unique Service Principals per Region or Workload
Assign distinct identities to each pipeline slice so one compromise does not automatically grant access elsewhere. For federated identities, validate issuer, subject, audience, and requested scope. Bind each identity to a single workload where practical. Federation removes stored credentials but makes your issuer or token broker a runtime dependency. Disconnected systems may instead require unique, narrowly scoped service accounts whose credentials you vault and rotate.
Choose Workload Identity or an External Vault
Where a workload can attest to its own identity, short-lived federated tokens beat hard-coded credentials because nothing durable sits on disk for an attacker to find. Database passwords, third-party application programming interfaces (APIs), and legacy applications that cannot attest still need an external vault. The comparison below shows how the two options match different constraints.
Segment Your Environments by Sensitivity and Jurisdiction
Start by separating production from non-production, then isolate regulated workloads according to their assessed transfer and access requirements. Those assessments decide where execution happens. Local execution is worth the overhead once a provider would otherwise process plaintext in an unapproved jurisdiction, and disconnected OT constraints can settle it earlier still. Granularity is the call that follows. Coarse zone-and-conduit segmentation fits safety-critical or legacy OT environments, and micro-segmentation fits situations where east-west containment justifies the added complexity.

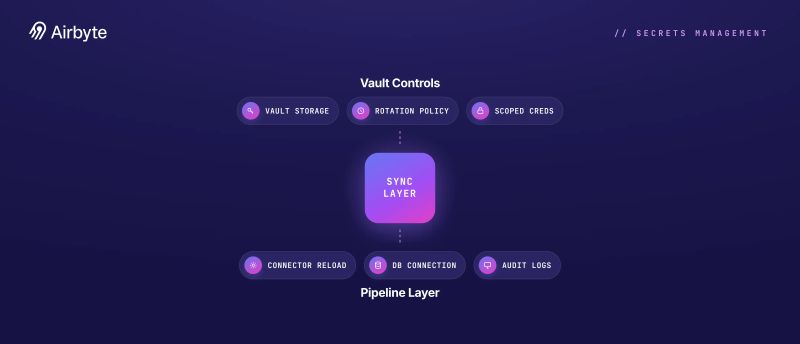

How Can External Secrets Management Prevent Credential Exposure?
External secrets management keeps your passwords, API keys, and certificates in a vault you control, out of pipeline code and environment files. Tools such as HashiCorp Vault and AWS Secrets Manager store, rotate, and audit secrets centrally, protecting them from accidental leaks and repository bloat.
Kubernetes-native options like the External Secrets Operator inject secrets into clusters by syncing with those stores. Runtime injection means a compromised source repository no longer reveals the credentials that grant database or SaaS access, centralized rotation limits how long any one of them stays useful, and audit trails record retrievals for your audits.
Refresh Intervals Must Beat Credential Lifetime
The manifest below uses the generally available external-secrets.io/v1 API, refreshes values from Vault every hour, and lets the operator own the generated Kubernetes Secret. Adapt the store and secret names to your environment:
<pre><code>apiVersion: external-secrets.io/v1
kind: ExternalSecret
metadata:
name: ehr-database
namespace: data-pipeline
spec:
refreshPolicy: Periodic
refreshInterval: 1h
secretStoreRef:
name: vault-backend
kind: SecretStore
target:
name: ehr-database
creationPolicy: Owner
deletionPolicy: Retain
data:
- secretKey: username
remoteRef:
key: database/creds/ehr
property: username
- secretKey: password
remoteRef:
key: database/creds/ehr
property: password</code></pre>Your refresh interval must be shorter than the provider credential's useful lifetime while leaving room for propagation. Rotation schedules also have to account for application reload behavior and pooled sessions. An already-authenticated session can outlive the password expiry meant to end it, so verify that updated values actually reach running workloads and set a reload cycle that stops connectors caching credentials indefinitely.
Runtime Retrieval Keeps Regulated Data Local
Consider a healthcare workload whose control plane stays in the cloud while the data plane and its PostgreSQL electronic health record (EHR) connection run on-premises. Referencing the ExternalSecret above, the connector retrieves credentials from the generated Kubernetes Secret when a sync starts, and Vault records the retrieval.
The arrangement keeps Protected Health Information local and supports HIPAA audit controls. It holds only where Vault leases, operator refresh timing, application reload behavior, and database connection-pool lifetimes line up.
A self-hosted vault stays defensible for multi-cloud estates, legacy databases, and disconnected OT systems, at the cost of an operational dependency you then have to protect.
Which Network Patterns Fit Your Environment?
Once identities and secrets are in place, the network path they run on decides how much a compromise can reach. Outbound-only flows are the base pattern. When the data plane initiates the connection to a cloud control plane, you avoid opening general inbound listener ports. Configure the surrounding controls in four groups:
- Egress rules: narrowly maintained transport layer security (TLS) encrypted destination allow-lists, kept current as provider endpoints change
- Keepalives: intervals set below the smallest network address translation (NAT), load balancer, or private-link idle timeout in the path
- TLS inspection: bypass where it breaks mutual TLS or certificate pinning, and offset with metadata and behavioral monitoring
- Connection planning: long-lived tunnels sized for peak batch load rather than repeated short-lived handshakes
Connectivity and operating model decide which pattern fits, as the comparison below shows.
No pattern removes operational risk, and the bottom two rows trade simplicity for containment you may later want back. Document each dependency, trust boundary, and failure condition before deployment, then test the controls against your actual route.
Why Do Audit Logs and Immutable Evidence Decide Your Compliance Position?
You cannot prove security without proof of what happened. Each extract, load, or credential check hops between on-premises servers and cloud services, and every hop has to leave a tamper-evident trace. Separate log silos produce incomplete timelines that slow incident response.
Durable Collection Preserves the Evidence Path
Start with centralized aggregation that pulls on-premises and cloud telemetry into one pipeline. Normalize timestamps, actor identities, resource IDs, credential changes, and API activity so events join. In disconnected networks, durable local buffering keeps evidence intact through outages, so configure persistent collection queues where a lost connection would otherwise discard records.
Write-once-read-many storage protects what you retain. A locked retention policy cannot be shortened, and some services block deletion of a bucket while protected objects sit inside it. Alert on privilege changes, credential changes, logging-agent failures, and buffer exhaustion together. A collection path that goes down quietly leaves you blind during the window you will later need.
Retention Follows Each Applicable Rule
HIPAA requires mechanisms that record and examine activity in systems containing electronic protected health information (ePHI) but attaches no retention period to those logs.
PCI DSS v4.0.1 requires at least 12 months of audit history, with the most recent 3 months immediately available. DORA, in active enforcement, requires organizations to define retention from business, security, and information and communications technology (ICT) risk objectives.
Manufacturing meets the same expectation under the 2022 revision of ISO 27001, which asks for evidence of operational activity and change control. Shop-floor OT networks with no log export path are the hardest place to produce it. Region-aware retention policies then join access controls, encryption, integrity validation, collection monitoring, and documented deletion procedures to complete the control set.
How Does Airbyte Flex Support Secure Hybrid Deployment?
Airbyte operates the control plane while the data plane, along with your records, credentials, keys, and compute, runs in your environment. Some metadata such as cursor and primary-key values sits in the control plane. Orchestration, UI, and connector catalogs stay on the Airbyte side, which keeps execution close to your infrastructure while 700+ connectors remain available through one cloud interface.
Each data plane can carry its own service identity and secrets, which confines identity access to that environment. That is the failure the Exchange service principal illustrates. Traffic originates from the data plane, so the control plane needs no inbound connection, matching the hybrid security guidance for outbound-only designs. The same replicated records are what an in-boundary retrieval stack indexes, so agent reads inherit the boundary and access controls the pipeline already enforces.
An integrated external vault lets connectors fetch secrets at runtime, providers and applications rotate them under their own constraints, and central logs record the activity. You still configure secret refresh, connector reload behavior, tunnel keepalives, and egress rules yourself. The control plane split gives you three outcomes worth naming:
- Outbound-only networking: avoids exposing general inbound listener ports, once you manage egress destinations and idle timeouts
- External secrets management: reduces credential reuse and supports rotation for systems that cannot use workload identity
- Local execution with centralized observability: produces granular operational logs and leaves you deciding where pipeline processing occurs
Together, these outcomes let you honor the same identity, network, and evidence boundaries the rest of this piece has argued for, without rebuilding them from scratch for every pipeline.
What Will You Fix Before the Next Pipeline Ships?
The Exchange incident describes two environments sharing one identity while nobody owned the boundary between them. Hybrid pipelines arrive at the same arrangement quietly, usually at the moment a service account gets reused because it already works. Naming every identity, network path, secret, and audit trail before a pipeline reaches production keeps the arrangement deliberate.
The platform choice follows from it, because a pipeline can only honor boundaries the tool knows how to draw. Airbyte covers connector breadth across databases, APIs, and SaaS sources, change data capture (CDC) replication, and governance controls including role-based access and audit logging. Airbyte Flex applies where local execution and separated data-plane identities are a hard requirement of your jurisdiction or your network.
Get a demo to walk through how a hybrid deployment would map onto your own trust boundaries.
Frequently Asked Questions
What Makes CVE-2025-53786 Different from Other Exchange Vulnerabilities?
It targets the trust relationship between on-premises Exchange Server and Exchange Online in legacy hybrid deployments, so the weakness lives in how the two sides were joined. Scope follows deployment history, since only organizations that ran the legacy Hybrid Configuration Wizard carry the uploaded certificate, which is why an inventory step precedes remediation. Rich coexistence features such as Free/Busy, MailTips, and profile picture sharing now depend on that dedicated application.
How Can You Identify Shared Service Principals in Your Pipelines?
Check whether your on-premises and cloud connectors authenticate with the same service account, OAuth application, certificate, or API key, then review your identity provider for principals whose permissions span both environments. For federated credentials, inspect issuer, audience, subject, and scope mappings. One identity that reaches both an on-premises database and a cloud warehouse without separate policy boundaries needs splitting or scoping down.
Can You Use External Secrets Management with Legacy On-Premises Systems?
Yes, and the vault itself can sit behind your firewall so systems without outbound cloud access can still reach it. For systems that cannot reach an identity provider or secret service during operation, a locally stored static credential works if it is narrowly scoped, encrypted, monitored, and rotated when connectivity permits, though replay stays possible while the credential is valid.
What Is the Performance Impact of Outbound-Only Network Flows?
There is no universal latency figure, because tunnel overhead depends on WAN round-trip time, relay placement, TLS handshakes, transport protocol, congestion, and flow-control settings. Long-lived tunnels reduce repeated setup costs, but HTTP/2 flow-control windows or head-of-line blocking can cap steady-state throughput. Test the actual route under peak batch load and budget from what you measure.
