What is Data Federation: Purpose, Tools, & Examples

•

July 29, 2024

•

20 min read

Your business information might be scattered across various systems, such as customer databases, sales platforms, and inventory management systems. This fragmented data creates data silos, making it extremely challenging to gain a unified view of your business operations, hindering decision-making and analysis.

Data federation offers a significant solution to this problem, enabling you to access and analyze your data without physically moving it. In this article, you will explore how data federation can assist you in overcoming silos and harnessing the value of your data assets.

What is a Data Federation?

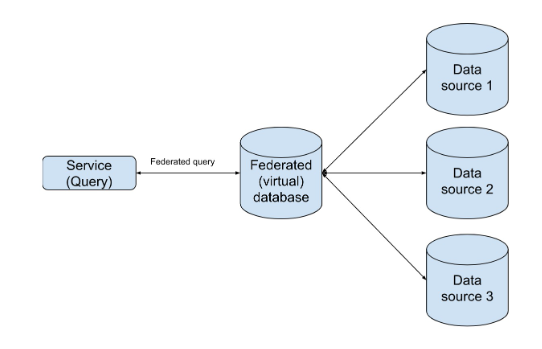

Data federation is a data integration approach that allows you to query data from multiple disparate sources through a unified interface. Instead of physically migrating the data into a central repository, the data federation creates a virtual layer that abstracts the underlying data sources.

This virtual layer enables seamless access to data from different systems without the need for data replication. Data federation is particularly beneficial in scenarios where diverse data sources need to be analyzed in real-time without the overhead of extensive data consolidation.

What are the Benefits of the Data Federation?

Let's delve into the key benefits of data federation:

Improved Data Accessibility

Data federation significantly enhances your ability to utilize data from multiple sources. With a federated system, you can query and analyze data from various databases and applications as if they were a single entity. Therefore, you can access all your data through a single interface, saving time and reducing the complexity of data retrieval processes.

Reduced Data Movement and Storage

Data federation allows you to access data directly from the source systems as required, reducing the data movement and duplicate copies. Since data federation does not require storing copies of all data in a central location, it significantly minimizes the storage space needed.

Enhanced Data Governance and Security

Maintaining data in its original sources allows you to easily enforce access controls and security policies specific to each data repository. This granular control enables you to ensure that sensitive information remains protected while still making it accessible to authorized users through the federated system.

Allows Easy Integration of New Data Sources

As your organization grows and acquires new data sources, data federation allows you to seamlessly integrate them with your data ecosystem without affecting the existing data workflows. You can seamlessly add new sources to the federation layer, and data becomes immediately accessible alongside existing sources through the unified interface.

Reduces Infrastructure Costs for Data Consolidation

Traditional data integration approaches often require significant investments in data lakes and other centralized data storage solutions. On the other hand, data federation allows you to avoid these costly infrastructure requirements by residing data in its original location. This can result in substantial cost savings, as you don't need to maintain additional storage and computing resources.

Provides Access to the Most Up-to-date Data

As the data remains in its source systems, you can directly access the latest information without delays or potential data synchronization issues. This ensures that you work with the most current and accurate data available, enabling better decision-making and analysis.

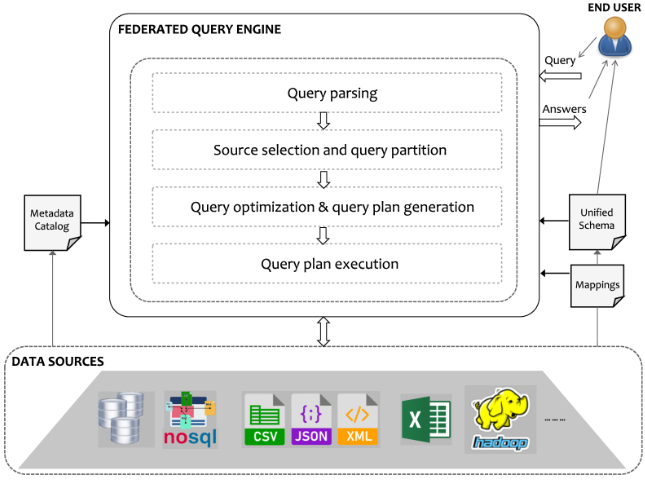

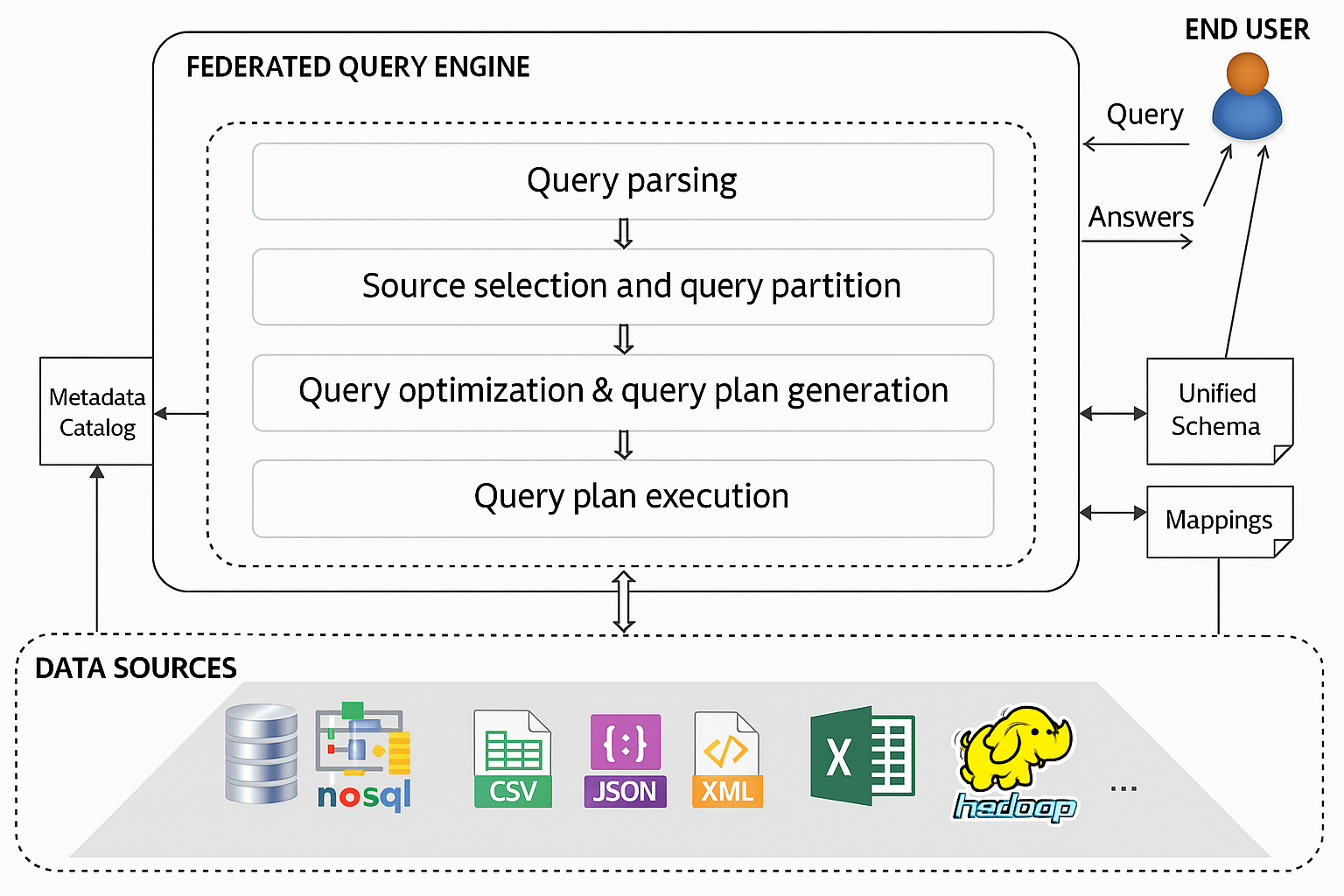

Architecture of Data Federation Systems

Let’s understand the architecture of a typical data federation system:

Federation Engine

The federation engine is the central component of the system. It is responsible for receiving user queries and coordinating their execution across multiple data sources. The engine maps the disparate data models and schemas of the underlying sources into a single, logical data model that the end user can query.

Data Source Connectors

Data source connectors enable the federation engine to communicate with various data sources, such as databases, spreadsheets, XML files, and JSON files. These sources provide the raw data that you can query and retrieve.

Metadata Repository

A metadata repository refers to a database that stores metadata—data about the data. This includes information about the structure, relationships, and schemas of the underlying data sources. The metadata repository aids the federation engine by providing essential details to parse, plan, and optimize queries correctly.

Query Optimizer

The query optimizer is responsible for enhancing the efficiency of query processing. Once a query is parsed and broken down, the optimizer finds the most efficient way to execute it. This involves partitioning the query into subqueries and creating an optimal query execution plan that minimizes response time and resource usage.

Types Of Data Federation

Let's explore the different types of data federation in detail:

Homogeneous Federation

In a homogeneous federation, you deal with data sources that share the same data model and the database management system (DBMS). This type of federation makes it easier to integrate and query data because all sources share similar characteristics.

You don't need to worry about converting between different data formats or query languages. This uniformity makes homogeneous federations simpler to implement and typically more efficient in query processing. However, you'll find this type of federation less common in real-world scenarios, as organizations often use various database systems.

Heterogeneous Federation

A heterogeneous federation is ideal if you need to analyze data from a wide variety of systems and formats. This could include a mix of SQL databases, NoSQL databases, CSV files, and other data formats. The primary challenge here is managing the differences in data models, schemas, and query languages.

You might find this federation more complex, but it offers greater flexibility in integrating diverse data sources across your organization. It allows you to query data from various systems as if they were a single, unified database.

Loosely Coupled Federation

In a loosely coupled federation, the data sources operate independently, and the federation system interacts with them more flexibly. You don't need to make extensive modifications to the original data sources, and changes to one source have minimal impact on others.

This type of federation is beneficial when you need a system that's easy to maintain and scale, as it allows you to add data sources without significant reconfiguration. A loosely coupled federation is suitable for environments where data sources are frequently updated or replaced.

Tightly Coupled Federation

A tightly coupled federation provides you with a more integrated approach. In this setup, you'll find that the data sources are more closely linked, often sharing a standard schema or data model. When you implement a tightly coupled federation, you'll typically have more control over the entire system, leading to better performance and consistency.

However, you'll also find that this approach is less flexible than a loosely coupled federation. Making changes to one part of the system may require adjustments across the entire federation. Tightly coupled federation is often used when you need to ensure high levels of data consistency and performance across multiple, closely related data sources.

Data Federation Use Cases

Here are some specific use cases of data federation:

Internet of Things (IoT)

IoT applications generate vast amounts of data from various sensors and devices. Data federation allows you to query data from these multiple sensors and devices in real time, providing a unified view for monitoring and analyzing IoT data streams.

Inventory Management

Retailers often have inventory data spread across multiple warehouses and stores. Data federation helps integrate this data, allowing for real-time inventory tracking and management. This ensures better stock levels and reduces the risk of overstocking or stockouts.

Risk Management

Financial institutions use data federation to integrate risk-related data from various sources like credit scores, market data, and transactional records. This allows them to assess and manage risks better, ensuring compliance with regulatory requirements.

Data Federation Vs. Data Virtualization Vs. Data Warehousing

There are several approaches to integrating and accessing data from multiple sources, each with unique characteristics. Below is a comparison table that highlights the key differences between data federation, data virtualization, and data warehousing:

Aspect	Data Federation	Data Virtualization	Data Warehousing
Data Integration Approach	Accessing and querying data from multiple sources in real-time as if they were a single source.	Creates a unified virtual layer that integrates data from disparate sources.	Centralizes data from various sources into a single repository for analysis and reporting.
Data Storage	Data remains in the original source systems.	Data remains in the original source systems.	Data is physically stored in the data warehouse.
Data Freshness	Provides access to the most current data.	Provides access to the most current data.	Depends on sync frequency.
Data Movement	Minimizes data movement and replication by keeping data in its original source.	Minimizes data movement by providing a virtual view of data without physical replication.	Requires extensive data movement and replication into the data warehouse for consolidation.
Scalability	Easily scales by incorporating new data sources without impacting existing infrastructure.	Allows for seamless integration of new data sources without significant changes to the underlying architecture.	Can be highly scalable with proper implementation.
Data Latency	Low latency, as data is queried in real-time from the sources.	Low latency, as data is queried in real-time from the sources.	Higher latency, as data is loaded in batch on a regular schedule.
Cost Efficiency	Reduces storage costs by minimizing data replication and movement.	Optimizes resource utilization by leveraging virtualization techniques.	Involves initial setup and ongoing maintenance costs for infrastructure and data storage.

💡Suggested Read: What is Data Matching?

Challenges with Data Federation

Although data federation offers significant benefits, it comes with its own set of challenges. Here are a few of them:

Data Heterogeneity

You may encounter the challenge of data heterogeneity when dealing with data federation. This refers to the differences in data formats, structures, and semantics across various sources.

Each source may have its own unique way of organizing and representing data, making it difficult to seamlessly integrate them. You will need to handle these differences and ensure proper mapping and transformation of data to achieve consistency.

Data Quality and Consistency

Ensuring data quality and consistency can be a major challenge in data federation. Since you are dealing with multiple sources, there is a higher chance of inconsistencies, errors, and inaccuracies in the data.

You need to assess and validate the quality of data from each source, identifying and resolving any discrepancies to maintain data integrity.

Schema Complexity

Mapping schemas from diverse sources can be difficult in data federation. The disparate structures of data sources, with varying data types and relationships, require advanced techniques to standardize schemas and ensure consistency across the federated data.

You can leverage data mapping tools to create a unified view of the data that accurately reflects its underlying semantics.

Is Data Federation Really Necessary?

Data federation can be valuable in certain scenarios, but it is not always ideal for every situation. It is suitable if you need to instantly aggregate and query data from multiple systems without moving it into a centralized location.

However, the data federation lacks a historical view of data. In cases where historical data analysis is crucial, data consolidation becomes more suitable. Data consolidation involves extracting and unifying data from different sources into a centralized repository, such as a data warehouse or a data lake. This allows for comprehensive historical analysis and a holistic view of the data over time.

‍Airbyte is a robust cloud-based data integration platform that allows you to efficiently consolidate data from various sources into centralized destinations.

Here are the key features of Airbyte:

Simplified AI Workflows: By leveraging frameworks like LangChain or LlamaIndex, you can create a seamless conversational interface that allows you to interact with your raw or transformed data in a user-friendly manner.

‍Ease of Use: Airbyte provides a range of development options for creating and managing data pipelines, making it accessible to everyone. These options include a user-friendly graphical user interface (UI), an API, a Terraform Provider, and PyAirbyte. With these diverse choices, you can choose the one that best aligns with your requirements.

‍Connectors: Airbyte provides an extensive library of over 350+ pre-built connectors, enabling you to connect and synchronize data from multiple sources seamlessly. These connectors help you to integrate data from diverse sources, including databases, files, APIs, and more, into a centralized repository without extensive coding.

‍CDK: If you don't find the desired connector, Airbyte empowers you with greater flexibility through its Connector Development Kit (CDK). With the CDK, you can quickly develop custom connectors in less than 30 minutes. This allows you to seamlessly integrate any data source to the destination of your choice.

‍Vector Store Integration: Airbyte lets you directly load your unstructured data into popular vector store destinations like Pinecone, Weaviate, and Milvus. This feature streamlines the process of preparing your data for AI and machine learning applications.

‍Transformations: It allows you to seamlessly integrate with robust tools like dbt (data build tool), enabling you to perform complex data transformations according to your needs.

‍CDC: Airbyte's Change Data Capture (CDC) technique enables you to capture and synchronize changes from source systems effortlessly. Any modifications or updates made to the source data are accurately reflected in the target system, maintaining data consistency and reliability.

Wrapping Up

This article offered comprehensive insights into data federation, its different types, architecture, and use cases. Data management can be complex, especially when data is scattered across various systems that must work together.

However, data federation is a powerful approach that enables you to unlock the full potential of your data assets. By offering a virtualized, unified view of information from multiple sources, data federation enhances data accessibility.

FAQ’s

What is an example of a data federation?

An example of a data federation is a system that virtually unifies data from different sources and provides a unified view through an abstracted consumption layer, allowing you to query the data as if it were in a single database.

What is the difference between a data federation and a data lake?

The key difference between a data federation and a data lake is that a data federation does not move or copy the raw data but instead focuses on virtualizing multiple data sources, while a data lake is a storage solution that enables you to store large amounts of data in its original form.

What are some of the data federation tools available?

Some common data federation tools include Denodo, IBM InfoSphere Federation Server, and Oracle Data Service Integrator. These tools create a federated database that provides a unified access point to query data across disparate sources.
