What is Data Staging? A Comprehensive Guide

January 29, 2024
9 min read

With organizations increasingly relying on data-driven insights for informed decision-making, data staging practices have become essential. From enhancing your organization’s data management process to improving analytics, data staging plays a critical role.

Let’s look into the details of data staging, its benefits, and the best practices to help you leverage the maximum benefits of the process.

What is Data Staging?

Data staging is the process of extracting data from source systems and loading it into an intermediate storage area before transforming and loading it into a target system. The staging area serves as a temporary holding place for data during the ETL (Extract, Transform, Load) process.

The main purpose of data staging is to ensure that clean, consistent, and ready-to-analyze data enters the data warehouse or any other analytics system. This helps derive quality insights from the data for improved decision-making.

Depending on your organization's strategy, the exact series of steps in data staging will vary. The staging may occur in or outside the data warehouse based on business requirements and the design of a data warehouse. However, you may choose to have staging areas in both locations.

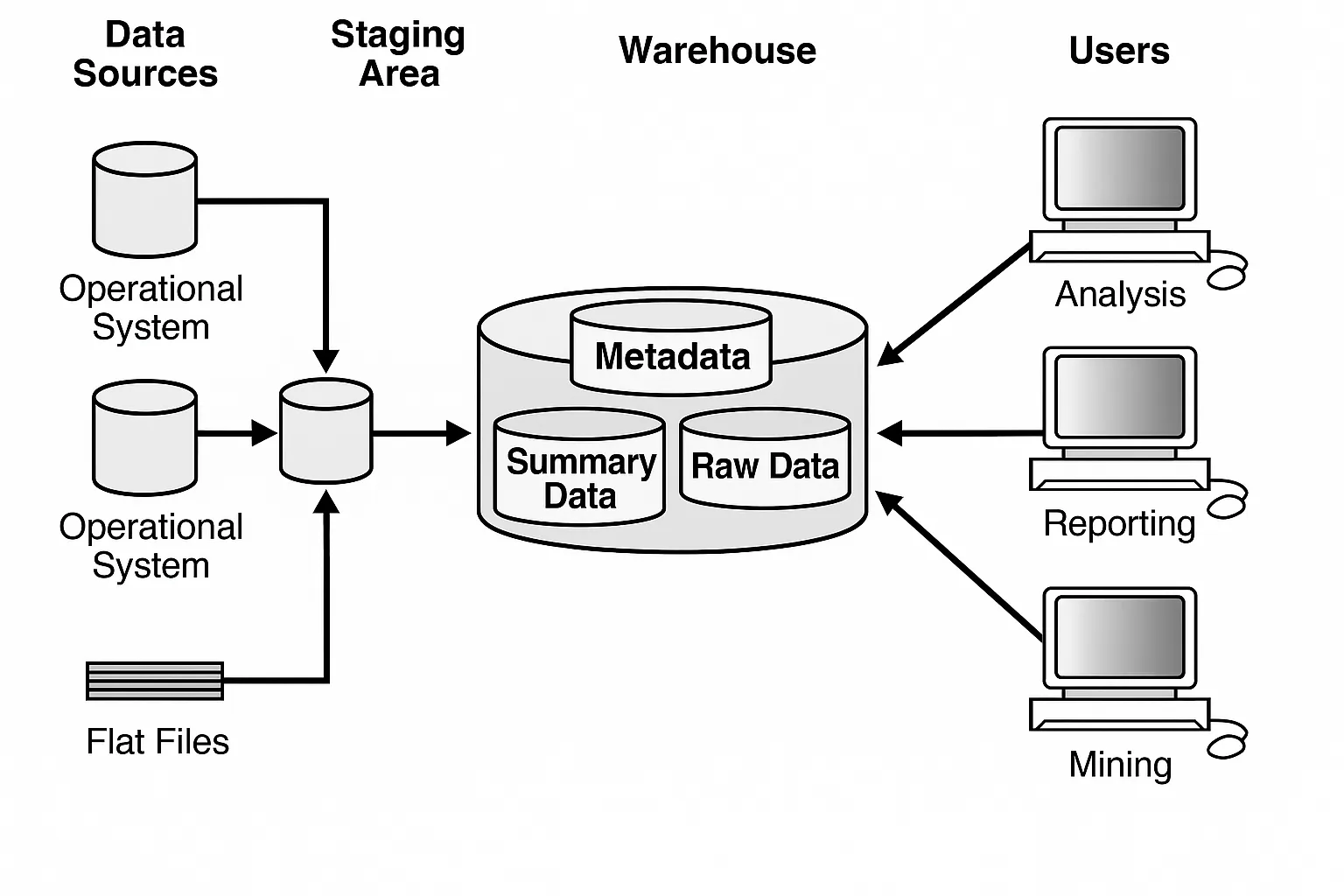

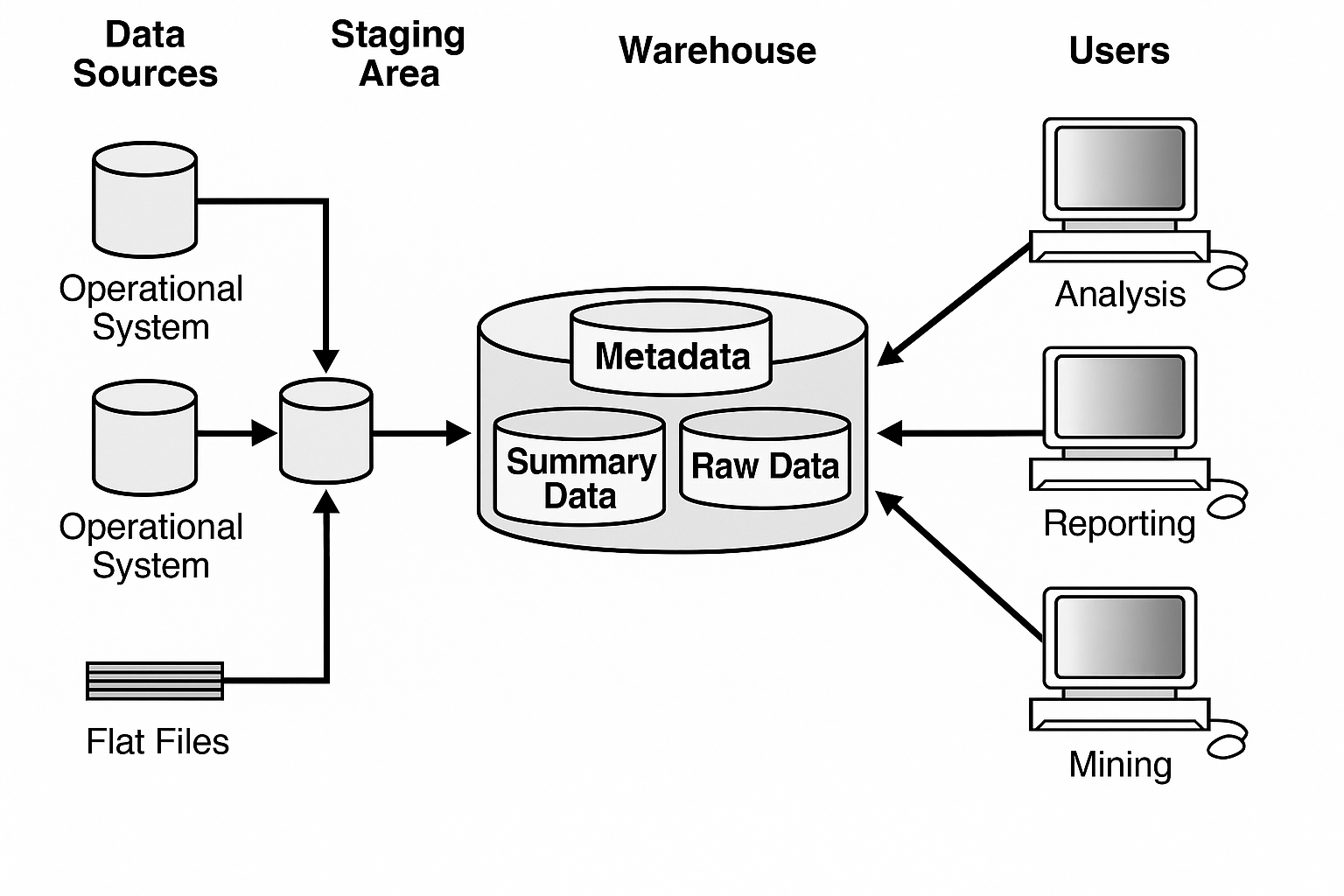

What is a Data Staging Area?

A data staging area is an intermediate storage area where data from source systems is temporarily stored for additional processing. It is located between the data sources and data targets, typically data warehouses or data marts.

Data staging spaces are often transient in nature, with their contents being erased after the data is moved to the desired repository. However, you can also have staging area architectures designed to hold data for long periods of time for debugging or preservation purposes.

A data staging area can be external or internal, depending on whether the data is outside a warehouse or inside a warehouse.

What are the types of Data Staging?

  • External Staging
  • Internal Staging

External Staging

The traditional data staging area is outside a warehouse, typically in a cloud storage provider, like Amazon Web Simple Storage Solution (AWS S3) or Google Cloud Storage (GCS).

In external staging, a data engineer loads data from external sources and performs simple transformations before loading the data into a warehouse. The staged data is often stored in a raw format like Parquet or JSON, either compressed and optimized specifically for staging or determined by the source.

External data staging is beneficial in cases where:

  • Real-time or event streaming data must be transformed.
  • The volume of raw data exceeds the reasonable storage capacity of a data warehouse.
  • Depending on the existing data, operations such as MERGE or UPSERT must be performed.

Internal Staging

Internal staging is a data staging method in which the staging area is located within the data warehouse. Unified cloud data warehouses often utilize a separate, internal staging process.

In internal staging, the raw data is loaded directly into the data warehouse. This can be before or after any transformation takes place. Generally, in internal staging, the transformation of data occurs after it is loaded into the data warehouse. This helps leverage the capabilities and computational power of the data warehouse for performing complex transformations.

The raw data, typically stored in a separate area from the rest of the warehouse, is transformed, cleaned, and normalized in the staging area. This is done without affecting the already structured and processed data in the other parts of the warehouse. The cleaned and prepared data helps reduce complexity and mitigate data sprawl for data teams to present to stakeholders.

Internal staging helps:

  • Transform tables with additional functions such as ordering, grouping, numbering rows, and running totals. This is handy when additional information is required within the same dataset.
  • Index target tables for efficient queries and re-access.

Why is Data Staging Important?

Data staging plays a crucial role in data management and business analytics. Here are some of the key reasons that make data staging important:

  • Data Quality and Consistency: The data transformation and cleansing involved in data staging help maintain data quality and consistency. It ensures that the data used for analysis by your organization is accurate, reliable, and consistent, making it easier to perform analysis and derive insights.
  • Complex Data Integration: Data staging provides a platform to integrate the diverse data extracted from multiple sources into a uniform format. This results in a comprehensive view of your business’ data for easier analysis.
  • Facilitates Advanced Analytics: Properly cleansed and formatted data makes it easier for you to achieve advanced analytics and effectively leverage BI tools.
  • Data Security and Governance: When data is staged in a controlled environment, you can implement security measures and governance policies. This protects sensitive data and ensures compliance with data privacy regulations.
👋 Say Goodbye to Data Silos. Join Airbyte for Effortless Data Integration.
Schedule a Product demo

What are the benefits of a Data Staging Area?

Data staging, being an integral part of the ETL process, offers numerous benefits for enhanced data management and analysis. Some benefits include:

  • Backup: With backups, you can store, compress, and archive data all the way to the database level. Data backup is usually an issue when large volumes of data are sent. The solution to this is to send data in pieces that can be readily preserved and archived using staging areas.
  • Recovery Points: If your data gets corrupted at any point, you can go back to recovery points that are created during the data staging process and reload the data.
  • More Control: A data staging zone gives you more control, allowing you to perform complex operations on your data. Operations that are performed in this zone don’t impact other tuples in your dataset. A tuple is a data structure that has more than one part.
  • Auditing: With the increasing complexity of the ETL process, the auditing process may get lengthy and complicated. Staged data makes the auditing process easier by allowing you to compare the original input files and the output data files. Staging methods keep the data lineage intact while enabling a smooth auditing procedure.
  • Database Functions: The staging area provides the necessary environment and, often, the necessary tools for performing transformations such as replication, aggregation, and cleansing. You can ensure that corrupt data will not be introduced into your business’ main data center.
  • Flexibility: If the source or destination systems have hardware or network limitations, a staging area offers flexibility. It can be tailored to adapt to business and data processing cycles.

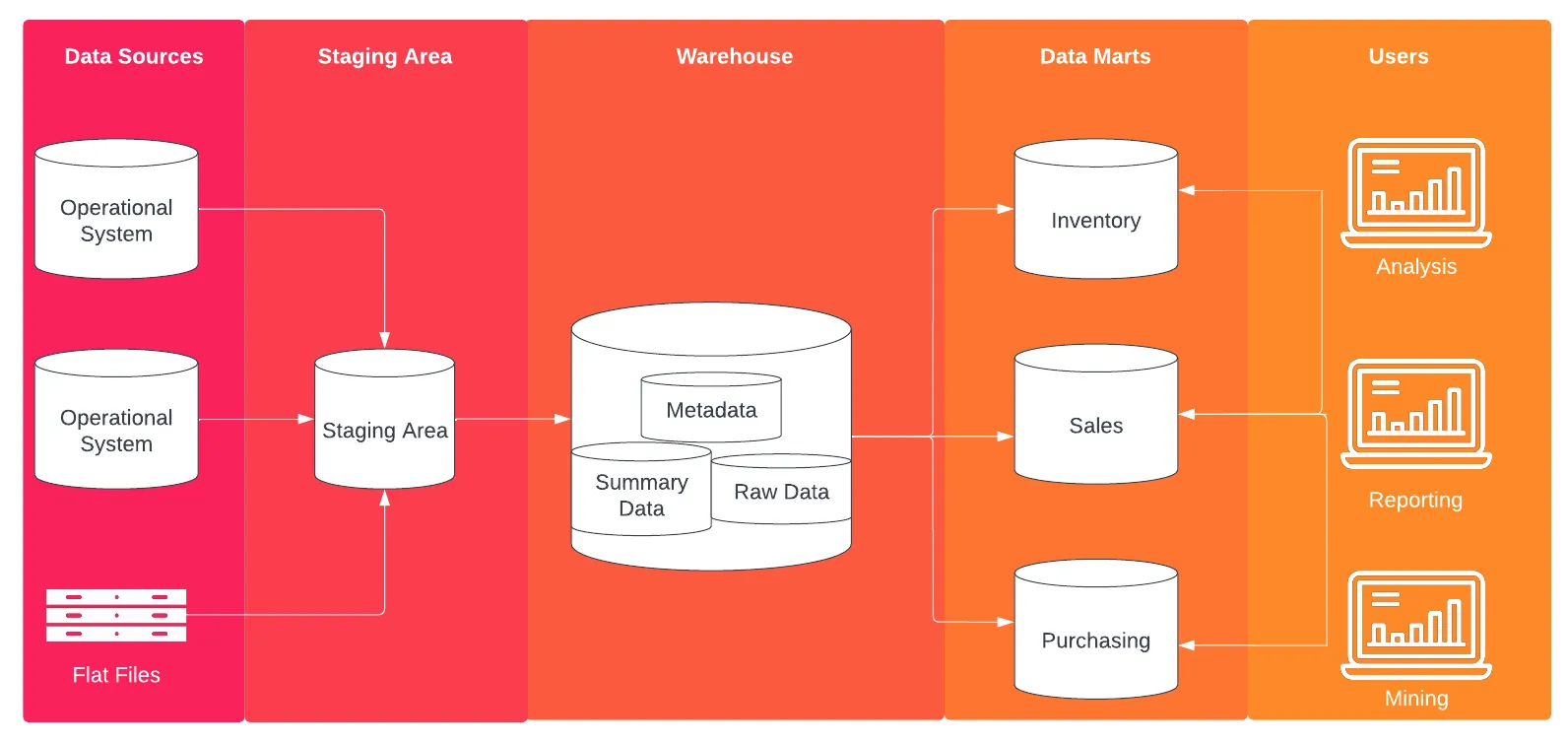

What is the role of Data Staging Area in Data Warehouses?

  • Intermediate Processing: The data staging area serves as an intermediate space for processing and preparing data before it is transferred into the main storage of the warehouse.
  • Data Transformation: It involves tasks such as data transformation, cleaning, and normalization, ensuring that the data is in a standardized format and ready for analysis.
  • Harmonization of Data: Acting as a bridge between disparate data sources, it allows for the harmonization and integration of data from diverse origins, ensuring consistency and coherence across different sources.
  • Gateway for Data: By serving as a gateway for data into the warehouse, the staging area facilitates the smooth flow of information, optimizing the efficiency of the overall data management process.
  • Centralized Integration: It provides a centralized location where data from various sources can be integrated, analyzed, reported upon, and utilized for decision-making purposes.

8 Essential Steps in the Data Staging Area

Data staging serves as the crucial bridge between raw data and actionable insights, ensuring that information is refined and prepared for analysis. Let's explore the sequential steps involved in the data staging process:

#1 Data Extraction:

  • Extract data from diverse sources such as databases, CRM systems, and APIs.
  • Centralize the extracted data in the staging area for further processing.

#2 Data Profiling:

  • Assess the quality and completeness of the incoming data.
  • Identify any anomalies or inconsistencies that may require attention.

💡Suggested Read: Data Profiling Tools

#3 Data Cleansing:

  • Rectify errors, duplicates, and inconsistencies in the raw data.
  • Ensure that the data is accurate and consistent for subsequent analysis.

#4 Data Transformation:

  • Restructure data formats, types, and values to align with the target system's schema.
  • Standardize the data to facilitate seamless integration and analysis.

#5 Data Validation:

  • Validate the cleansed and transformed data against predefined business rules and criteria.
  • Ensure data accuracy and relevancy for meaningful insights.

#6 Data Integration:

  • Merge and consolidate data from multiple sources to create a unified dataset.
  • Resolve conflicts and discrepancies to establish a cohesive data environment.

#7 Temporal Storage:

  • Temporarily store processed data for backup, further checks, or synchronization with load schedules.
  • Maintain data integrity and accessibility during the staging process.

#8 Data Loading:

  • Load the refined data into the target system, such as a data warehouse or data mart.
  • Ensure smooth and efficient data transfer, leveraging the prepared data from the staging area.

In essence, the data staging area orchestrates a series of essential steps to refine and prepare data for insightful analysis. By meticulously guiding data through each stage, organizations can unlock the full potential of their data assets and drive informed decision-making.

Examples of Data Staging Areas

Exploring various examples of data staging areas is essential for developing robust data integration strategies, streamlining data workflows, and ensuring efficient data transformation and loading processes before data is sent to its ultimate destination.

  • E-commerce Platform
    E-commerce platforms rely on data staging areas to manage vast amounts of transactional and customer data. These staging areas facilitate the aggregation, cleansing, and transformation of data from multiple sources, ensuring accurate product listings, personalized recommendations, and seamless checkout experiences for customers.
  • Banking and Finance
    In the banking and finance sector, data staging areas are integral to processing and analyzing diverse financial transactions, customer accounts, and market data. These staging areas help financial institutions standardize data formats, detect fraudulent activities, and generate insights for risk management and regulatory compliance.
  • Healthcare Institutions
    Healthcare institutions utilize data staging areas to integrate and preprocess electronic health records (EHRs), medical imaging data, and patient information from various sources. These staging areas enable healthcare providers to ensure data accuracy, facilitate clinical decision-making, and support population health management initiatives.
  • Retail Chain
    Retail chains leverage data staging areas to consolidate sales data, inventory information, and customer demographics from multiple stores and online channels. By preprocessing and cleansing data in staging areas, retail chains can optimize inventory management, personalize marketing campaigns, and improve customer service across all touchpoints.
  • Smart City Management
    Smart city initiatives rely on data staging areas to collect, process, and analyze sensor data, traffic patterns, and public services information. These staging areas enable city authorities to optimize urban infrastructure, enhance public safety, and deliver efficient municipal services to residents.
  • Manufacturing
    In the manufacturing sector, data staging areas play a vital role in managing production data, supply chain information, and equipment telemetry. By preprocessing data in staging areas, manufacturers can monitor equipment performance, predict maintenance needs, and optimize production processes for improved efficiency and quality control.

By understanding these examples of data staging areas, organizations can tailor their data integration strategies to meet specific industry requirements, enhance data management capabilities, and unlock actionable insights from their data assets.

Data Staging Best Practices

To maximize the effectiveness of data staging, here are some best practices worth adopting:

  • Design for Scalability
    Design your data staging area to handle future data volumes. Choose platforms and tools that can scale easily without significant architectural changes. Additionally, anticipate data growth patterns and adapt the infrastructure accordingly. A proactive design approach helps save future resource allocations and ensures seamless data integration regardless of volume variations.
  • Maintain Data Integrity
    t is essential to validate and cleanse the data as it enters the data staging area. This involves implementing checksums, data type validation, and other checks to maintain consistency. Regular reviews and updation of validation protocols can accommodate changing data structures and business needs. By prioritizing data integrity, you can safeguard the quality of your data while also bolstering trust in the insights and analytics derived from it.
  • Implement Version Control
    A version control system for your data staging area processes ensures you can track changes, revert when required, and understand the data handling history. It also improves team collaboration, allowing multiple contributors to work in parallel without overriding each other’s modifications. Preserving historical versions equips you to handle audits and reviews as well as swiftly address any data anomalies that may arise from changes.
  • Prioritize Security
    Robust security measures such as encryption, access controls, and audit trails help protect the raw, sensitive data in the staging area. It’s equally important to frequently review and update these measures for emerging threats and vulnerabilities. The staging area must not be accessible to users; only ETL operations should be able to read or write to the staging area’s data files. Additionally, only the ETL team in charge of the entire process must own the data staging space; no one else should have access to it. There are no Service-Level Agreements for staging area files since they’re intended only for display, without any indexes or aggregations to aid queries.
  • Maintain Comprehensive Documentation
    Ensure every process and data flow within the data staging area is well-documented. Comprehensive documentation serves as a reference for future modifications, ensuring traceability and consistency. It also aids in onboarding and troubleshooting while providing clarity on data lineage and transformations.
  • Frequent Backups
    Regularly back up the configurations, scripts, and crucial data of the staging area. This facilitates quicker recovery in case of failures and safeguards against data loss. Consistent backup routines also ensure no critical information is overlooked, preserving the continuity and integrity of data workflows. With a disciplined backup schedule, you can instill confidence in your data processes, ensuring operations remain resilient against unforeseen disruptions.

Popular Data Staging Tools

Several widely used data staging tools facilitate preprocessing and transforming data before loading it into target systems. Here are some examples:

  1. Apache NiFi: Known for its open-source nature, Apache NiFi offers a graphical interface for designing data pipelines, making real-time data ingestion, routing, and processing straightforward.
  2. Talend Data Integration: Talend Data Integration is a comprehensive platform with features for data cleansing, enrichment, and transformation. It supports batch and real-time processing and provides pre-built connectors for seamless integration.
  3. Informatica PowerCenter: Informatica PowerCenter offers advanced transformation capabilities, workflow automation, and robust data governance features, making it a popular choice for organizations seeking efficient data integration solutions.
  4. Microsoft SQL Server Integration Services (SSIS): SSIS, part of the Microsoft SQL Server platform, provides a visual development environment for building data integration workflows and supports various data sources and destinations.
  5. IBM InfoSphere DataStage: IBM InfoSphere DataStage enables the design, deployment, and management of complex data integration processes. It offers parallel processing capabilities, data quality features, and real-time data integration support.
  6. SAP Data Services: SAP Data Services is an enterprise-grade ETL tool with features for data extraction, transformation, and loading across heterogeneous systems. It offers a unified development environment and data quality management capabilities.

These tools cater to diverse needs, from basic data preprocessing to advanced ETL operations, empowering organizations to streamline their data integration processes effectively.

Final Thoughts

Whether you want to enhance data quality or ensure seamless integration of different data sources, data staging is a critical step. It helps transform raw data into valuable information for effective decision-making.

The various steps involved in data staging include extracting data from multiple sources and transforming and cleansing the data before or after loading to staging areas. Data staging areas can be external or internal and vary based on the organization’s strategy. To be able to reap the maximum benefits of data staging, some best practices include designing for scalability, maintaining data integrity, implementing version control, and prioritizing security.

Popular FAQs for Data Staging

  • What is data staging, and why is it important?
    Data staging is a pivotal step in data management where raw data undergoes transformation and preparation before being loaded into a data warehouse or analytics system. It ensures data quality and consistency, contributing to informed decision-making.
  • How does data staging differ from other data management processes like extraction and loading?
    Unlike extraction, which retrieves data, and loading, which transfers it to a target system, data staging encompasses both processes along with transformation. Staging ensures that data is cleansed, standardized, and structured before loading.
  • What are the typical steps involved in data staging?
    Data staging involves extraction, profiling, cleansing, transformation, validation, integration, temporary storage, and loading. Each step refines the data quality, format, and consistency for analysis.
  • What are some common challenges faced during the data staging process?
    Challenges include managing large data volumes, ensuring quality across multiple sources, handling complex transformations, maintaining security, and optimizing performance and scalability.
  • What are some best practices for effective data staging?
    Best practices include scalable architecture design, data integrity maintenance, version control, security measures, and automation using ETL tools for efficient processing.
  • What role do data staging tools play in the process?
    Data staging tools automate extraction, transformation, and loading tasks, enhancing efficiency and scalability. They offer integration, cleansing, and validation features, streamlining data workflows.
  • How do ETL tools enhance data staging workflows?
    ETL tools streamline data staging workflows by automating repetitive tasks, such as data extraction, transformation, and loading. They offer graphical interfaces and drag-and-drop functionalities, making it easier to design and manage complex data pipelines, thereby improving overall efficiency and productivity.
