How Do You Handle Schema Drift in ETL Pipelines?

What is schema drift in ETL pipelines, and where does it usually start?

Schema drift is any unplanned change to field names, structures, or data types as data moves from producers to analytics. It often starts at the edges—an API tweak, a microservice release, a new event version—and then propagates through extract, transform, and load. Common cases include additive fields, missing attributes, nested JSON changes, and type shifts. Unmanaged drift breaks readers, corrupts SQL transforms, and triggers fragile hotfixes that delay analytics.

Why schemas drift: organizational and technical sources

Schemas drift because products evolve, teams ship independently, and third-party services change without notice. Flexible encodings like JSON and dynamic typing can mask changes until a strict consumer fails. Without explicit contracts, subtle shifts bypass CI and reach production.

1. Fast-moving SaaS APIs (LinkedIn, Slack), ad platforms, and webhooks
2. Microservices shipping independently without schema governance
3. IoT and edge collectors emitting partial payloads
4. AI-driven features introducing new fields or nested structures
5. Emergency patches and backfills that bypass review

Additive, optional, and breaking changes explained

Not all drift has the same impact. Additive and optional changes are often survivable with the right patterns; breaking changes usually require migrations. Classify changes to apply proportionate controls.

1. Additive: new JSON properties, appended columns, nested arrays
2. Optional: higher null rates, field defaulting, sparse columns
3. Breaking: renames, deletions, incompatible type changes

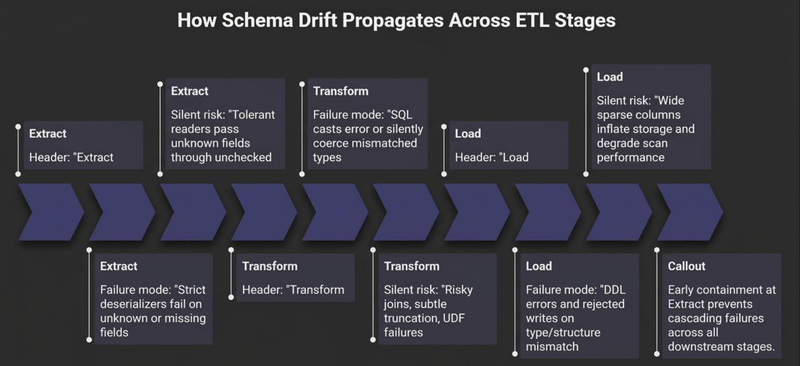

How drift propagates across extract, transform, and load phases

At extract, strict deserializers or clients can fail on unknown or missing fields. In transform, SQL casts, joins, and UDFs may error or silently coerce values. At load, warehouses might reject writes or incur skew from wide, sparse columns. Early containment stops cascades across stages.

1. Extract: strict readers fail; tolerant readers pass extras through
2. Transform: risky casts, failed joins, subtle truncation
3. Load: DDL errors, rejected writes, increased storage due to sparsity

Real-world drift examples you will actually see

Production pipelines face familiar drift patterns. SaaS connectors change overnight, and enrichment services evolve interfaces. Expect nested structures, renamed keys, precision shifts, and new identifiers to appear without notice.

1. Added nested JSON for message attachments
2. Retyped cost fields from string to decimal
3. Renamed campaign_id to campaignId
4. Dropped legacy columns after deprecation

How do ETL pipelines detect schema drift before it breaks production?

Early detection combines explicit contracts with runtime signals. Use agreed schemas (Avro/JSON Schema), automated discovery against sources, and canary runs that diff expected vs. observed payloads. Pair structural checks with semantic monitors for null rates and distributions. Together, these catch shape changes and meaning shifts before they disrupt pipelines or analytics.

Contract testing and schema registries in practice

A schema registry with compatibility rules sets expectations for producers and consumers. Contract tests run in CI and staging, validating payloads against policies before deploys. This creates ownership, audit trails, and predictable evolution across services and pipelines, including Apache Kafka topics.

1. Registry-backed topics with backward/forward/full compatibility
2. Consumer-driven contracts for API payloads
3. Automated diffs on schema evolution PRs

Automated discovery and diffing from APIs and databases

Automated discovery probes APIs, JDBC catalogs, and CDC streams to snapshot current shapes. Comparing snapshots highlights adds, drops, and type changes so teams can approve, reject, or quarantine. Running discovery on a schedule separate from syncs enables deliberate adoption.

1. Poll API metadata endpoints, sample payloads, and introspect JSON
2. Compare database schema snapshots via information_schema
3. Alert on diffs exceeding configured thresholds

Runtime guards and data quality rules at ingestion

Readers should accept unknown fields but defend against missing required ones. Enforce typed boundaries at defined layers instead of everywhere. Data quality rules catch semantic drift, such as rising nulls or unexpected cardinality, before it affects downstream aggregates.

1. Guardrails: soft-fail on unknown fields, DLQ on contract breach
2. Typed boundaries: enforce at bronze→silver (raw→normalized)
3. DQ monitors on key business attributes

Observability and lineage to localize impact

Observability connects schema diffs, error spikes, and recent deploys to identify root causes. Field-level lineage shows which models and dashboards depend on a column, guiding triage. This shortens recovery and limits the blast radius.

1. Field-level lineage to downstream SQL models
2. Time-correlated alerts against deploy calendars
3. Dashboards for schema-change frequency by source

Which storage formats and metadata layers help with schema drift in ETL pipelines?

Storage choices shape how well pipelines absorb change. Many teams land raw records as JSON to preserve fidelity, then materialize typed tables later. Lakehouse layers like Iceberg or Delta manage evolution in columnar formats, while Avro with a registry enforces contracts at streaming boundaries. Combining these allows continuous ingestion with careful typing.

Raw zones with JSON and late binding

Landing raw JSON decouples ingestion from modeling, so extracts continue when producers add fields. Late binding defers rigid typing until consumption, preserving full-fidelity data for backfills. Governance should cover retention, PII handling, and access to this flexible but potentially wide layer.

1. Pros: resilient to additive drift, simple to ingest
2. Cons: downstream complexity, potential cost from wide sparse payloads

Columnar with evolution: Parquet plus Lakehouse tables

Parquet with Iceberg or Delta Lake supports schema evolution and table metadata management. Additive columns and some type widenings are commonly allowed, depending on engine/version. Renames and incompatible changes still need planned procedures and migrations.

1. Pros: efficient analytics, managed evolution and metadata
2. Cons: careful ops for breaking changes, engine/version nuances

Avro with a schema registry at boundaries

Avro works well with a schema registry to enforce compatibility for streams and CDC. Producers validate against current policies, and consumers negotiate versions. This strengthens contracts at the edge while complementing flexible raw storage and typed analytical layers.

1. Pros: enforceable contracts, negotiated evolution
2. Cons: requires producer discipline and registry governance

How format and layer choices compare for drift handling

The table below summarizes evolution support and cautions across common formats and layers when handling schema drift in ETL pipelines

‍

What transformation and modeling patterns contain schema drift in ETL pipelines?

Containment comes from layered models, safe casting, and stable interfaces. Land raw data, then normalize to typed models with versioned SQL and views that shield consumers. Prefer additive migrations and staged rollouts. For incompatible drift, use controlled boundaries, backfills, and explicit deprecations instead of in-place rewrites.

Schema-on-read with SQL views and UDFs

Schema-on-read projects stable field sets while underlying JSON evolves. Views and UDFs handle defaults, parse nested structures, and insulate consumers.

1. Use COALESCE/defaults for optional fields
2. Guard casts with TRY_ functions or SAFE_ casts
3. Encapsulate parsing of arrays/objects in UDFs

Normalization from JSON to typed models

A bronze/silver/gold approach materializes curated tables from raw JSON. Flatten nested objects, split arrays into child tables, and enforce data types deliberately. Apply changes via migrations and dbt models, with targeted backfills for new columns.

1. New columns as additive migrations, not destructive alters
2. Child tables for nested arrays with stable keys
3. Backfill jobs for historical completeness

Safe casting and type widening rules

Type policies should prefer widening over narrowing to avoid data loss. Establish defaults for scale and precision, use tolerant casts, and retain raw values for remediation. Centralize casting at defined boundaries for visibility.

1. Define allowed casts and default precision/scale
2. Log cast failures and store raw values for remediation
3. Track null-introducing casts as quality incidents

Versioned models and a deprecation playbook

Versioned models enable parallel validation and gradual cutover. Keep deprecated columns with warnings while consumers migrate through compatibility views. A clear playbook reduces risk and coordinates changes.

1. Publish change calendars and consumer impact notes
2. Maintain compatibility views during migration windows
3. Automate lineage-based consumer notifications

How should streaming ETL pipelines handle schema drift with Apache Kafka and real-time APIs?

Real-time pipelines have tight SLAs and little room for trial-and-error. Enforce contracts at the edge, set compatibility policies, and build resilient consumers. Provide escape hatches—DLQs, replayable storage, and checkpoints independent of payload shape—so you can quarantine issues and remediate without stopping the stream or losing progress.

Compatibility strategies and versioned topics

Compatibility modes define how producers and consumers evolve. Major breaking changes often warrant versioned topics and dual readers during transition. Clear policies prevent silent truncation and guide safe rollouts.

1. Backward for reader stability; forward for rolling upgrades
2. Versioned subjects or topics for major revisions
3. Consumer capability negotiation where supported

Dead-letter queues and quarantine flows

When records breach contracts or fail deserialization, route them to a DLQ with enough context to fix and replay. This protects throughput while enabling targeted remediation. Monitor DLQ volumes to detect emerging schema issues.

1. Include payload snippet, error, offset, and schema version
2. Automated reprocess after remediation
3. Alert thresholds tied to SLOs

Stateful consumers and checkpoint resilience

Keep consumer state and checkpoints independent of message shape so additive fields do not reset progress. If transformation fails, preserve offsets or CDC positions and park records safely. This avoids backlogs from non-critical schema differences.

1. Use idempotent sinks and exactly-once semantics where available
2. Separate transformation failures from source checkpoints
3. Maintain replay capability from durable storage

Example: IP address enrichment drift

A geo-enrichment change might introduce IPv6 and nested regional attributes. Treat new fields as optional and widen types to avoid truncation. Version the enrichment schema, shadow-test, and backfill once parsers are updated.

1. Validate IPv4/IPv6 formats with tolerant parsers
2. Keep original source IP in raw for audit
3. Backfill geo fields after parser rollout

How do you govern producer changes so schema drift doesn’t derail ETL pipelines?

Governance turns drift into managed evolution. Producers publish schemas, owners, and change notes; consumers subscribe and test proposed updates. Catalogs and lineage expose impact, while SLAs define windows, rollback paths, and on-call response. Privacy reviews ensure new fields do not introduce sensitive data unexpectedly.

Producer contracts and coordinated change windows

Define ownership and review gates for database schema and payloads. Producers propose changes with fixtures and compatibility notes; consumers test in staging before cutover. Scheduled windows and rollback protocols reduce surprises.

1. Change proposals with sample records and compatibility notes
2. Staging topics/endpoints with mirrored traffic
3. Rollback and freeze protocols

Catalogs, lineage, and enforceable policies

A central catalog registers datasets, schemas, owners, and evolution history. Policies enforce naming, typing, and field governance. Lineage quantifies the blast radius so teams can prioritize updates.

1. Field ownership and POC for escalations
2. Policy checks in CI/CD for schema changes
3. Lineage-based blast radius analysis

SLAs, incident playbooks, and rollback

Define SLAs for schema stability and incident response. Playbooks document detection, triage, mitigation, and rollback. Post-incident reviews harden controls and close gaps.

1. Time-bound alerts and on-call rotations
2. Shadow reads and feature flags for risky changes
3. Retrospectives with actionable follow-ups

Privacy and compliance when new fields appear

New fields can introduce PII unexpectedly. Classify at ingestion, quarantine unknown sensitive data, and apply masking. Ensure retention, access, and deletion policies cover raw zones where drift first appears.

1. Automated classifiers on raw JSON
2. Masking/tokenization at normalization boundaries
3. Data access reviews on newly discovered fields

How do you choose the right schema drift strategy for your ETL pipelines?

The right posture depends on change frequency, downtime tolerance, and platform capabilities. High-churn sources favor raw-first and schema-on-read, while stable domains benefit from stricter typing. Combine compatibility policies, versioned models, and clear SLAs to balance safety, speed, and cost. Tune hotspots with materializations and partitions without sacrificing drift resilience.

Assess drift profile and workload characteristics

Baseline your environment before choosing controls. Measure how often fields change, which endpoints drift, and the class of changes. Map business criticality, latency, and consumer diversity to decide where to be strict vs. flexible.

1. Drift rate, null-rate volatility, and type-change frequency
2. Batch vs streaming latency targets
3. Number and sensitivity of downstream consumers

Reference architectures by maturity

Start simple and add governance as complexity grows. Move from raw landing to curated layers, then to registry-backed streams and managed table formats. Mature teams automate diffs, run DLQs, and operate replay/backfill reliably.

1. Bronze/silver/gold with dbt or equivalent
2. Registry-backed Kafka + CDC for contracts
3. Lakehouse tables with evolution controls

Cost, performance, and SLA trade-offs

Schema-on-read increases flexibility but can raise scan costs on wide JSON. Strict typing speeds queries but requires disciplined migrations. Choose defaults that meet SLAs, then optimize with materializations and caching.

This table maps common scenarios to recommended patterns across storage, transformation, and operations.

‍

How Does Airbyte Help With Schema Drift in ETL Pipelines?

Airbyte approaches schema drift by pairing explicit JSON Schemas from connectors with a raw-first ingestion pattern. When sources evolve, discovery updates the Catalog, and destinations persist each record as raw JSON. This preserves full-fidelity payloads so additive fields and nested structures do not block ingestion, while allowing later typing and historical reprocessing.

One way to address downstream consistency is through Airbyte’s optional dbt-based normalization. It regenerates SQL models from the latest Catalog, adding columns and creating child tables for nested arrays/objects on supported warehouses. Teams can run backfills or resyncs to populate newly added columns once models are updated, keeping analytics aligned with source evolution.

Frequently Asked Questions (FAQs)

Is schema drift always bad for ETL pipelines?

No. Additive drift can be useful. Issues arise when readers or transforms assume strict shapes without guardrails or staged typing.

Do I need a schema registry if I use JSON?

Often for streams, yes. JSON Schema with a registry or consumer contracts governs evolution and reduces runtime surprises.

Can warehouses handle schema drift automatically?

It depends on engine and configuration. Many support adding columns; renames and type changes typically need planned migrations.

How do AI-driven features affect schema drift?

Artificial intelligence features frequently add nested arrays and metrics. Expect higher change rates; prefer schema-on-read and versioned models.
