How To Design ETL Pipelines for Hybrid Cloud Environments

Hybrid ETL design should center on recovery boundaries and transfer constraints because WAN links amplify ordinary cloud-pipeline risks. Moving data between local data centers and multiple clouds can turn small design flaws into long batch windows, high egress fees, and security issues. The pipeline must keep working when links slow down, source logs approach their retention limits, schemas change, or a destination rejects writes.

That means separating capture from application cadence, reducing data before it crosses a boundary, and testing failover and replay under realistic load. The strongest design meets freshness, recoverability, residency, and cost-control requirements together.

TL;DR

• ETL Pipelines for Hybrid Cloud Environments must account for network limits, recovery windows, security boundaries, and regional rules.
• Use continuous log-based CDC capture when write-ahead log (WAL) or binary log (binlog) access is available. Apply changes continuously for second-level decisions, buffer them into micro-batches for batch-oriented destinations, and use scheduled batch when minute-to-hour freshness and cost dominate.
• Reduce transfer volume near the source, retain enough source history for recovery, and enforce schema compatibility at every destination.
• Keep data, credentials, and compute within approved boundaries while monitoring freshness, costs, and deletion propagation across environments.

What Does a Hybrid Cloud ETL Pipeline Mean?

You use a hybrid cloud ETL pipeline to move data between systems in your own data center and the public or private clouds where newer workloads live. You might extract customer orders from an on-premises enterprise resource planning (ERP) system, change them to a common schema, then load the results into a cloud warehouse for analytics, sometimes within seconds, sometimes overnight.

Many traditional ETL designs assume relatively homogeneous infrastructure, but hybrid networks span thousands of miles, bandwidth fluctuates, and compliance rules vary by region. Security weaknesses emerge when data leaves your data center's hardened perimeter, while cloud services impose their own API limits and cost models. Your processing logic must account for heterogeneous compute power, storage formats, and authentication schemes.

A hybrid pipeline lets you keep selected workloads on existing hardware and use the cloud for elastic scale.

What Are the Key Challenges of ETL in Hybrid Environments?

The key challenges are network latency and bandwidth limits, cross-environment data format drift, security and compliance weaknesses, and inefficient storage and networking costs. Network constraints make unnecessary data movement costly and slow. A schema change can make replayed events incompatible with the destination, and emergency full reloads can increase both network traffic and egress charges.

These challenges favor designs that minimize boundary crossings and preserve a recoverable change history.

How Can You Design ETL Pipelines for Hybrid Cloud Step by Step?

1. Map Your Data Sources and Destinations

Start by cataloging the legacy databases in your data center, SaaS applications, object stores, and event streams that produce or consume data. Integration initiatives fail when hidden sources appear late in the project and require new connectors, network capacity, schema mappings, or residency approvals.

For each asset, document volume, velocity, format, and business criticality. Note residency mandates. Crossing borders without a plan can violate residency or privacy mandates that audit teams will catch later.

Draw a data-flow diagram showing which paths require updates within a defined number of seconds or minutes versus those that can tolerate delays. This blueprint guides network sizing, tool selection, and service-level agreement (SLA) negotiation.

2. Choose the Right Data Movement Strategy

Use continuous log-based CDC capture by default when the source supports WAL or binlog access. This approach avoids scheduled source scans. Treat capture and destination application cadence as separate decisions.

Apply changes continuously when a business action requires seconds-level response. Buffer them into short micro-batches when the destination is batch-oriented. Use scheduled batch when you measure the freshness SLA in minutes or hours and cost dominates.

When initializing or rebuilding a full replica, production CDC typically begins with a consistent snapshot. It then streams from the corresponding source-log position. This prevents the pipeline from losing changes that commit during the scan. Most CDC systems provide at-least-once delivery, so consumers must use stable event identifiers or source keys for idempotent upserts and tolerate duplicate events after a crash or offset rollback.

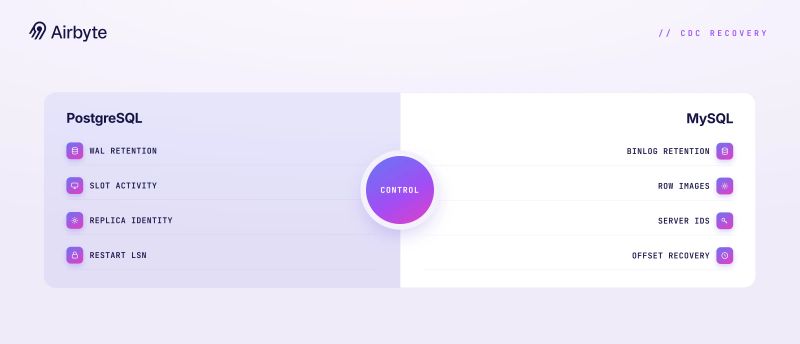

Source-log retention is part of pipeline capacity planning. CDC services replay changes from database logs, and consumers need enough retained history to recover after interruptions. Because source history truncation can prevent recovery replay, retention must exceed the longest expected outage plus recovery time. If a consumer falls beyond that window, rebuild from a fresh snapshot.

3. Improve Performance and Scalability

Improve performance by reducing the amount of data that crosses network boundaries and controlling how quickly each system accepts work. Partition large tables and run processing tasks in parallel so nodes in different environments share the load.

Edge processing trims round-trip delays by filtering or aggregating data before it crosses the WAN. Compression and deduplication further shrink transfer sizes. The resulting volume reduction lowers egress fees and exposure surface. Push masking, projection, and selective aggregation toward the source when they materially reduce transfer volume. Keep complex joins in the destination when local SQL dialects or constrained source compute make pushdown expensive.

Where cross-region links remain a bottleneck, schedule non-urgent transfers during off-peak windows. Apply Quality of Service rules to prioritize critical CDC streams over nightly bulk loads.

For production traffic, size the primary link and its backup independently. Verify that each route meets its throughput and failover-time targets. Test failover under a representative load so queue retention and source-log retention can absorb the convergence period without forcing a full reload.

Design for elasticity by allowing containers or serverless tasks to scale out automatically when ingestion surges, then contract to save money once traffic subsides. Bound that elasticity with source connection limits, replication-slot limits, destination write quotas, and backpressure. These controls prevent autoscaling from overwhelming the source and destination systems.

4. Secure and Govern Your Data

Protect data across every trust boundary and make each route enforceable through code. Enforce security before data reaches the destination and throughout the pipeline route.

Encrypt data in transit with a supported, approved TLS configuration. Apply role-based access control (RBAC) consistently across on-premises and cloud identity and access management (IAM) systems to avoid siloed permissions.

Protect data at rest with encryption approved by your security standard. Classify data once, propagate those tags through the pipeline, and make the policy decision before extraction. Automated field-level masking lets you ship analytics events and shields personally identifiable information. For destinations that exclude those fields, remove or tokenize them before they cross the boundary.

5. Monitor and Adjust Continuously

Monitor every hop and connect technical health to freshness, recovery, and cost. Track source-to-destination freshness and usability because connector status covers only one part of whether the destination has current, usable data. Deploy monitoring across on-premises routers, virtual private network (VPN) gateways, message queues, and cloud data warehouses.

Fragmented observability prolongs incident response. Unify logs, metrics, and traces in a single dashboard. Track latency, throughput, error rates, and egress costs side by side to see whether lower latency increases error rates or egress costs.

For CDC, track the source position, consumer acknowledgment, retained-history window, and queue depth together. Alert on stalled progress and rehearse snapshot recovery when the retained window expires.

Configure alerts for schema drift to stop bad data before it propagates, and quarantine streams that violate compatibility rules until consumers update.

Set quarterly reviews to re-benchmark workloads against freshness, recovery, and cost requirements. Teams can move data that once needed CDC to hourly batches. The change can cut spend while meeting the workload's current freshness requirements.

How Do You Compare Movement-Pattern Tradeoffs?

Choose the least complex movement pattern that meets both your freshness and replay requirements.

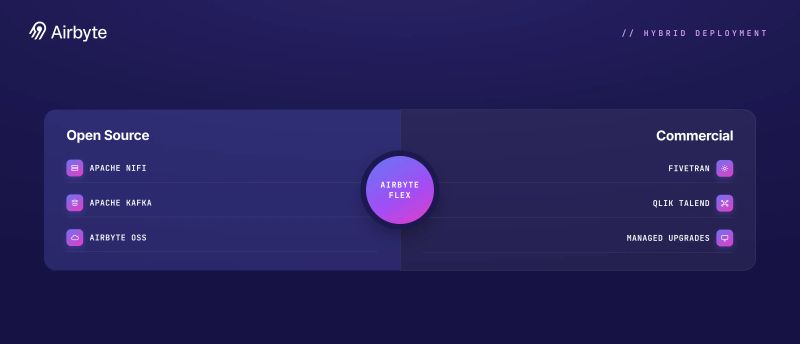

What Tools Support ETL in Hybrid Cloud Pipelines?

Hybrid ETL pipelines may combine open-source and commercial tools. Before selection, verify connector upgrade behavior and whether the platform supports required recovery, schema compatibility, deletion, and residency capabilities.

Open-Source Frameworks

Infrastructure and engineering time determine costs. Your team owns connector upgrades, Kafka capacity, schema management, replay procedures, monitoring, and recovery testing.

Commercial Platforms

Licensing or usage fees apply, and you depend on vendor timelines for new features. Evaluate whether the platform can place its data plane inside each approved boundary, because a cloud-only connector may expose an on-premises source to WAN interruptions or move restricted fields outside their permitted region. Usage-based charges can also rise with replicated volume, reloads, and ongoing egress.

Mixed Deployment Approach

You may run sensitive workloads on open-source software for control, while using commercial platforms for SaaS extractions to reduce operational effort. Evaluate every tool against three questions:

• Can you deploy it where your data actually sits?
• Will its pricing or hosting model remain affordable later?
• Does it offer connector coverage for the sources and destinations you need today and plan to add?

These answers expose deployment constraints, cost risks, and missing connector coverage before they become operating constraints.

Choose based on deployment control and operating capacity, because a poor fit can weaken recovery and push data beyond approved boundaries.

How Do Open Table Formats Improve Cross-Cloud Portability?

Open table formats improve portability by separating shared storage from the engines that read and write it. They let multiple engines access shared object-storage data without forcing every workload through a proprietary warehouse representation.

Compare Format Architecture

The formats use different metadata and update architectures, which shape their read, write, and maintenance behavior. Apache Iceberg tracks snapshots through metadata files, manifest lists, and manifests. Delta Lake records ordered commits and checkpoints in its transaction log. Apache Hudi offers Copy-on-Write and Merge-on-Read layouts for different read and update profiles.

For hybrid architectures, the practical benefit is separating storage from compute. On-premises and cloud engines can read the same Parquet-backed table through a compatible catalog. This approach lets multiple destinations share one table. Iceberg's REST catalog protocol also provides a common API for catalog access.

Vendor implementations differ in namespace support, write support, the issuing of short-lived storage credentials, and refresh behavior. Shared Parquet files alone provide only part of the interoperability that a hybrid pipeline requires.

Plan Interoperability and Maintenance

Frequent CDC writes can create many small files. Hudi Merge-on-Read moves some write cost into asynchronous compaction, while Copy-on-Write pays more during updates to simplify reads. Delta and Iceberg also have engine-specific concurrency and feature constraints.

Choose a format only after testing every required writer, reader, catalog, and recovery operation.

Trigger maintenance from table conditions, supplemented by a fixed schedule. Track file count, average file size, delete ratio, metadata-file growth, and query-planning time.

Run compaction when those indicators cross tested limits. Then expire snapshots and remove orphan files only after their retention windows exceed the longest expected write and recovery operation.

Choose a Format for Your Workload

Choose the format according to the engines, update pattern, and maintenance capacity you can support.

Whichever format you select, its compaction, metadata cleanup, and recovery requirements become ongoing operating obligations.

How Can Hybrid Pipelines Keep AI and Retrieval Data Products Current?

Treat AI agents, retrieval stores, and governed AI data products as downstream consumers of the same replication architecture. For these consumers, apply CDC events as idempotent upserts, propagate hard and soft deletes, and retain the source version or log position for each update.

Outdated retrieval information can degrade RAG performance, so connector lag measures only delivery progress. Verify that queries can see each update. Track source commit time, destination acknowledgment, and query-visible latency. Measure source-to-query freshness as T_queryable_at_destination − T_committed_at_source.

Confirm each deletion by checking that the record no longer appears in retrieval results. Propagate database deletes through document stores, vector indexes, keyword indexes, caches, and compacted logs. Monitor delete-to-query-invisible latency separately from upsert freshness.

What Are the Best Practices for Long-Term Success in Hybrid ETL?

Long-term success requires portable deployments and early data standardization. You also need automated testing across on-premises and cloud environments.

Design for Portability

Package extractors, processors, and loaders in containers, and keep orchestration declarative. Provider-specific features increase vendor lock-in when costs spike or architectures shift.

Achieving portability requires testing container images, identity mappings, secrets, storage APIs, network policies, and observability exporters in every environment you support. Define the minimum portable interface and isolate provider-specific refinements behind adapters so processing logic and recovery procedures remain portable. This lets you use a managed queue or warehouse feature without embedding it throughout processing logic and recovery procedures.

Standardize Data Early

Define a canonical model for core entities, enforce UTF-8, and normalize formats like dates and decimals at the first hop. Early standardization reduces schema drift and prevents brittle "patch-and-pray" fixes.

Assign ownership and compatibility rules to each canonical schema. Additive nullable fields can usually move forward safely, while renames, removals, precision reductions, and semantic changes require versioning or a coordinated migration.

Automate Testing and Deployment

Treat pipelines like applications by triggering automated tests on every merge to validate schemas, data quality, and rollback procedures. Run CI/CD flows across both on-premises and cloud staging environments to catch issues before production.

Test failure paths by restarting a connector between reading and acknowledging an event to verify deduplication, then replay an interval after a destination rollback. The same test plan should simulate an expired PostgreSQL WAL or MySQL binlog position and confirm that snapshot recovery preserves row uniqueness.

Network tests should interrupt the primary route long enough to exercise backup convergence, queue growth, and backpressure. Deployment gates should reject incompatible schemas and verify that secrets, roles, and residency policies match the target environment.

How Do You Build in Compliance from Day One?

Rotate encryption keys regularly and run automated policy checks to reduce breach risks. Implement the checks as a deployment gate for every pipeline route.

Preserve Audit Evidence

Keep immutable audit logs in a write-once, read-many (WORM) store so you can prove compliance during audits or incident forensics. Encoding audit and compliance controls in your pipeline code and infrastructure-as-code templates avoids costly retrofits when regulations evolve.

Approve Cross-Border Paths

Governance must record residency, purpose, lineage, retention, and the legal basis for each cross-border path. Use these records to decide whether to approve a source-to-destination path. Verify the source and destination regions and the approved transfer mechanism. Then confirm destination field permissions, the retention period, and required contracts.

Document these controls so failed checks block release and avoid audit findings. Test deletion propagation and retention expiry in staging, then preserve the results in the audit record. A change to the destination, data classification, or transfer purpose requires a new review because it can alter the reason the route was approved.

Block deployment when a destination sits outside an approved residency boundary. Also block deployment when a restricted field lacks masking or tokenization.

Map Obligations to Controls

Map each regulatory obligation to a testable control. Access policy serves as one part of the compliance program. Apply relevant GDPR rules to determine whether you may transfer personal data to a third country or international organization. RBAC determines who may access it after transfer.

For HIPAA workloads, determine whether the cloud provider is a business associate. Activate the route only after you have any required business associate agreement in place.

How Airbyte Flex Helps Hybrid ETL Pipelines

Airbyte Flex supports hybrid deployment through a hybrid control plane. Airbyte runs the control plane, while the customer controls the data plane so data, credentials, and compute stay in-boundary.

Flex provides access to 600+ replication connectors for moving data across on-premises and cloud systems. Airbyte's open-source foundation and portable deployment model reduce dependence on a single hosting model. Airbyte supports 2M+ pipelines daily and 26B records daily, and 18% of the Fortune 500 use Airbyte. An economic impact report found 239% ROI.

Across the sovereignty spectrum from Airbyte Cloud through Airbyte Flex to open source, Airbyte Flex remains the primary fit for teams that need managed orchestration with customer-controlled data movement. Airbyte is also available as open source for teams that want to completely self-host.

What Conclusion Should Guide Your Next Steps?

Design hybrid ETL around recovery-aware CDC, controlled transfer volume, enforceable security boundaries, schema compatibility, and pipeline-wide freshness monitoring. Match each workload's movement pattern to its freshness, cost, and recovery requirements.

Get a demo to see how Airbyte Flex supports recovery-aware hybrid ETL.

Frequently Asked Questions

What Makes ETL Pipelines for Hybrid Cloud Environments More Complex for You?

Hybrid setups must deal with variable latency, bandwidth limits, and compliance rules that change across regions. Transfers between on-premises systems and multiple clouds add security, governance, and cost considerations that you need to design in from the start.

How Can You Reduce Network Costs When Transferring Data Across Environments?

You can cut costs by filtering or aggregating data at the edge before transfer, compressing large files, deduplicating records, and avoiding redundant full copies. Incremental or CDC-based approaches also minimize egress fees. Use off-peak scheduling as a capacity-management measure, and confirm any pricing effects under your provider's terms.

What Role Does Security Play in Your Hybrid ETL Pipelines?

Security is critical because data crosses more trust boundaries. Use encryption throughout, consistent role-based access control across environments, automated field-level masking, and immutable audit logs. These measures protect sensitive data and simplify compliance with regulations like GDPR or HIPAA.

Should You Use Open-Source or Commercial Tools for Hybrid ETL Pipelines?

The choice depends on your team and use case. Open-source frameworks like Kafka give you control over infrastructure and deployment, but they require more engineering effort. Commercial platforms reduce operational overhead with pre-built connectors and managed services, but they add licensing costs and offer less deployment flexibility.
