How to Use CockroachDB for Data Analytics?

A well-structured database is the foundation of effective data analytics. Having a good database simplifies data storage, retrieval, and querying to generate valuable analytical insights. There are several databases that you can use for efficient data analysis.

Out of these databases, CockroachDB is a suitable choice if you want better data accessibility, integrity, and lower latency. According to DB Engine’s database ranking, CockroachDB ranks 37th among the popular relational databases, reflecting its wide usage.

Let’s understand how you can use CockroachDB for analytics in detail, along with its high-performing features and some real-world use cases. Using this information, you can analyze your enterprise data for various business operations and enhanced revenue generation.

CockroachDB Overview

CockroachDB is a cloud-based, distributed SQL database that you can utilize for highly scalable operations. It is a strongly ACID-compliant data system that enables you to manage OLTP workloads efficiently. However, you can also use CockroachDB for handling OLAP workloads.

To interact with CockroachDB, you can leverage SQL API, CockroachDB CLI, and Postgres-compatible libraries. These tools allow you to execute queries for retrieving, modifying, and managing data. CockroachDB supports structured as well as semi-structured data, making it a versatile choice for various use cases.

Some additional capabilities of the CockroachDB database are:

• PostgreSQL-compatibility: CockroachDB supports PostgreSQL wire protocol, a binary protocol that enables you to establish communication between a PostgreSQL client and a server. Due to this, you can migrate applications based on PostgreSQL in the CockroachDB environment without changing the application code. Check the CockroachDB vs PostgreSQL article to understand their differences.‍
• Geo-partitioning: Geo-partitioning feature allows you to segment databases based on geographic location. This feature reduces the latency in accessing data stored in CockroachDB and facilitates data localization, which is necessary to comply with regional data regulatory frameworks.
• ‍Scalability: Due to its distributed architecture, you can scale the CockroachDB database horizontally by adding more nodes to the cluster. This divides the increased data load across multiple machines, facilitating parallel query processing and reduced latency.
• ‍Effective Data Security: While using CockroachDB, you can ensure data security through authentication, encryption, authorization, and non-repudiation mechanisms. With the help of such robust security features, you can protect sensitive enterprise data and comply with global data protection guidelines like GDPR.
• ‍Multiple Deployment Options: CockroachDB can be deployed either using a Self-hosted or Cloud version. The former offers flexibility and customization benefits, while the latter eliminates the infrastructure management needs. The Cloud version further consists of three plans: CockroachDB Standard, CockroachDB Basics, and CockroachDB Advanced, each offering different functionalities.

‍CockroachDB offers several similar features to MongoDB, such as distributed architecture, support for various data types, geo-partitioning, and many more. However, it diverges significantly in several aspects. For a comprehensive understanding of their differences, you can refer to CockroachDB vs MongoDB guide.

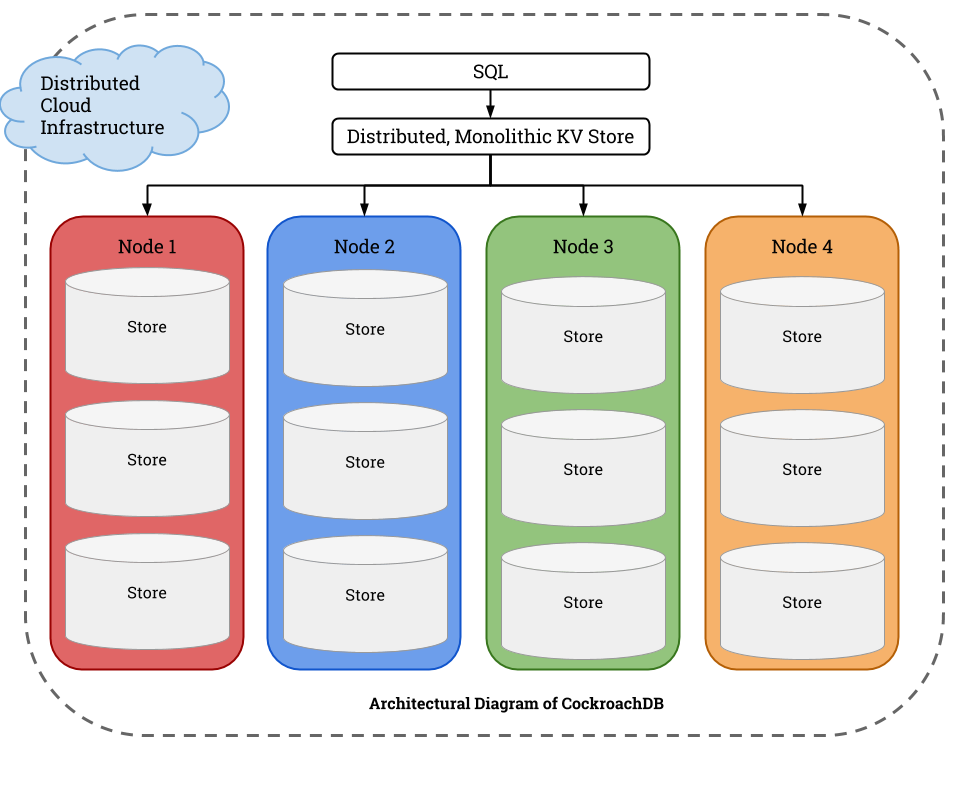

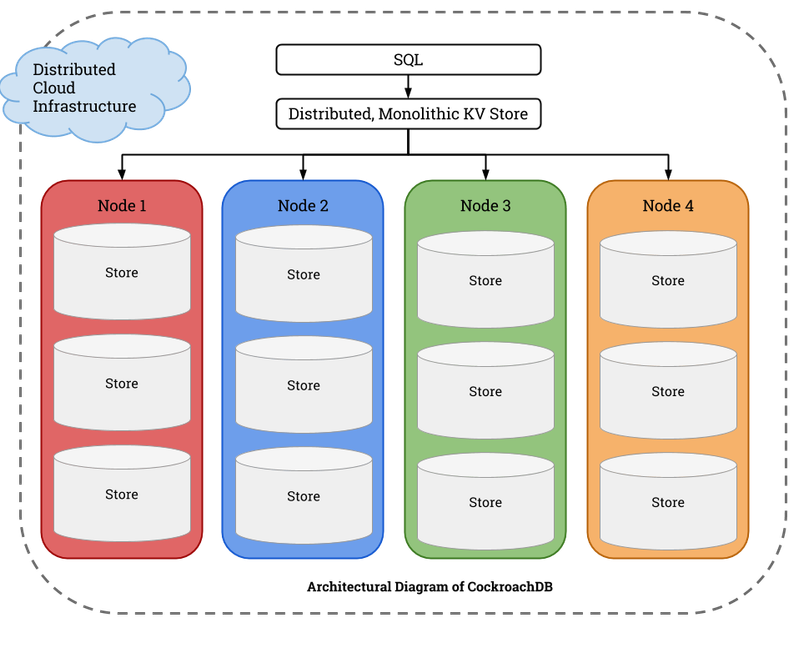

CockroachDB's Architecture for Data Analytics

Some important components of CockroachDB architecture include:

Cluster and Nodes

CockroachDB operates as a distributed SQL database, where a cluster consists of multiple interconnected nodes that work as a single logical server. Each node is an individual instance that helps you manage transactions, data storage, and query processing within CockroachDB. Every cluster has its own authorization hierarchy, as it allows you to define who among your team can access the cluster based on their role.

Range

All your data is stored in the form of key-value pairs in a sorted map in the CockroachDB. This keyspace is classified into smaller parts called ranges; every key belongs to a particular range.

Layers

The CockroachDB database consists of various layers, where each layer plays a specific role. The different layers are SQL, transactional, distribution, replication, and storage.

How to Perform Data Analysis With CockroachDB?

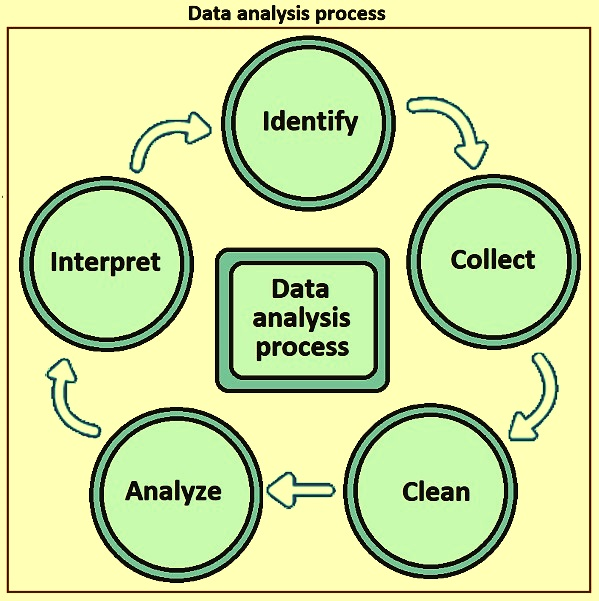

To perform data analysis with CockroachDB, you need to collect, transform, analyze, and interpret data to extract meaningful information. Follow these steps to begin data analysis using CockroachDB:

Step 1: Install CockroachDB

According to your infrastructural requirements and organizational policy, install CockroachDB. You can also use Kubernetes or Docker to host CockroachDB on your local machine.

Step 2: Create A CockroachDB Table

Create a table in the CockroachDB cluster using the CREATE TABLE statement. Before executing this statement, you should name your table, define columns, select the primary key column, and include any additional constraints.

This code snippet generates a users table within the movr database and max_schema schema:

CREATE TABLE movr.max_schema.users (
   id UUID PRIMARY KEY,
        city STRING,
        name STRING,
        address STRING,
        credit_card STRING,
        dl STRING
);

Step 3: Load Data into the Table

Use the INSERT command to load the required data records into the CockroachDB table. It is advisable to perform multi-row INSERT statements for bulk loading. However, do not use batches of more than 100,000 rows, as it can slow down the database operations.

INSERT INTO movr.max_schema.users (id, city, name, address, credit_card) VALUES
    ('c28f5c28-f5c2-4000-8000-000000000026', 'new york', 'Petee', '101 5th Ave', '1234567890');

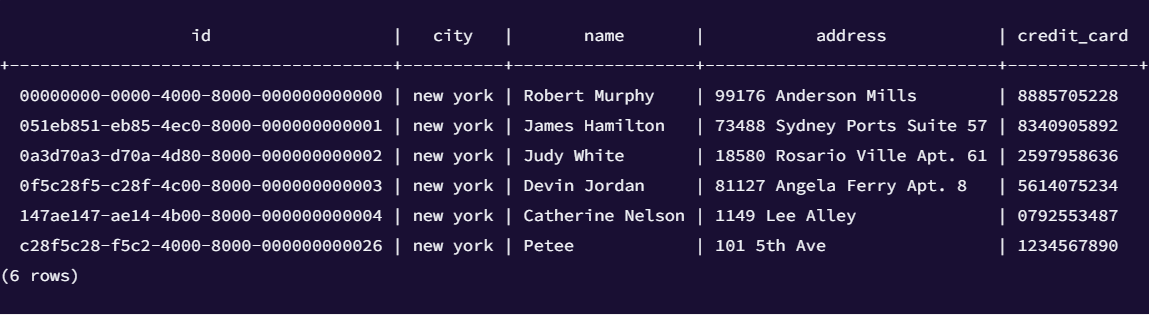

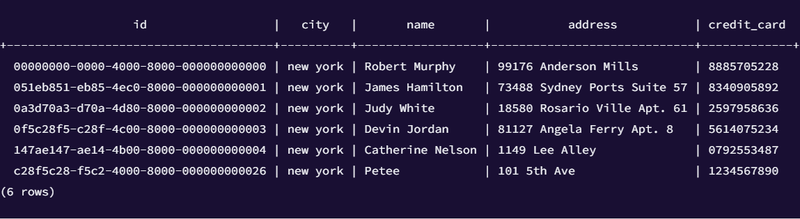

To view the table, execute the following statement:

SELECT * FROM users WHERE city='new york';

If you want to insert new values in a table that contains columns with UNIQUE constraints, you can use the ON CONFLICT clause. It allows you to update instead of inserting such data records. While transferring CSV data into CockroachDB, you can opt for bulk insert by using the IMPORT INTO command.

Step 4: Clean Data

Next, you can clean and transform the data using various techniques. This involves the removal of duplicates or missing values to convert data into a standardized form.

For example, to handle missing values, use the below code:

SELECT * FROM movr.max_schema.users
WHERE city IS NULL OR name IS NULL OR address IS NULL OR credit_card IS NULL;

You can replace null values as follows:

UPDATE movr.max_schema.users
SET name = 'Unknown'
WHERE name IS NULL OR name = '';

UPDATE movr.max_schema.users
SET credit_card = '0000000000'
WHERE credit_card IS NULL OR credit_card = '';

UPDATE movr.max_schema.users
SET address = 'Not Available'
WHERE address IS NULL OR address = '';

Step 5: Perform Data Analysis

After cleaning, you can analyze the consistent data using SQL statements such as JOIN, WHERE, ORDER BY, and GROUP BY. To conduct an in-depth analysis, you can utilize subqueries, common table expressions (CTEs), window functions, and pivot tables.

‍Due to SQL-based data querying, the operations used here resemble the approach utilized for SQL Server data analytics. You can go through CockroachDB vs SQL Server in detail to understand the differences between them.

Step 6: Visualize Your Data

Once you finish data analysis, you can visualize its outcomes to understand them better. To achieve this, you can use data visualization tools such as Power BI, Tableau, or Google Charts.

Your CockroachDB data analytics process is now complete. Let’s understand what you can do with the results of this analysis.

When to Use CockroachDB for Data Analytics?

You can leverage CockroachDB for diverse use cases. Some of its real-world applications include:

Identity Access and Management (IAM)

You can use CockroachDB in IAM systems. The built-in replication and geo-distribution ensure the availability of data across multiple nodes. On the other hand, ACID transactions facilitate data integrity. All these features enable you to authenticate and authorize secure data access and analysis anywhere quickly.

Gaming

While managing gaming platforms, you can leverage CockroachDB to handle increased player activity. If the number of players increases, the distributed architecture of the database facilitates concurrent operations without system failures. The data replication feature further assists in fault tolerance by preserving gaming data, including player progress and leaderboard rankings.

Airbyte, Your Data Integration Partner

Data integration is critical for performing robust analytics in CockroachDB. This process involves extracting and consolidating data from various sources into CockroachDB. Depending on your data requirements, you can choose between the CockroachDB ETL or ELT integration approaches.

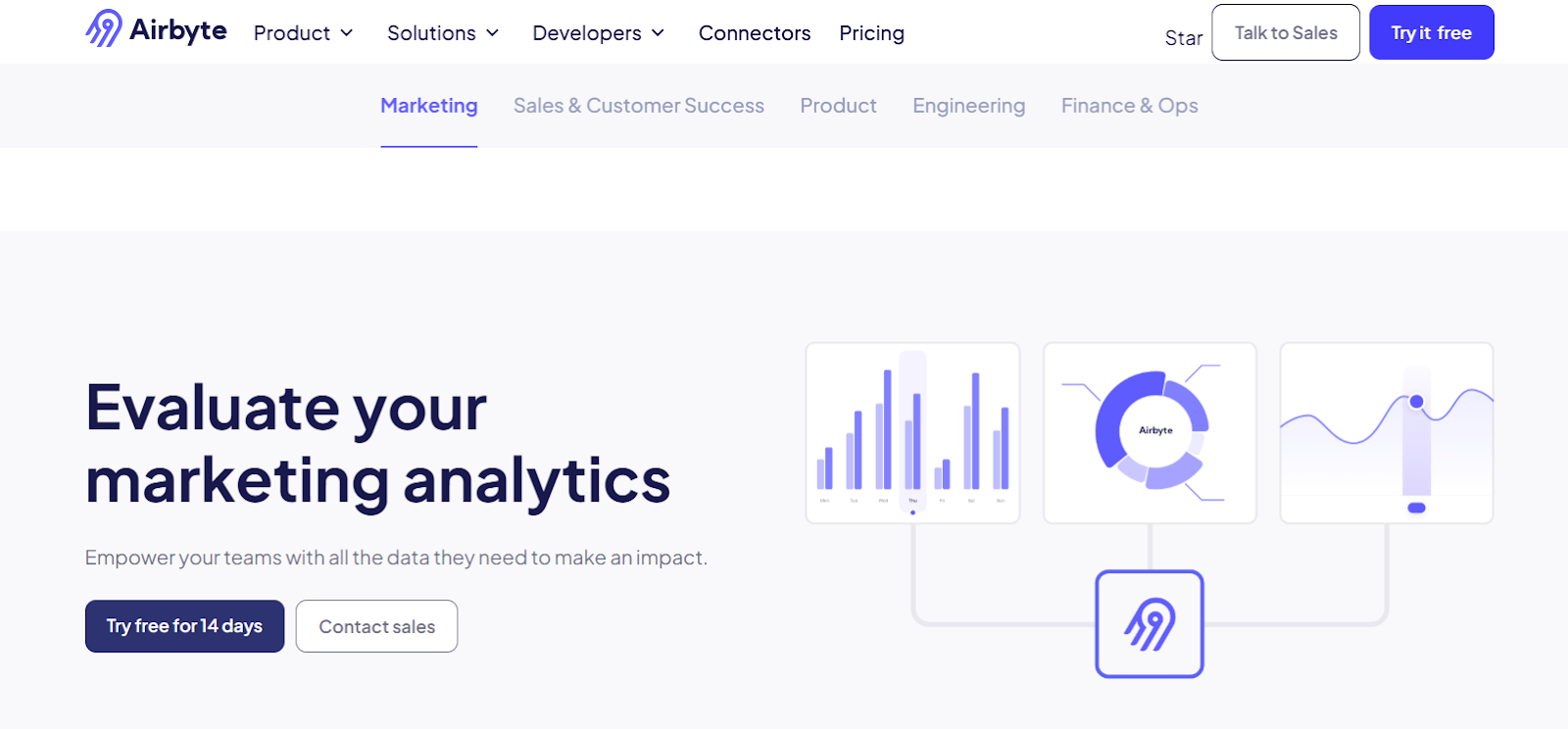

To integrate data effectively, you can utilize Airbyte, an efficient data movement platform. It offers a vast library of 550+ pre-built connectors. You can use these connectors to retrieve data from any source and load it to CockroachDB for further processing and analysis.

Once you load data, you can clean and transform it by integrating Airbyte with dbt, a data transformation tool. Further, you can analyze the standardized data to generate insights for various business operations and enhanced decision-making.

Some additional features of Airbyte are as follows:

• Flexibility to Develop Custom Connectors: Airbyte provides several options for building custom connectors. This includes Connector Builder, Low Code Connector Development Kit (CDK), Python CDK, and Java CDK.‍
• AI-powered Connector Development: While developing custom connectors using Connector Builder, you can use AI assistant. It automatically pre-fills necessary fields, reducing setup time. The AI assistant also provides intelligent suggestions to fine-tune the connector configuration process.‍
• Change Data Capture (CDC): Airbyte offers a CDC feature that enables you to capture changes made to source data systems incrementally. You can replicate these changes in the destination to ensure data synchronization and consistency.‍
• Streamline GenAI Workflows: You can directly load semi-structured and unstructured data in vector store destinations supported by Airbyte. This includes popular vector databases such as Pinecone, Chroma, Milvus, and Weaviate. You can then integrate these vector stores with LLMs to execute correct contextual searches for enhanced GenAI operations.

Conclusion

The CockroachDB database is critical for your organization if you want to ensure high data availability, consistency, and scalability. This blog gives you a comprehensive overview of how to use CockroachDB for analytics.

The database’s ACID compliance feature enables the management of the OLTP workload. On the other hand, geo-partitioning and data replication facilitates better data availability and reduces latency, supporting faster data processing. All such capabilities make CockroachDB an ideal solution for effective data analytics.
