External Secrets Management for Data Pipelines: Why Your Integration Platform Shouldn't Store Credentials

Most data teams still stuff database passwords and API keys directly into orchestration configs, job parameters, or environment variables. The moment an attacker gets into that control plane through phishing, a misconfiguration, or a zero-day exploit they inherit access to every connected system. One set of compromised credentials can spread across staging and production environments, touching customer records, payment data, and analytics stores before anyone notices.

This isn't a theoretical risk. Data teams report finding hard-coded secrets that haven't been rotated in years, credentials appearing in debug logs, and platform administrators with unnecessary access to production systems. When you treat credentials as configuration instead of securing them externally, your entire integration layer becomes a single point of failure.

What Is an External Secret Manager and How Does It Work?

An external secret manager is a dedicated service that lives outside your ETL or integration tools. Instead of hard-coding passwords or API keys in job configs, your pipelines authenticate to a purpose-built vault such as HashiCorp Vault, AWS Secrets Manager, Azure Key Vault, or Google Secret Manager and pull the credentials they need at runtime through encrypted APIs. Secrets never sit in config files, remaining isolated from logs, debug dumps, and platform administrators.

The workflow is straightforward: a workload proves its identity (often with a short-lived cloud IAM role), requests a specific secret, and receives a time-bound token or credential. Rotation policies run automatically in the vault, so new credentials propagate without code changes. Audit logs capture every read, update, and rotation event, satisfying compliance requirements in one place.

Projects like the Kubernetes External Secrets Operator demonstrate this model in practice, continuously syncing cluster secrets from external providers. Cloud teams extend the same pattern on Amazon EKS with attribute-based access controls in AWS Secrets Manager, proving that treating credentials as ephemeral services rather than static configuration removes a critical attack path from your data pipelines.

Why Integration Platforms Should Never Store Credentials?

When your ETL or reverse-ETL tool keeps database passwords and API keys inside its own metadata tables, it creates a dangerous concentration of risk. An attacker who compromises the platform through a leaked admin token, a misconfiguration, or even a zero-day exploit instantly inherits the keys to every connected source and destination.

Storing credentials internally creates multiple security and operational problems:

• Concentration risk turns intrusions into catastrophes. Recent breach analyses show that compromised credentials enable unauthorized access and large-scale data theft. Concentrating those credentials behind one control plane means any intrusion cascades across your entire data estate.


• Insider risk violates least-privilege principles. Platform administrators, support engineers, and CI jobs often gain blanket read permissions they never actually use. During troubleshooting, those same secrets can surface in plaintext within logs or stack traces, where they linger long after the incident is closed.


• Scattered storage makes revocation nearly impossible. Nobody knows where each secret actually lives. Credentials that live inside an integration platform rarely rotate on schedule. Shared service accounts span multiple connectors, so revoking one password risks breaking dozens of jobs, encouraging teams to postpone rotation indefinitely.


• Static keys become stale and over-privileged over time. Externalizing secrets removes that inertia: rotation can happen automatically, and any individual leak stays contained to a single, short-lived token instead of your entire data estate.

Each of these problems compounds the others, turning what should be a secure integration layer into your most vulnerable attack surface.

How External Secret Managers Strengthen Security and Compliance?

Transitioning from embedded credentials to external secret management transforms how your organization handles data pipeline security. An external secret manager isolates every key, rotates it on schedule, enforces least-privilege access, and records an immutable audit trail you can hand to auditors without redacting log files.

Key security improvements:

• Reduced blast radius. When credentials live in a dedicated vault, an attacker who compromises your ETL platform can't dump a configuration table and walk off with database passwords. Containment limits damage to a single, tightly scoped token rather than your entire infrastructure.


• Automated rotation without downtime. Tools like External Secrets Operator sync Kubernetes workloads with vault backends so expired credentials are replaced before they can be exploited. You set the rotation schedule; the operator enforces it and updates running jobs automatically.


• Least-privilege enforcement at the vault layer. Role-based or attribute-based controls ensure each connector receives only the secret it needs. Every access request is logged with user, time, and action, producing the evidence sets auditors demand for SOC 2, GDPR, and HIPAA reviews.

Financial institutions have shifted to dynamic credential retrieval for nightly syncs: jobs authenticate to the vault, pull a short-lived token, run, and let the token expire. The change slashed privileged credential lifetime from months to minutes and reduced audit prep to exporting a single JSON log.

This approach achieves true separation of duties. Security teams manage keys, data engineers manage code, and neither side needs full access to the other's domain.

How External Secrets Management Supports Hybrid and Multi-Cloud Deployments?

Running pipelines across multiple clouds and on-prem environments creates credential management nightmares when handled traditionally. Each new region, cluster, or SaaS tool adds another config file to protect. When secrets are scattered across environments, you're chasing rotations manually, and any leak can cascade everywhere.

External secret managers solve this by centralizing credential management into one policy surface. Platforms like AWS Secrets Manager or HashiCorp Vault, paired with the Kubernetes-native External Secrets Operator, let workloads request credentials at runtime instead of storing them locally. You can scope vaults to specific regions, keeping European keys inside EU data centers and U.S. keys onshore, limiting the impact of any potential breach.

Each application receives short-lived tokens on demand, so you enforce identical rotation and expiration windows everywhere. Centralized audit logs capture every request, identity, and IP, the evidence you need for SOC 2, DORA, or GDPR reviews.

Financial institutions juggling on-prem databases and cloud analytics use this architecture to review one consolidated log instead of parsing siloed alerts, dramatically reducing both risk and response time.

How Airbyte Enterprise Flex Implements External Secrets Management?

Moving from theory to practice, Airbyte Enterprise Flex demonstrates how external secret management works in production environments. Built for teams that refuse to hand production credentials to third-party clouds, its hybrid control plane keeps orchestration in Airbyte Cloud while all connectors (600+ of them) run in a data plane you control. Traffic flows only outbound from your data plane, so attackers have no open ports to probe. You keep the keys; Airbyte never sees them.

Each connector fetches credentials on demand from your existing vault. When a sync starts, the agent authenticates to AWS Secrets Manager, HashiCorp Vault, or Azure Key Vault, pulls a short-lived token, and erases it from memory when the job finishes. No secrets persist in project files, logs, or the control-plane metadata store.

Wiring Flex to a vault requires a single YAML stanza:

secretManager:
  type: AWS_SECRET_MANAGER
  secretName: "prod/snowflake"
  region: us-east-1

During execution, the agent resolves prod/snowflake, injects it into the connector container, and revokes the session when the task ends. Rotation policies you set in the vault propagate automatically with no pipeline redeploys required.

Flex delivers cloud convenience without surrendering control, exactly what regulated industries need.

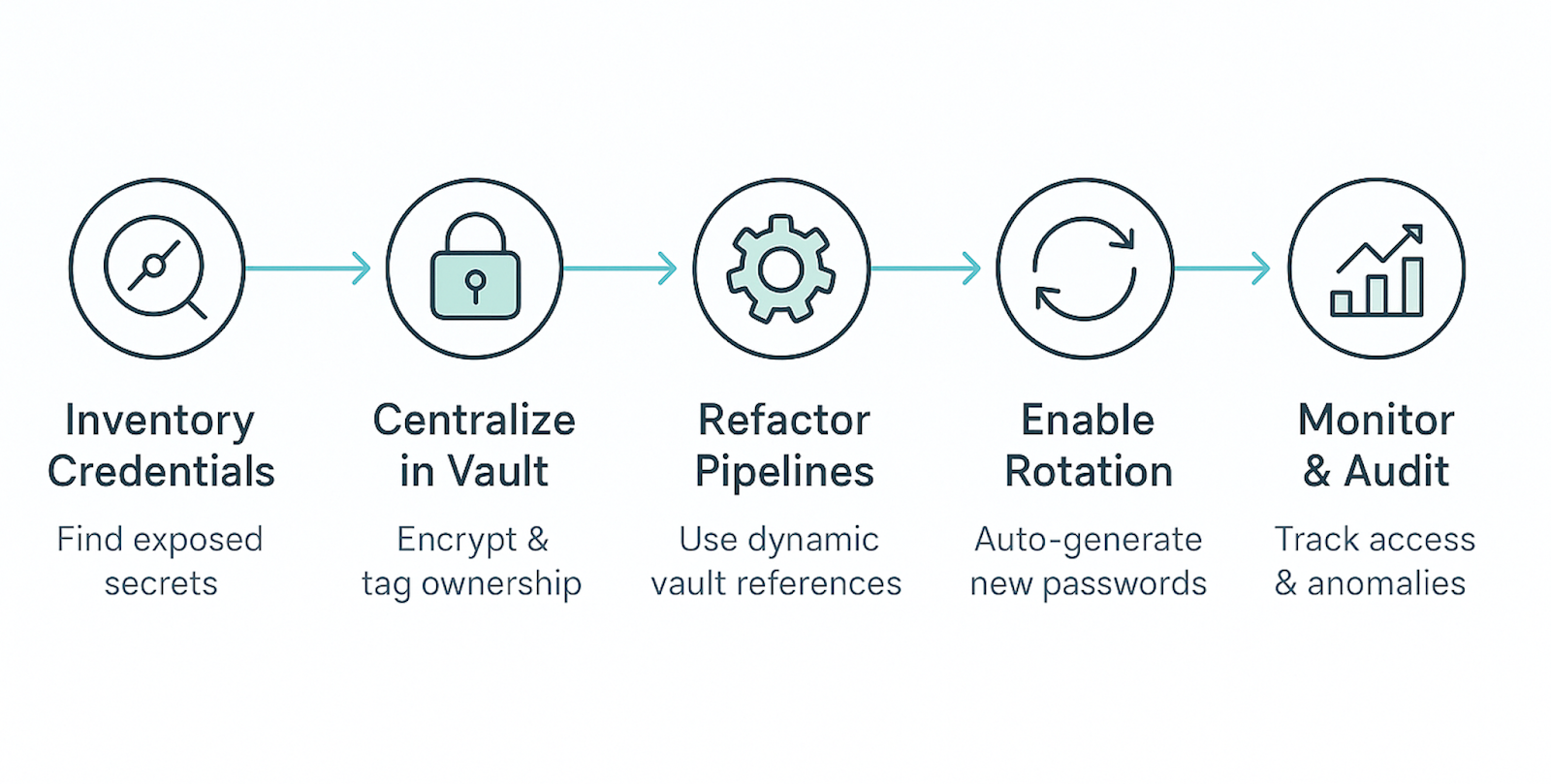

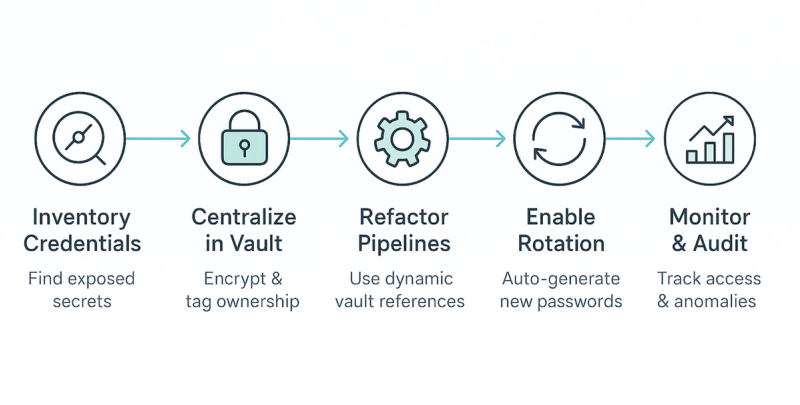

How to Integrate an External Secret Manager Into Your Data Pipeline Architecture?

Implementing external secret management requires a systematic approach to inventory, migrate, and secure your credential infrastructure. Hard-coded credentials in your data pipelines create vulnerabilities that attackers actively hunt for, but you can eliminate this risk by moving secrets into a dedicated vault that delivers short-lived tokens just when your pipelines need them.

1. Inventory Every Credential Across Your Data Infrastructure

Walk through orchestration tools, scripts, and environment variables to find where passwords or API keys are exposed. You'll typically discover hard-coded secrets in job parameters or source configs, a common vulnerability pattern that security teams flag repeatedly during audits.

2. Centralize Everything in a Vault

Import all discovered credentials into an external manager like AWS Secrets Manager or HashiCorp Vault. Each secret gets encrypted, versioned, and tagged for ownership, creating a single source of truth for credential management.

3. Refactor Your Pipelines for Runtime Credential Retrieval

Replace static values with vault references. Kubernetes users can use External Secrets Operator to inject secrets automatically, while other environments can use direct API calls to fetch credentials on demand.

4. Enable Rotation Policies With Appropriate Expiry Windows

Set auto-rotation so the vault generates new database passwords and propagates them without downtime. This eliminates the "never-changed since launch" problem that data security audits consistently identify as a major risk factor.

5. Implement Monitoring and Audit Logging

Stream vault audit logs to your SIEM and watch for unusual access patterns or failed fetch attempts. This creates the audit trail compliance teams need while providing real-time security visibility.

A global manufacturing firm implemented this approach with AWS Secrets Manager, issuing region-specific 15-minute tokens to each plant's data plane. When one facility was compromised, the breach stayed contained, something impossible with embedded secrets that exposed the entire network.

The pattern works consistently across cloud-native clusters, hybrid stacks, and on-premises servers. Use cloud IAM roles, Kubernetes service accounts, or hardware-backed keys, depending on your environment, and the security model scales everywhere.

Why Should External Secret Management Be a Core Part of Your Data Strategy?

You can't claim data sovereignty if credentials sit inside every pipeline file. Externalizing secrets removes a high-value target from your ETL servers, giving you immutable audit logs and automated rotation without manual overhead. Teams report faster incident response and simplified compliance reporting once they centralize secret management. As data architectures grow more complex with hybrid clouds and distributed processing, external secret management becomes the foundation that keeps everything secure and auditable.

Airbyte Enterprise Flex processes credentials through your vault while delivering 600+ connectors with hybrid deployment across cloud and on-premises environments. Keep ePHI in your VPC while enabling compliant data pipelines, or meet cross-border data residency requirements without feature trade-offs. Talk to Sales to discuss your external secrets management architecture and hybrid deployment requirements.

Frequently Asked Questions

What's the difference between storing secrets in environment variables and using an external secret manager?

Environment variables load secrets at application startup and keep them in memory throughout the process lifecycle. External secret managers fetch credentials dynamically at runtime and expire them after use. This means compromised application memory or process dumps expose long-lived credentials with environment variables, while external managers limit exposure to short-lived tokens that self-destruct. External managers also provide centralized audit logs and automated rotation that environment variables cannot deliver.

Can I use an external secret manager with existing data pipelines without major refactoring?

Yes, most modern data platforms support vault integration through configuration changes rather than code rewrites. You replace hard-coded credential values with vault references (like ${vault:prod/database}) in your pipeline configs. The platform's secret manager client handles authentication and retrieval at runtime. Kubernetes users can deploy External Secrets Operator to sync vault secrets into cluster namespaces automatically. The refactoring effort typically involves updating configuration files rather than rewriting pipeline logic.

How does external secret management work in air-gapped or highly restricted environments?

Air-gapped environments can run on-premises secret managers like HashiCorp Vault Enterprise or cloud-provider vaults in disconnected regions. Your data planes authenticate to the local vault instance using hardware security modules or certificate-based authentication. Secrets never transit the internet, and rotation happens within your secure perimeter. For hybrid architectures, you can maintain separate vault instances per security zone, with automated replication policies that respect your network boundaries.

What happens if the external secret manager becomes unavailable during a pipeline run?

Production-grade secret managers provide high-availability configurations with multi-region replication and automatic failover. Your pipelines should implement retry logic with exponential backoff when vault requests fail. Many platforms cache fetched credentials for the duration of a job run, so temporary vault unavailability doesn't immediately break running pipelines. For critical workloads, you can deploy vault replicas in multiple availability zones and configure your agents to fall back to secondary instances if the primary becomes unreachable.
