Understanding the Hybrid Deployment Model in Cloud Computing
Understand the hybrid deployment model in cloud computing, how it blends on-premises and public cloud, and when enterprises choose it.
A hybrid deployment earns its operational cost only when a single environment cannot satisfy a workload's sovereignty, latency, continuity, or investment constraints. Run it for any softer reason and two estates will add operational risk faster than they add flexibility.
The practical test comes down to three things. You need clear workload boundaries, dependable connectivity, and consistent identity, security, and observability during both normal conditions and outages. Where those foundations are weak, hybrid architecture preserves legacy constraints rather than creating a controlled path to modernization.
TL;DR
- The hybrid deployment model in cloud computing combines on-premises infrastructure with public or private cloud services under a unified management framework.
- Plane separation lets you keep data, credentials, and compute in-boundary while using cloud capacity for analytics, variable demand, or managed services.
- Hybrid architecture adds networking, identity, observability, security, staffing, and cost-management work, all of which has to be tested across both environments before it counts as designed.
- Sovereignty turns on who runs the control plane, who holds the encryption keys, and what happens when the link drops, which residency alone answers for none of.
- Choose hybrid only when sovereignty, latency, continuity, or existing infrastructure requirements justify running two environments.
What Is the Hybrid Deployment Model in Cloud Computing?
A hybrid deployment combines on-premises infrastructure with public or private cloud services and manages both through a unified framework. You place each application or dataset according to its performance, compliance, and cost requirements rather than forcing everything into one environment.

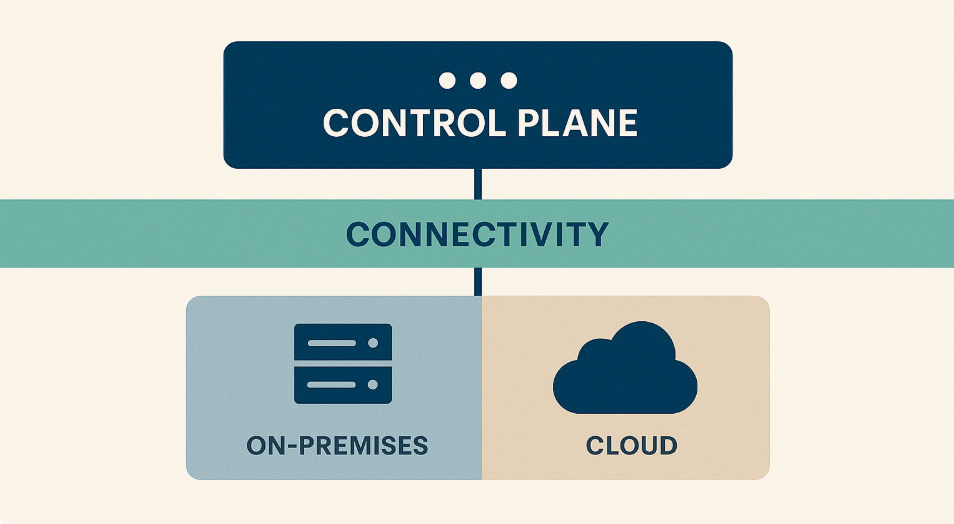

The model operates through three layers. A control plane orchestrates jobs, enforces policy, and provides monitoring across every environment from a single view. A data plane executes workloads and stores records, whether that is an in-house database or cloud object storage. A connectivity layer moves data and commands between sites.
Hybrid describes an architectural pattern, so two vendors can both claim to support it while drawing the line between the planes in very different places. Where each one puts that line decides how much of the estate you actually control.
How Does the Hybrid Deployment Model Work?
Hybrid deployment works by placing each workload where it fits best for performance, compliance, or cost, then coordinating the result. The mechanics break down into six moving parts:
- Workload placement: assigns applications to environments according to performance, compliance, and cost requirements.
- Orchestration: coordinates resources everywhere, enforcing policies and tracking health while workloads execute in their chosen environments.
- Secure connectivity: binds the pieces together through encrypted virtual private networks (VPNs) over public networks, or dedicated links and direct interconnects over private paths.
- Environment synchronization: requires a deliberate data movement strategy. You might mirror critical databases locally, then replicate masked subsets to the cloud for analytics.
- Elastic scaling: expands web front ends into the cloud during demand spikes while regulated records remain inside your boundary.
- Policy-based management: maintains encryption, access controls, and audit logs across the whole estate through standard APIs, with connectors moving data between environments.
Portability sits underneath all six and reaches only as far as the shared abstractions do. Standard Kubernetes objects move between conformant clusters, while provider-specific StorageClasses and Container Storage Interface drivers need environment-specific configuration.
The same applies to identity federation, load-balancer annotations, and ingress controllers, and Container Network Interface assumptions, security policies, and managed-service dependencies all require testing in each environment. Placement decisions only hold if the connectivity underneath them matches what the workload actually demands.
What Connectivity Options Work Best for Hybrid Deployments?
Connectivity is a workload-by-workload choice, because each option carries different capacity and failure characteristics. The table below sets the four common paths against the constraint that usually decides between them.
Resilience turns a connectivity choice into a capacity requirement. Dedicated-connection resiliency guidance calls for active/active links terminating in separate locations. Each path needs enough spare capacity that losing one does not degrade the others, and the same logic applies whichever provider you use.
Reliable operation then depends on testing routing, identity, storage, outage behavior, and orchestration together rather than one at a time.
What Are the Key Benefits of the Hybrid Deployment Model?
The benefits are scalable capacity, in-boundary control of sensitive records, and the ability to blend capital spending with usage-based cloud costs. Each one comes with a condition attached.
Scalability Works Only When the Supporting Limits Do
Routine traffic runs on existing hardware while unpredictable surges expand into the public cloud, which reduces the need to buy idle servers. Scalability holds only when cloud quotas, interconnect bandwidth, application state, and dependent services can carry the additional load.
Define scaling thresholds for capacity use, queue depth, latency, and spend. Pre-provision quotas and test routing and data synchronization before peak demand. Provider quotas and network throughput bound the capacity available to you, and stateful scaling adds replication lag, consistency concerns, and data-transfer costs.
Sovereignty Requires Controls Beyond Residency
You can keep sensitive records in-boundary where data-residency or sector-specific controls require it, while de-identified or less regulated analytics jobs execute in the cloud. Residency answers only half of it.
Assess who operates the control plane, who controls encryption keys, and which legal jurisdictions apply to the provider. Then determine whether the system continues operating when the cloud connection drops. A design that stalls without the control plane offers less sovereignty than its diagram suggests.
Blended Capital and Operating Spending Savings Are Conditional
Blending capital expenditure (CapEx) with operating expenditure (OpEx) reserves capital for baseline workloads. You pay for extra capacity only when you use it. The arrangement avoids the over-build pattern common in on-premises environments where servers sit idle most of the time.
A complete comparison has to include hardware depreciation, hardware usage, facilities, interconnect ports, data egress, duplicate observability and security tooling, software support, and staff capable of operating both estates. Omit those lines and the comparison understates the cost of the second estate. The omissions surface once both estates are running, alongside the continuity requirements of two sites.
How Does Hybrid Deployment Support Disaster Recovery?
Replicating data to the cloud supports a ready-to-launch recovery site, but restarting complete workloads within minutes also requires recovery infrastructure and rehearsed procedures. Define recovery point and recovery time objectives, monitor replication lag, and choose a consistency model that matches the application.
Recovery depends on more than data. Identity services, domain name system (DNS) resolution, encryption keys, networking, application dependencies, and sufficient compute must all be available at the recovery site. Regular exercises test both failover and failback, including how you reconcile data written during the outage when the primary site returns. Minutes-level recovery in particular requires automated steps validated under expected load, which is a higher bar than an annual tabletop exercise clears.
How Does Hybrid Deployment Handle Mixed Workloads?
You can keep sub-millisecond trading systems on bare metal and latency-sensitive manufacturing controls on the factory floor. Customer analytics and large-scale ML training run on cloud services and graphics processing units (GPUs). A unified orchestration layer coordinates workloads across those locations, although migrations still require dependency mapping and environment-specific validation. The coordination work scales with the number of environments you ask that layer to span.
What Challenges Do Enterprises Face in Hybrid Deployments?
Enterprises have to coordinate integration, security, cost management, staffing, performance, reliability, and compliance across both environments at once. The table below pairs each challenge with the design response that contains it.
Treat these as shared design constraints rather than separate cloud and on-premises tasks, because the architecture either resolves most of them or entrenches them.
How Do You Design a Secure Hybrid Deployment Architecture?
Design the architecture by separating control and data planes, centralizing observability, and applying consistent identity and security controls across both environments. Each of the three carries a boundary decision that is easy to defer and expensive to revisit.
Plane Separation Still Lets Metadata Leave
Run orchestration, monitoring, and upgrades in a cloud-hosted control plane while workloads and records stay in your customer-owned data plane. Use outbound-only connectivity where the platform supports it, letting every node initiate its own secure channel. The pattern reduces exposed attack surface and follows the continuous-verification model set out in federal zero trust guidance.
Separation still leaves a channel open. Inventory the metadata sent to the control plane, including hostnames, software versions, node counts, heartbeats, job status, logs, and policy results. Document how each node establishes identity, how certificates or federated tokens rotate, and what happens when the control-plane connection is unavailable.
Centralized Observability Creates Its Own Boundary Decision
Collect logs, metrics, and traces in one place even when jobs execute across multiple regions or data centers. Use declarative templates to encode network rules, encryption standards, and retention schedules as code. Before export, telemetry needs classification, with sensitive payloads removed where possible and buffering limits defined for outages. Local operators also need enough logs retained on site to investigate an incident when the central service is unreachable.
Uniform Security Controls Need a Trust Bootstrap
Use a single identity and access management model and one encryption toolkit across every environment. Implementation depends on a trust bootstrap. Mechanisms such as OpenID Connect (OIDC) federation, X.509 certificates, or Secure Production Identity Framework for Everyone (SPIFFE) identities issue short-lived identities to workloads, alongside synchronized clocks and a renewal path. Define what happens when tokens expire during a wide-area network (WAN) outage.
External key managers create an availability dependency of their own. Reads, writes, or cryptographic operations may stop when the cloud cannot reach a customer-held key. Identity-tier policies follow services across on-premises and multi-cloud environments and apply alongside network rules.
How Do You Choose a Hybrid Deployment Platform?
Evaluate where each platform can run customer-owned data planes, how it handles local keys, and whether its traffic can stay outbound-only. Confirm that a single codebase delivers consistent features across deployment models, and ask which deployment models a given release ships to on the same date. These options sit on a sovereignty spectrum running from managed cloud through hybrid deployment and self-managed infrastructure to air-gapped environments.
Test disconnected behavior before you commit. During outages, some platforms keep existing workloads running but delay deployments, configuration changes, identity renewal, or upgrades until connectivity returns. Permanent disconnection requires a purpose-built platform. A connected platform may tolerate only a temporary interruption, which is a different guarantee than it first appears.

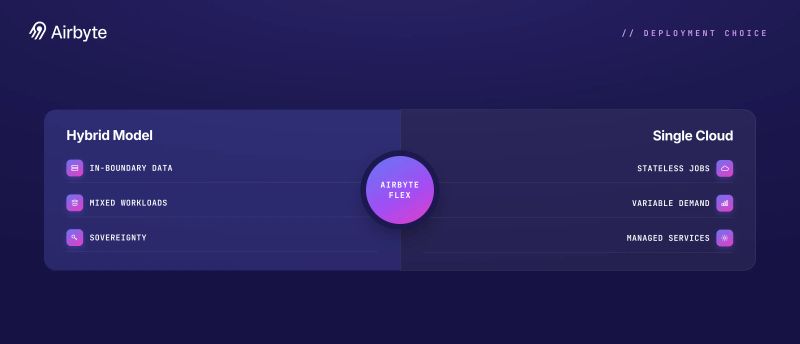

When Is Hybrid Deployment the Right Choice?
A named constraint justifies hybrid. A general preference for flexibility does not. The clearest cases are these:
- Sovereignty rules: require certain records to stay in-boundary while you still want cloud analytics
- Latency-bound workloads: need to run locally, yet you still need burst capacity from the cloud
- Existing hardware investments: still have useful life, and retiring them now would waste capital
- Phased modernization: requires keeping production on on-premises infrastructure while dev and test environments live in the cloud
- Conflicting residency laws: make region-by-region placement essential across global operations
Healthcare shows how narrow the reasoning can get. You might keep patient records in your own data center for control or historical reasons. HIPAA also allows you to store and process electronic protected health information in compliant cloud environments, including for AI diagnostic models.
Choose a single environment when one can meet the workload's requirements. The same applies when your team lacks the staff and operating maturity to run duplicated networking, identity, observability, security, and deployment systems. Stateless, variable workloads with residency and latency flexibility have the least to gain from a second environment. Hybrid can be your end-state architecture, or a stepping-stone that lets you migrate in phases while operations continue.
What Is the Future of Hybrid Deployment in Cloud Computing?
Edge nodes will keep reducing latency for factory floors and trading desks. AI-assisted orchestration will recommend or automate workload placement based on measured cost, latency, capacity, sovereignty, and performance requirements. The same pattern is showing up in AI workloads generally, where first-party records feed retrieval and agent systems that inherit whatever boundary the underlying pipeline enforces.
Automated placement still requires policy guardrails, reliable telemetry from every environment, audit trails, and human approval for sensitive migrations. Placement engines have to account for data gravity, provider quotas, application dependencies, interconnect capacity, and the cost or consistency effects of moving state. Poorly controlled automated movement increases data-transfer costs, configuration drift, and operational risk instead of improving efficiency, which puts the burden back on whichever platform moves the data.
How Does Airbyte Flex Support Hybrid Deployment?

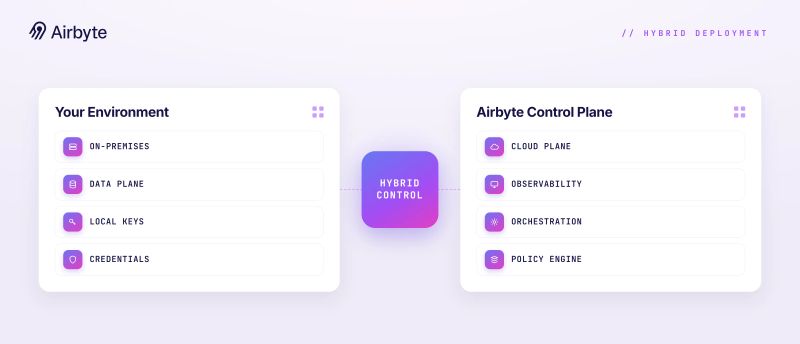

Airbyte Flex applies the plane separation described above to data movement. Airbyte operates the control plane while the data plane, along with your records, credentials, keys, and compute, runs in your environment, though some metadata such as cursor and primary-key values sits in the control plane. The data plane runs on on-premises infrastructure or inside your virtual private cloud. One Airbyte instance can cover multiple regions through multiple workspaces, with each workspace operating within one assigned region.
The same catalog runs in every deployment model. All 700+ connectors are available wherever the data plane runs, on an open-source foundation you can inspect and fork, across deployments moving 26 billion records daily.
The same replicated records are what an in-boundary retrieval stack indexes, so agent reads inherit the boundary and access controls the pipeline already enforces. Whether that split matches your boundary, regional, and operating requirements is the question to take into an evaluation.
Where Do You Start With Hybrid Deployment?
Start by classifying which data, credentials, compute, and workloads must remain in-boundary, then test whether the operational benefit justifies running two environments. That classification does more work than any vendor comparison, because it converts a sovereignty argument into a list of workloads with named constraints. Most of the architecture decisions above follow from it.
Where data movement is part of that boundary, Airbyte runs the control plane while your records, credentials, keys, and compute stay in your environment. The same connector catalog, open-source foundation, and governance controls apply across cloud, hybrid, and on-premises deployments. Airbyte Flex is the deployment model that backs the in-boundary case.
Get a demo to see how that split holds up against your own workload boundaries.
Frequently Asked Questions
What's the Difference Between Hybrid Deployment and Multi-Cloud?
The defining difference is infrastructure scope. Hybrid deployment includes your on-premises infrastructure, while multi-cloud spreads workloads across several public cloud providers and may never touch your own data centers. You can run both patterns at once, using hybrid architecture to connect on-premises systems while distributing cloud workloads across multiple vendors.
How Do You Handle Data Movement in Hybrid Architectures?
Data movement relies on the connectivity layer combined with a replication strategy chosen per dataset. CDC replication streams changes from on-premises databases to cloud warehouses, batch transfer handles large datasets during off-peak hours, and API-based sync covers application data. Encryption in transit and consistent access controls across environments are the constants regardless of which method you pick.
What Compliance Frameworks Support Hybrid Deployment?
Major frameworks accommodate hybrid architectures when the controls are documented across the whole estate. HIPAA requires a Business Associate Agreement when a cloud service provider creates, receives, maintains, or transmits electronic protected health information, plus risk analyses covering all handled data. GDPR, PCI DSS, SOC 2, and ISO 27001 cover hybrid systems when you document transfer mechanisms, responsibilities, system boundaries, controls, and audit trails on both sides.
How Much Does Hybrid Deployment Cost Compared to Pure Cloud?
Cost depends on workload distribution, capacity use, and existing infrastructure. Already-depreciated hardware can lower steady-state costs while cloud burst capacity caps peak spending, so the comparison is per workload rather than per estate. On-premises capacity tends to suit stable, heavily used, data-heavy workloads, and public cloud tends to suit variable, short-lived workloads or teams without infrastructure expertise.
