Data Ingestion Architecture: Key Concepts and Overview

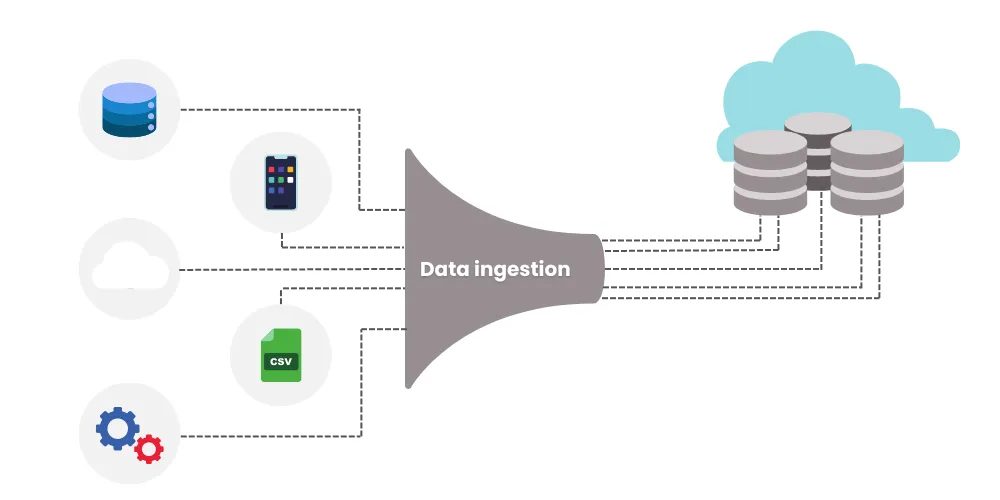

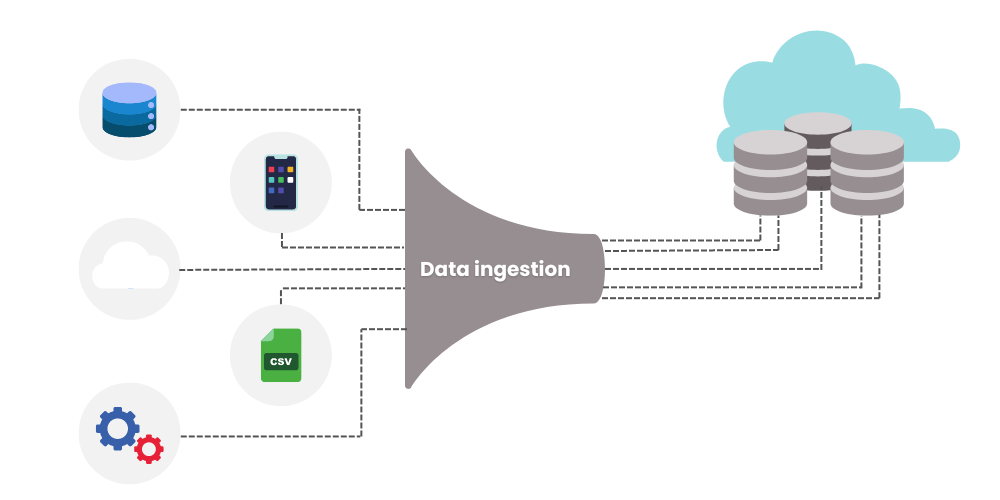

Every business faces a big problem of handling enormous volumes of data. The data comes from different places and in different forms, making it hard to handle and manage. But there's a solution—data ingestion. It's like a giant funnel that facilitates collecting and organizing all this data into one place.

Data ingestion is the critical first step in transforming raw data into actionable insights, which can help drive better decision-making and fuel data-driven initiatives across your organization.

This article will break down data ingestion architecture into easy-to-understand pieces. You will learn about how data is collected, processed, and stored. By the end, you'll clearly understand how data ingestion works and why it's essential.

What is Data Ingestion?

Data ingestion is the process of collecting data from various sources and preparing it for analysis or storage. There are several types of data ingestion:

Batch Data Ingestion

Batch-based data ingestion involves collecting and processing data in predefined sets or batches. Data is extracted from various sources at scheduled intervals (daily, weekly, monthly, etc.) and then loaded into a target system, such as a data warehouse or database.

This approach is suitable for applications where real-time processing is not required, allowing you to handle large volumes of data efficiently while performing complex transformations before loading it into the target system.

Real-time Ingestion

Also known as stream processing, involves capturing and processing data continuously as soon as it becomes available from source systems. Unlike batch-based ingestion, real-time ingestion enables immediate analysis and action on incoming data, making it ideal for time-sensitive applications where up-to-date information is critical.

Real-time ingestion systems utilize streaming technologies to process data in motion, enabling you to respond quickly to changing business conditions and make informed decisions.

Lamba-based Data Ingestion

Lambda-based data ingestion architecture combines batch and real-time processing approaches to achieve accuracy and speed in data processing. In Lambda architecture, incoming data is processed concurrently through both layers. The batch layer handles significant volumes of historical data and computes batch views, while the real-time layer processes recent data instantly and computes real-time views. These views are then merged to provide a unified and consistent view of the data.

Lambda architecture allows you to achieve strong consistency and low latency in data processing. This makes it suitable for a wide range of use cases, including analytics, machine learning, and real-time decision-making.

What is Data Ingestion Architecture?

Data ingestion architecture provides a structured framework for efficiently handling the ingestion process, from data collection to storage. It encompasses the design, components, and flow of data within your organization's data infrastructure. This defines how data is collected, processed, transformed, and stored to support various analytical and operational needs. By understanding data ingestion architecture, you can optimize your data pipelines and ensure seamless data flow across systems.

Benefits of Data Ingestion Architecture

Data silos pose significant challenges, complicating the process of finding, structuring, and analyzing data scattered across multiple sources.

A well-designed data ingestion pipeline offers several benefits:

• Speed and Flexibility: Access to data is important in critical decision-making scenarios. The data ingestion pipeline minimizes downtime, ensuring that data is readily available when needed. This agility facilitates swift data cleansing processes, enhancing overall operational efficiency.‍
• Security: With the increasing prevalence of cyber threats, data security is a top concern for all businesses. A well-designed data ingestion architecture provides robust security measures, safeguarding data against breaches while ensuring compliance with stringent regulations such as HIPAA and GDPR.‍
• Cost-Effectiveness: Efficient data ingestion practices deliver significant cost savings. Automating time-consuming and costly processing tasks through ingestion architecture streamlines data processing, reducing manual intervention and associated expenses. Additionally, well-structured data ingestion frameworks contribute to overall cost-effectiveness, optimizing resource utilization and minimizing overheads.‍
• Simplified Complexity: Navigating through diverse data sources with varying formats and schemas can be challenging. However, a well-planned data ingestion pipeline simplifies this complexity by seamlessly integrating disparate data sources. By standardizing and harmonizing data during the ingestion process, you can overcome the hurdles associated with data variety and inconsistency.

Common Data Ingestion Architecture Patterns

1. Batch Processing

Description: Data is collected over time and processed in large chunks at scheduled intervals.
Use cases: Daily sales reports, weekly customer analytics, monthly financial statements.

2. Real-time Streaming

Description: Data is processed as it arrives, with minimal latency.
Use cases: Live stock market data, social media sentiment analysis, IoT sensor readings.

3. Change Data Capture (CDC)

Description: Only the changes in the source data are captured and processed.
Use cases: Database replication, maintaining data consistency across systems.

4. Pull-based Ingestion

Description: The ingestion system actively requests data from the source at regular intervals.
Use cases: API integrations, periodic data synchronization.

5. Push-based Ingestion

Description: The source system sends data to the ingestion system as it becomes available.
Use cases: Webhook integrations, event-driven architectures.

6. Lambda Architecture

Description: Combines batch and stream processing to balance latency, throughput, and fault-tolerance.
Use cases: Large-scale data processing systems requiring both real-time and historical analysis.

7. Kappa Architecture

Description: Uses a single stream processing engine for both real-time and batch processing.
Use cases: Simplified stream processing systems where batch processing can be simulated.

8. Incremental Loading

Description: Only new or updated data since the last ingestion is processed.
Use cases: Large datasets with frequent small changes, data warehousing.

9. Full Load

Description: The entire dataset is reloaded each time, replacing the existing data.

‍Use cases: Small datasets, situations where data integrity is crucial.

What are the Stages of Data Ingestion?

Data ingestion involves several stages to transform raw data into usable insights. Understanding these stages is essential for implementing efficient data pipelines and ensuring data integrity throughout the ingestion process.

Data Extraction

The data extraction phase marks the beginning of the data ingestion pipeline. Here, raw data is retrieved from its diverse source systems. It includes fetching log files from web servers, obtaining transaction records from operational databases, or downloading data exports from Software-as-a-Service (SaaS) applications. This stage is pivotal as it aims to capture the required data from various sources for subsequent processing and analysis.

Data Validation

After extraction, the raw data undergoes validation to ensure its quality, completeness, and integrity. This validation process includes conducting basic checks such as type validation, range validation, and mandatory field validation. Verifying the data at this stage can identify potential data quality issues early, minimizing the risk of erroneous or incomplete data being processed further in the pipeline.

Data Transformation

Once the raw data has been validated, it proceeds to the data transformation stage. Here, it undergoes a series of transformations to prepare it for loading into the target system. Transformations may encompass various operations such as filtering, cleansing, joining data from multiple sources, standardizing schemas, aggregating, or encoding values. The primary goal of data transformation is to ensure that the data is in a consistent and usable format for subsequent analysis and reporting. It also ensures that the data is compatible with the target system.

Data Loading

After undergoing transformation, the processed data is loaded into the designated storage or target system. This could involve loading data into an analytics database, data warehouse, data lake, or another persistent storage location. Common methods of data loading include bulk loading for batch data or real-time loading via messaging systems. The data loading stage is crucial for making the transformed data readily accessible for various analytical and operational tasks.

Data Quality Monitoring

Following data loading, monitoring the quality of the ingested data is imperative. This involves tracking statistics such as row counts, error rates, data completeness, and other quality metrics to ensure that the ingested data meets predefined quality standards. By continuously monitoring data quality, any anomalies or issues with the ingestion process can be promptly identified and addressed, maintaining the integrity and reliability of the data.

Metadata & Catalog Updates

Finally, metadata stores and catalogs should be updated with relevant information about the newly ingested data sets as part of the data ingestion process. This includes details such as data source, schema information, quality metrics, and other technical metadata. Updating metadata and data catalogs enables efficient data discovery, facilitating easier access and understanding of the ingested data for downstream consumers and applications.

What are the Best Practices for Effective Data Ingestion?

Understanding how to handle data properly is necessary for data engineering, and following the best ways to do this is really important. Here are some simple tips to help you manage your data better:

• Choosing the appropriate data ingestion method is crucial for ensuring efficient data management. Evaluate factors such as data volume, velocity, and source complexity to determine whether batch, real-time, or hybrid ingestion approaches best suit your needs.
• Data validation and cleansing are essential steps to maintain data quality and integrity throughout the ingestion process. Implement validation rules and cleansing procedures to identify and rectify inconsistencies, errors, and outliers, ensuring that only accurate and reliable data is ingested into your systems.
• To enhance data ingestion performance, optimize your pipelines by fine-tuning configurations, leveraging parallel processing, and minimizing unnecessary data transfers. Monitor resource utilization and latency metrics to identify bottlenecks and optimize throughput for faster and more efficient data ingestion.
• Protecting sensitive data is paramount in data ingestion processes to prevent unauthorized access and data breaches. Implement encryption techniques, access controls, and compliance measures to safeguard data integrity and confidentiality during ingestion.
• Documenting and monitoring your data ingestion process is essential for ensuring transparency, accountability, and traceability. Maintain detailed documentation of ingestion workflows, configurations, and dependencies.
• Implement robust monitoring and alerting mechanisms to track pipeline performance and detect anomalies, facilitating timely troubleshooting.

Streamlining Data Ingestion Process with Airbyte

The need for efficient and scalable data ingestion solutions has never been more critical. Enter Airbyte, a data integration platform designed to streamline and simplify the data ingestion process. With its intuitive interface and powerful features, Airbyte offers a comprehensive solution for collecting, processing, and loading data from diverse sources.

Here are some of the amazing features of Airbyte:

• Extensive Connectors: Airbyte offers a vast library of pre-built connectors, allowing you to connect to over 350 data sources and applications easily. Whether databases, SaaS applications, or cloud services, Airbyte's extensive connector library ensures seamless integration with a wide range of data sources.‍
• Robust Monitoring: You can integrate Airbyte seamlessly with Datadog, a monitoring and security platform. This integration enables you to monitor the health and performance of the data ingestion pipelines, ensuring optimal operation and reliability.‍
• dbt Integration: Airbyte can be integrated with dbt (data build tool), a tool for performing complex data transformations. You can also identify data quality issues in your data pipelines using dbt.‍
• PyAirbyte: For advanced developers, Airbyte provides PyAirbyte, a Python library that simplifies integration into existing workflows and extends Airbyte's functionality. PyAirbyte empowers you to extract data from several sources supported by Airbyte.

Conclusion

Data ingestion architecture plays a vital role in modern data management, facilitating the seamless processing and utilization of vast data volumes. Its role in aggregating, validating, transforming, and storing data is essential for your business. This is particularly important when seeking actionable insights and making informed decisions.
