Healthcare teams spend hours chasing data across disconnected EHRs, lab analyzers, billing systems, and patient portals instead of focusing on patient care. Each system speaks its own dialect. Clinicians wait hours for lab results that exist in another database, finance teams manually chase missing procedure codes, and patients endure duplicate tests because providers can't see their complete history.
Poor data quality costs large health systems millions annually, but the real cost is measured in delayed diagnoses and frustrated clinical staff. Integrated data systems solve this by creating one patient view, one audit trail, and a single source of truth. With FHIR now supported by 90% of EHR vendors, the technology exists, but implementation remains complex.
This playbook combines HL7/FHIR standards, hybrid control-plane architecture, and compliance-first design so you can modernize without adding risk. Built for CIOs and architects who need practical steps, not theoretical frameworks.
Why Is Healthcare Data Integration Still So Difficult?
Even with 90% of EHR vendors advertising FHIR-ready APIs, you still spend evenings untangling CSV exports and VPN tunnels rather than building new analytics. Technical checkboxes aren't the same as real interoperability, and the gap keeps widening inside most health systems.
You probably manage at least one legacy EHR whose proprietary interface blocks modern REST calls, a lab system still speaking HL7 v2, and imaging software that only shares DICOM over FTP. Layer on conflicting privacy laws, Business Associate Agreements, and vendors charging premiums to unlock your own data, and every connection becomes a bespoke project.
Consider a multi-hospital network that tried to aggregate cardiology results from three EHRs and two external labs. Each site used a different FHIR profile, forcing weeks of custom mapping. One vendor required an additional license just to enable outbound API traffic. While IT wrestled with schemas, clinicians waited days for complete records and duplicated blood panels.
The human cost is real: fragmented data translates into slower diagnoses, redundant imaging, and alert fatigue that erodes clinician trust.
What Are the Core Principles of Modern Healthcare Data Integration?

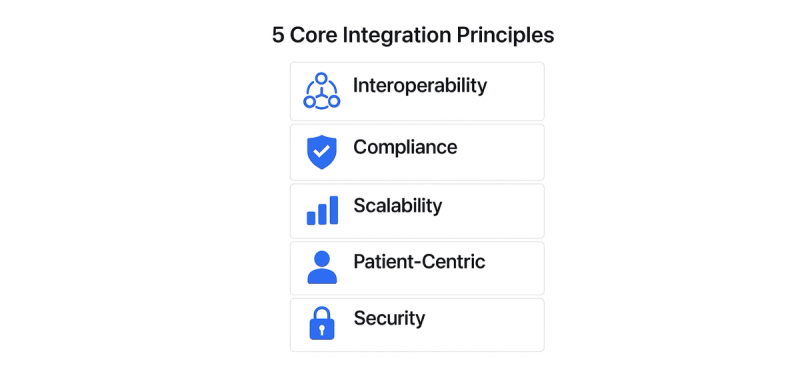

Five non-negotiable principles guide every integration decision, transforming sprawling interfaces and compliance rules into a coherent, patient-first architecture:
- Interoperability by design relies on open standards, chiefly HL7 FHIR, now supported by more than 90% of EHR vendors. Using consistent resource definitions means a lab value or allergy travels intact from one system to the next, so clinicians never act on partial information.
- Compliance by default treats every connection as a potential audit. Encrypt traffic, log access, and require OAuth 2.0 scopes up front. You avoid last-minute retrofit work and keep HIPAA or GDPR reviews short.
- Scalability and flexibility come from hybrid deployments. A cloud control plane paired with on-premises data planes lets you expand capacity without moving protected data off-site.
- Patient-centric architecture insists that integration efforts surface insights at the bedside, not just in back-office dashboards. Mapping clinical concepts consistently prevents confusing units, codes, or time zones that derail care plans.
- Security everywhere means zero-trust access, TLS 1.2+ encryption, and continuous monitoring on every API call. When breaches are contained to a single endpoint, patient trust and your night's sleep stay intact.
How Do You Integrate Healthcare Data Systems Step by Step?
Even the largest hospital network can't modernize data overnight. You move faster and avoid expensive re-work when you follow a deliberate sequence that maps today's reality, standardizes exchanges, and embeds compliance from the first API call.
1. Assess the Existing IT Landscape and Data Sources
Start by cataloging every system that touches patient or operational data: EHRs, LIS, RIS, billing, scheduling, even wearables feeding remote-patient monitoring programs. Document where each dataset lives, who owns access, and whether the system exposes an API, flat-file export, or nothing at all.
This inventory uncovers hidden compliance dependencies (HIPAA, GDPR, or state privacy laws tied to specific datasets) and flags vendor lock-in risks that trap healthcare CIOs in siloed, proprietary platforms. A clear map prevents you from overlooking a critical feed and forces every stakeholder to confront data quality issues before integration begins.
2. Adopt HL7/FHIR as the Core Integration Standard
With the landscape documented, pick a single language for every system to speak. FHIR is the obvious choice: more than 90% of EHR vendors now expose FHIR-based endpoints. If you still rely on HL7 v2 feeds, spin up a conversion layer or middleware that maps v2 messages into FHIR resources: Patient, Observation, Medication, and so on.
Consistency matters more than perfect purity. Competing FHIR profiles derail semantic interoperability. Tools like HAPI FHIR servers simplify standing up a compliant endpoint while you phase out legacy interfaces.
3. Build a Secure Integration Layer with API Gateways
Every request for Protected Health Information should travel through a single, inspectable choke point. An API gateway authenticates users via OAuth 2.0 or OpenID Connect, enforces role-based scopes, rate-limits abusive traffic, and terminates TLS 1.2+ so data is never sent in clear text.
Gateways also give you payload inspection to redact or mask identifiers before data leaves the firewall. By centralizing policy, you cut the time it takes to prove HIPAA compliance during audits.
4. Use Control-Plane and Data-Plane Architecture
Pure cloud integration can violate data-residency rules, while pure on-prem locks you into slow release cycles. A hybrid model separates orchestration (control plane) from processing (data plane). Platforms keep sensitive records inside the hospital network while pushing only outbound-initiated traffic to a cloud-managed control plane.
You gain elastic scaling and centralized monitoring without surrendering data sovereignty, critical for multinational health systems juggling HIPAA and GDPR.
5. Integrate External Data Sources Responsibly
Insurer APIs, reference labs, and patient-facing apps enrich the clinical picture, but each connection expands the threat surface. Validate incoming payloads for schema accuracy, require Business Associate Agreements that spell out breach responsibilities, and log every request for later provenance checks. Patient-centric regulations mean you also need consent metadata attached to each record.
6. Implement Real-Time Data Exchange and Monitoring
Clinical decisions happen in seconds, not nightly batch windows. Event brokers such as Kafka or Mirth Connect stream FHIR resources the moment they're created, while services like AWS HealthLake add managed persistence. Real-time dashboards built on this feed surface ETL lags, duplicate messages, or anomalous spikes.
7. Automate Compliance and Governance
Manual audits don't scale. Instrument every connector to emit immutable logs, rotate encryption keys automatically, and trigger breach alerts when access patterns switch from chart pulls to bulk export attempts. A metadata catalog preserves lineage so you can trace an AI inference back to the originating FHIR Observation. The payoff is fewer audit-week firefights and a security posture that improves continuously rather than annually.
Follow the sequence in order (map, standardize, secure, govern) and you create an integration fabric robust enough for clinical workloads and flexible enough for the next wave of healthcare innovation.
How Does Hybrid Architecture Accelerate Healthcare Integration?
Hybrid deployment solves the compliance-versus-innovation trade-off that stalls most hospital modernization projects. You get cloud elasticity for demanding analytics workloads while PHI stays in environments you already secure and audit. Patient records remain on-premises, but metadata and outbound traffic can flow to cloud resources when needed.
- Cloud scale without data exits: Analytics workloads burst to the cloud while patient records stay inside your firewall. This satisfies HIPAA and data-residency requirements without sacrificing processing power, a pattern healthcare teams need for real-time dashboards and population health analytics.
- Collaboration across sites: Federated data planes at each facility share a common control plane. Clinicians at separate hospitals can query standardized vocabularies without duplicating databases or creating new data silos between locations.
- Modular, open architecture: You can swap or extend components without rewriting interfaces. This reduces long-term vendor lock-in and gives you flexibility to adopt new clinical applications as they emerge.
Airbyte Enterprise Flex delivers this hybrid model with a cloud-managed control plane that handles scheduling, logging, and connector updates, while hospital-managed data planes run connectors inside your network. Data flows outbound-only; nothing inbound pierces the firewall. You maintain encryption keys and audit logs while gaining access to 600+ connectors that update automatically. The result: faster project delivery, simpler compliance audits, and a clear path to clinical innovation without compromising patient trust.
How Do You Build a Future-Ready, Interoperable Healthcare Ecosystem?
Healthcare data integration succeeds when you balance FHIR interoperability, HIPAA compliance, and scalable architecture. Secure API gateways with hybrid control planes transform siloed records into unified networks.
Airbyte Flex delivers HIPAA-compliant hybrid architecture, keeping ePHI in your VPC while enabling AI-ready clinical data pipelines. Talk to Sales to discuss your healthcare AI compliance requirements.
Frequently Asked Questions
What Is the Difference Between HL7 v2 and FHIR?
HL7 v2 uses pipe-delimited messages for point-to-point exchanges, while FHIR uses RESTful APIs with JSON or XML resources. FHIR offers better semantic interoperability, easier web integration, and modular resource definitions that simplify building modern applications. Most healthcare teams now convert legacy HL7 v2 feeds into FHIR resources through middleware layers to unify their integration architecture.
How Do You Maintain HIPAA Compliance in a Hybrid Data Architecture?
Hybrid architectures maintain HIPAA compliance by keeping Protected Health Information on-premises in customer-controlled data planes while using cloud-based control planes for orchestration only. Encrypt data at rest and in transit with TLS 1.2+, implement OAuth 2.0 authentication, maintain comprehensive audit logs, and execute Business Associate Agreements with all vendors. The control plane manages scheduling and monitoring without ever storing or processing PHI.
What Are the Biggest Challenges When Integrating Multiple EHR Systems?
The biggest challenges include inconsistent FHIR profile implementations across vendors, proprietary APIs that require custom development, data quality issues with incomplete or incorrectly formatted records, and vendor licensing fees for API access. Organizations also face semantic mapping difficulties when different EHRs use conflicting terminologies, patient identifier matching across systems, and maintaining audit trails that satisfy compliance requirements.
How Long Does It Typically Take to Integrate a New Healthcare Data Source?
Integration timelines depend on data source complexity and API availability. FHIR-enabled systems with documented APIs can connect in hours to days. Legacy systems requiring HL7 v2 conversion or custom ETL development may take weeks to months. Organizations using platforms with pre-built healthcare connectors can reduce integration time by 60-80% compared to building custom solutions, though testing, validation, and compliance verification add additional weeks regardless of approach.
