What Is Data Loading: Best Practices, Examples, & Techniques
Most organizations consider data as a valuable asset. Efficiently managing and leveraging data is crucial for informed decision-making and business growth. You can achieve this by curating data pipelines that allow seamless data transfer between several systems within the organization.
Data loading is one of the fundamental steps in a data pipeline and plays a vital role in moving the data from its source to your preferred location. This article provides a detailed overview of data loading, exploring its techniques, best practices, and the tools available to streamline the process.
What Is Data Loading?
Data loading involves copying and transferring data from a source file, database, or application into a target system like a data warehouse or data lake. It is a crucial step in data processing techniques like ETL or ELT.
Data loading ensures your data is easily accessible and available at a centralized repository by all your teams across the organization. It allows you to populate a target system with accurate and up-to-date information for further analysis, reporting, and decision-making.
Data Loading Techniques
This section will explore various techniques with data loading examples to help you strategize and accommodate your evolving business and data requirements. By carefully selecting the appropriate method, your organization can ensure efficient data ingestion and utilization.
ETL (Extract, Transform, Load)
ETL uses a sequential approach to data movement and preparation. It involves extracting your data from various source systems, transforming it into a standardized format, and loading it into a target data warehouse or mart.
![ETL](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66740a32b8c70410d459797e_AD_4nXfb_Rz8TQ_70VlOWCOpZgwST1EEQ1jxM5e8i6Hw1KVq1Z7N-a-aa4ztZjzxqAYzSWi62CW1AM8uWogiYh77s-Hjlc1iMIWfjV_q4M8PdoQtDZXmJA0wmWC6DpS2KcxQRooonxIjrq03l-imC7o9V8EAB72L.png)
This approach is well-suited for batch processing where data volumes are manageable, transformation logic is well-defined, and data quality requirements are strict. However, ETL can introduce latency and bottlenecks for use cases with large-scale and streaming data.
For example, suppose a retail company wants to analyze its sales data from multiple store locations. In that case, it can use the ETL process to extract sales data, transform it to standardize product categories and sales dates, and then load the cleaned data into a data warehouse for reporting and analysis.
ELT (Extract, Load, Transform)
ELT prioritizes speed and agility. You begin by extracting data from various sources and loading it directly into a data lake or warehouse without immediate transformations, allowing faster data ingestion and exploration.
![ELT](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66aca80356e327b944017358_AD_4nXeVkB8IymOUOSQZ6KQnTGutuGD0U8fdX1pRhOdLSsaspBwbLudQ8QBeWFYQc6SEyvB2AdeZJV_0cgomIwOOVJOKH3kai2TiBKfdVK04kJ233PcK02E45w4OcVsPSWRwtSDiUO1sFLQQrpj_vYF5gZJjP3we.png)
With ELT, you can transform data by leveraging the target database’s scalability, flexibility, and cloud computing technologies to clean, enrich, and structure it as needed. This approach is particularly advantageous for handling massive unstructured datasets.
For example, suppose a finance department wants to check its data for fraud detection. It can use the ELT approach to load raw transactions into a data lake first, then perform transformations within the data lake to identify suspicious transactions.
Want to know more about the differences between ETL and ELT? Then, click here!
EtLT (Extract, transform, Load, Transform)
EtLT is a hybrid data loading approach that combines ELT's speed with ETL's data quality and compliance benefits. It involves extracting data from sources and loading it into a staging area with simple transformations related to data formats, cleansing, and masking sensitive data.
![EtLT](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66aca8037ff86185590b158b_AD_4nXd49Hur1zDmAmjd9dA5NSSDU0495HJhsK9PVaAynCjn8vGFXYRYFkkrLjJd_v8zvzeEcXqbeLmz5S0S-a6sjdGkETiqmi4Rgkp0Kz1YQMS3iSLV_abhDFYtXjSqs7VLDgSNgIvIEUGvn87r2i6cUzctFDL6.png)
You then load the tweaked data into the warehouse for more comprehensive transformations. This method speeds up data ingestion while ensuring data integrity and adherence to regulatory standards.
For example, a marketing team wants to integrate and analyze data from various sources, such as social media, web analytics, and email campaigns. In that case, the team can utilize the EtLT approach to ensure the consolidated data is of the required format before performing more complex transformations for analysis.

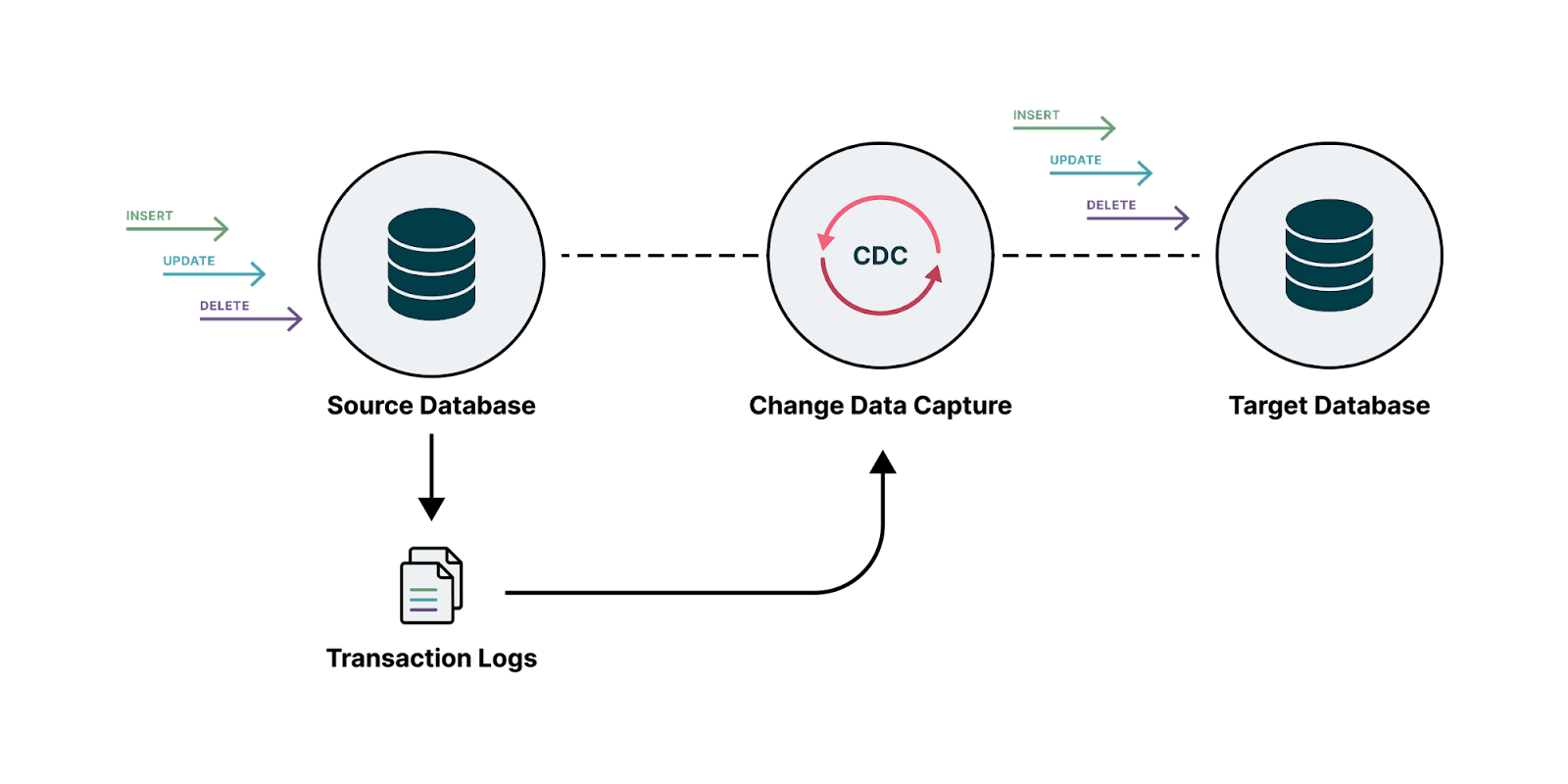

Change Data Capture (CDC)
You can utilize change data capture when dealing with high-volume databases requiring frequent updates or near real-time data synchronization. This technique helps you capture and transfer only the data changes made since the previous update.
![CDC](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66aca8032ec18fc4849c3a30_AD_4nXfg6Gy6BHSCkadhybBV6XHzNtQfmzgAUk2IYqqLWVGcM6qJ2S-5vnEiIbifRxRzGln91FL3nqcojWFHsXTsmSTfbvBZLOQnMcv57GeVjdryYUNpCOPBteqpghHHt4L9huIZBIUvkStS9I_Xbr2ApVQChAl-.png)
CDC allows you to track modifications, insertions, and deletions efficiently, minimizing data transfer volume and processing overhead. You can also implement it for data warehousing and operational data stores to maintain consistency and freshness.
For example, if an e-commerce platform needs to keep its inventory data synchronized across multiple systems in near real-time, it can implement CDC. This approach helps the platform capture and propagate only the changes made to the inventory database.
Types of Data Loading
Depending on the data volume and frequency of updates, data loading can involve various methods, such as full loads, incremental loads, and batch loads. You can decide on which approach suits your organization's data management strategy.
Batch Loading
This method requires you to transfer large volumes of data in bulk at scheduled intervals, typically using ETL tools. It is suitable for organizations with low data volatility and minimal real-time requirements. Some tools you can use to perform batch loading are Airbyte, Informatica, and Talend.
Real-Time or Stream Loading
With real-time loading, you can continuously load and process data as it is generated, providing immediate access to the latest information. It is ideal for high-velocity data streams and applications requiring real-time insights. Apache Kafka, Matillion, and Confluent are some tools that facilitate stream loading.
Incremental Loading
Incremental loading involves transferring only the new or modified data since the last load instead of an entire dataset. However, it requires careful management as you must track and apply the data changes in the correct order by verifying relationships between dimensions and fact tables.
Full Refresh Loading
Full refresh loading replaces the entire dataset in the target system with a new copy of the data. You can use this approach for initial data loads, when data integrity issues arise, or when complete data overwrites are necessary. Tools like Airbyte, Hevo, and Fivetran are some tools you can leverage to implement full refresh loading.
Data Loading Tools and Technologies
Here are some tools that you can use to automate and streamline data loading in data warehouses or data lakes, improving productivity and data quality. By leveraging appropriate technologies, your organization can optimize its data pipelines.

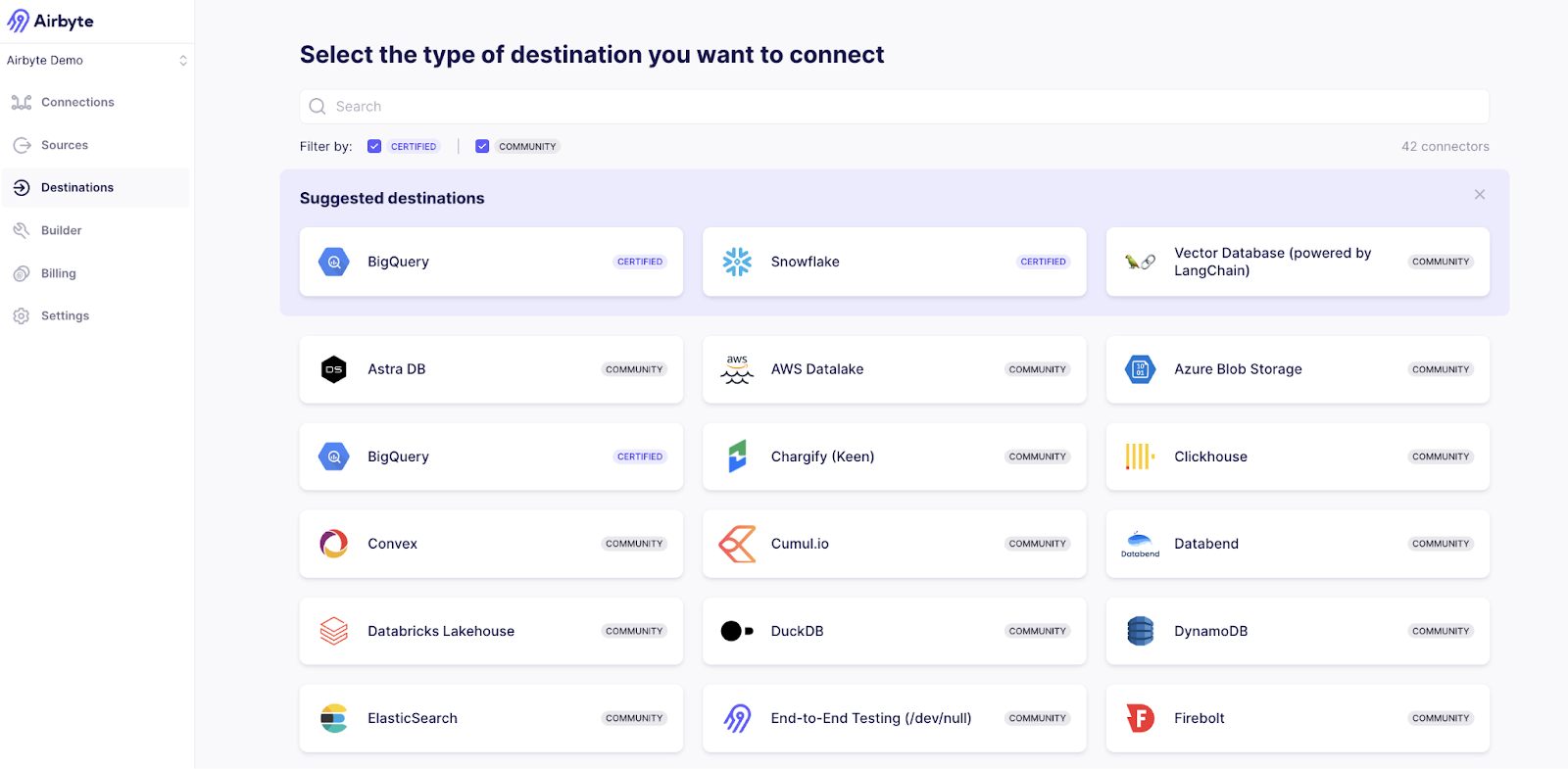

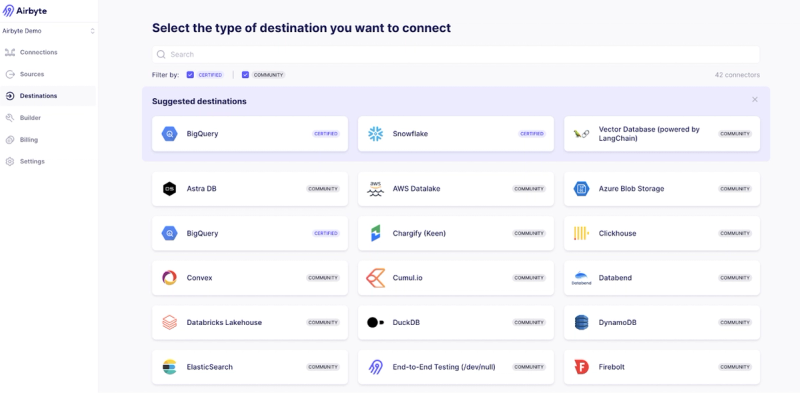

Airbyte
Airbyte is a no-code data integration platform that streamlines data extraction and loading by providing a catalog of 300+ connectors for structured and unstructured data sources. It makes your GenAI workflows trustworthy and simplifies them by helping you load unstructured data directly into popular vector stores like Pinecone, Weaviate, and Milvus.
![Airbyte](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66aca8034defb106c010c507_AD_4nXcWMLg-zjZe9fp79BHLgochKxsh9LSsJRWnMR1Ac7H9DTRvUKXYJAobaIbVaiX5cwacXiPU-odNbIbr9ZN_Tg7S_uaihaplb1kmuEs9X7X8DiQoSUxIVN6P0-WYg19qPVo5U0G9HXEJXLtU6AITyiydsVlS.png)
Airbyte offers versatility in managing your pipelines with a user-friendly interface, APIs, Terraform Provider, or PyAirbyte. Its schema change management feature allows you to automatically reflect source schema changes into your destination based on configured settings to detect and propagate such changes. Additionally, Airbyte provides incremental loading, CDC, full refreshes, and batch processing to make your data-loading process effortless.
Airbyte ensures security and governance across all deployment options—self-hosted, cloud, and hybrid, by complying with ISO 27001, SOC 2, GDPR, and HIPAA regulations. It also enables you to perform data encryption, auditing, and monitoring as safety measures.

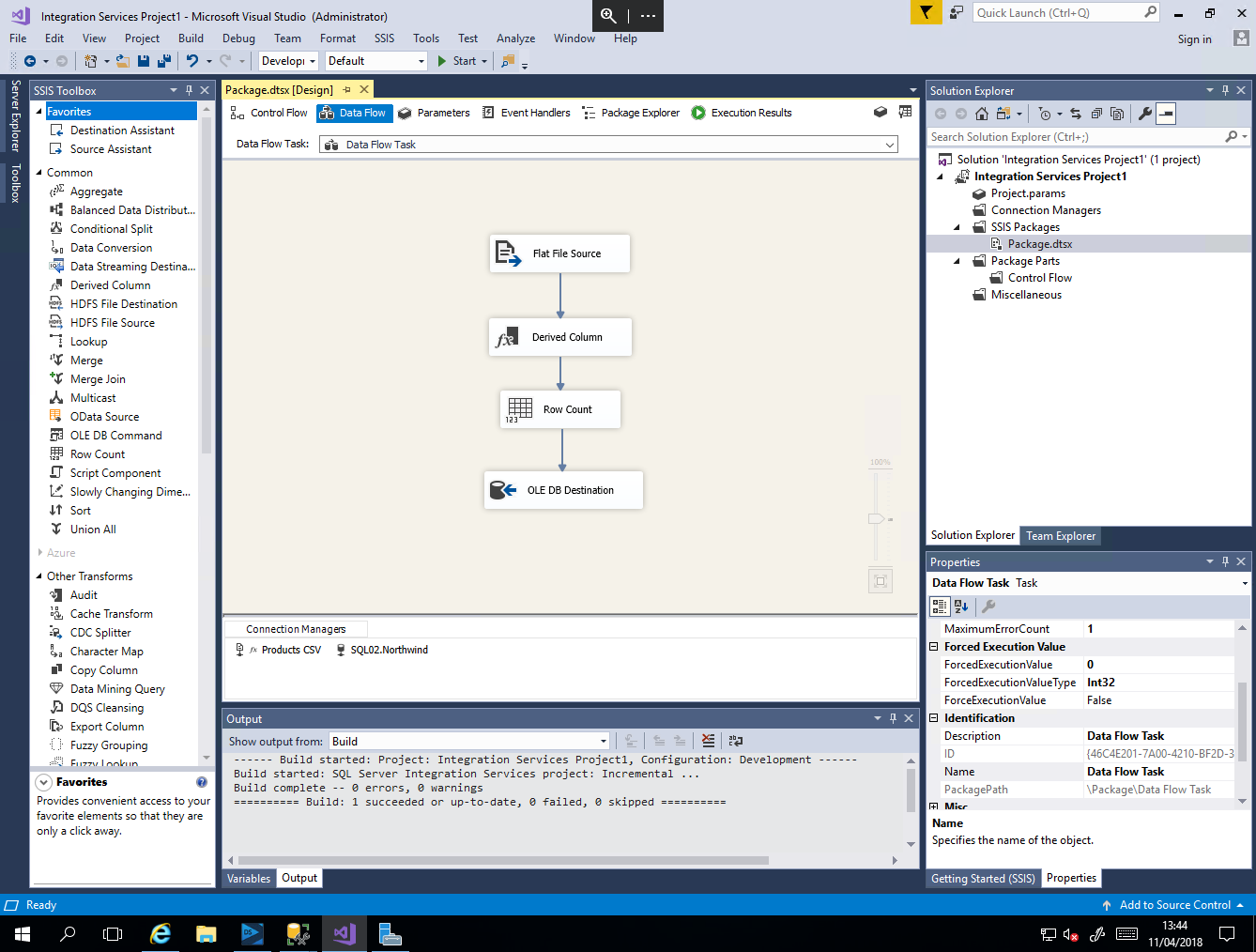

SQL Server Integration Services
SSIS is a robust platform for building enterprise-level data integration and transformation solutions. It offers a user-friendly graphical interface for designing data extraction, transformation, and loading (ETL) processes, simplifying the development of complex data pipelines. You can also create comprehensive documentation for building custom workflows.
![SQL Server Integration Services](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66aca8026675bda36409585c_AD_4nXcpUaxypQdu5tFRCOYL_D202SjH2GFSEWwdnACgu6hKRtayJmdjY8gr0tcjyxHFEjtAD7pRGgx10xmFqCMn-K3DrqOeyrB-DrAuFq5YK5W1C53kbjVgRxslDr1KQ6iUEwDnuyPnarvCgvDGI0-jZBTRHbPC.png)
SSIS provides several connectors for data sources, such as flat files, XML files, and relational databases, making it versatile for integrating different systems. Its built-in transformations and error-handling mechanisms enhance your data’s quality and reliability. However, SSIS has a steep learning curve, requiring technical expertise for optimal utilization.

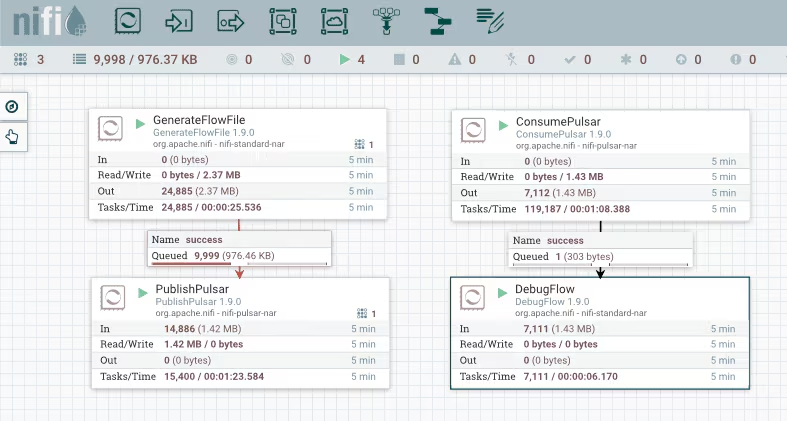

Apache NiFi
Apache NiFi is an ETL tool that simplifies data flow automation with its drag-and-drop interface. It enables quick and easy setup of complex data pipelines and facilitates efficient data loading without extensive coding. You can use Apache Nifi’s data provenance feature to track and ensure data transparency and traceability as it moves through your systems.
![Apache NiFi](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66aca80344bbdd8c924ab340_AD_4nXcvt7wsIbY0Xbmh03rovBGL2f4XrV3BHJ0CbWJDKyoqMWgDsKXqh5HZ9eN-Iw2gdgtUpm7DVgqU3nxeKMv5h17jx7Pci_9wdgCfNmeEworfsCldKOPyEw1rSYztzxPOi0GSxHywlbkuxJJu6cRP61rVPvqA.png)
The platform is highly configurable and supports various data formats, enabling seamless integration with numerous data sources and destinations. Apache NiFi's security features, such as encrypted data transfer and user authentication, protect your organization’s data privacy.

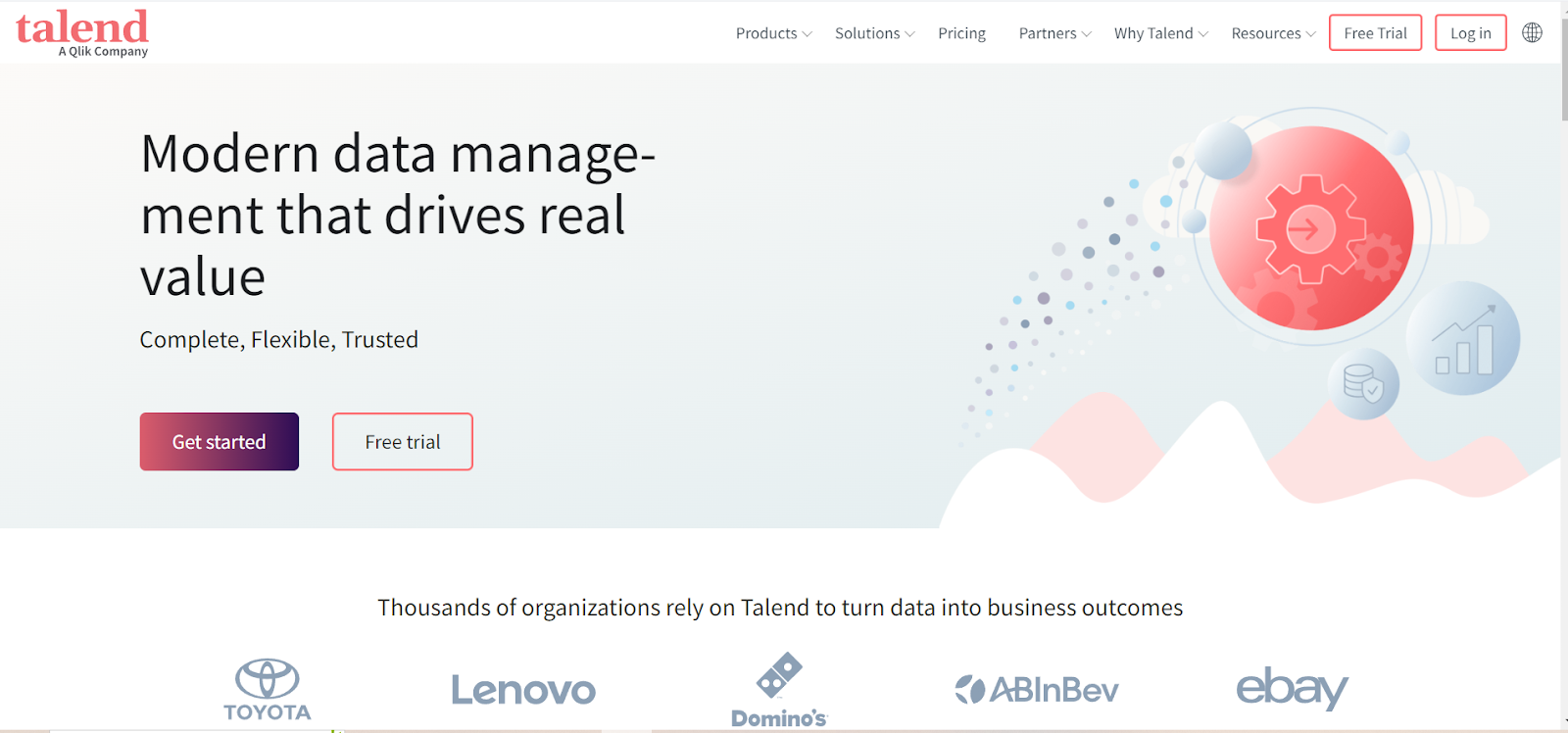

Talend
Talend is a great option for data extraction, loading, and transformation tasks due to its user-friendliness and other powerful features. Its drag-and-drop interface simplifies data pipeline creation, allowing you to connect components without extensive coding knowledge.
![Talend](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66aca803bcc6e7101dcc2239_AD_4nXd0VvslPJFZuzgHqMsgF8JCbNFCMUAEgRpVO_LnInZkb9jYjh5Uh952DHqxKAyHJRL_JKqcZtEOru63xQQn4w0L2E8L2HzsqwSyDLwHeF9Fh-4hs9Unz7buwXTccS3ltmfdT4OQIc8PkTNrQFQF9dg6Vxpl.png)
Beyond ETL, Talend offers advanced capabilities like data quality, governance, and cloud integration, positioning it as a comprehensive data management solution.
AWS Glue
AWS Glue is a serverless data integration tool that eliminates your infrastructure management costs. It offers crawlers that automatically discover data schema, simplifying data catalog creation and streamlining the data loading process.
![AWS Glue](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66aca8037ff86185590b15a4_AD_4nXfhFEulBDzB2wHr3bwEP9aq-_qNgBUCtTNqsQUCXomCEikdMGpqWoIq_wPKx8gbP9zfi5Mg3X7qZXT1pegPEQeYoQD9zS8A4RiJ5aKPTTUhZqqMzw9TgHp2z7RXvT9mIRjwaTpxqJ6uxZG4uo7QnpVr3h9i.png)
AWS Glue allows you to integrate seamlessly with other AWS services like S3, Redshift, Kinesis, and external databases. It automatically generates reusable and portable code using Python or Scala for complex data transformations. Additionally, AWS Glue scales automatically to accommodate your growing data volumes, ensuring efficient data loading for even the most demanding workloads.
Challenges with Data Loading
Various factors, such as data volume, complexity, and integration with diverse systems, can make data loading a challenging process. Here are some points that you should consider:
Handling Large Volumes of Data
Processing and transferring massive datasets can be time-consuming and resource-intensive. Insufficient infrastructure or inefficient loading methods can lead to system bottlenecks, delays, and potential data loss or corruption.
Data Inconsistencies
Data from multiple sources often contains discrepancies, duplicates, or missing values. These inconsistencies can lead to incompatibility with the destination, as your data may not adhere to its schema or data types. Loading such data can result in faulty analysis with biases.
Managing Data Latency
Ensuring timely data availability can be challenging, especially with high-volume datasets, complex transformation processes, and real-time data requirements. Delays in data loading can impact your decision-making, business operations, and reporting processes.
Ensuring Data Integrity
Data integrity refers to maintaining your data's accuracy, completeness, and trustworthiness. However, issues like data corruption, truncation, or transformation errors can compromise the quality and reliability of your data during the data loading process.
Ensuring Data Protection
If you perform data loading without robust data security measures, your sensitive data might be at risk of unauthorized access, data breaches, and cyber-attacks. This can severely affect your organization, causing reputational damage, financial losses, and legal consequences.
Managing Schema Evolution
Adapting data structures to accommodate changes in data sources or business requirements can be complex. If you don’t handle it effectively, schema mismatches can disrupt downstream processes.
Data Loading Best Practices
Effective data loading is crucial for seamless data warehousing and analytics. By following the best practices mentioned below, you can optimize performance, ensure data quality, and streamline the overall data loading process.
Data Profiling and Quality Checks
Data profiling allows you to analyze various data types, formats, ranges, and distributions, while quality checks help verify your data's accuracy, completeness, and consistency. These practices enable you to understand data characteristics and identify potential issues before loading, ensuring data integrity.
Error Handling and Logging
Establish robust error-handling mechanisms to capture and manage exceptions during data loading. By implementing detailed logging, you can track data flow, gain insights into the loading process, and facilitate troubleshooting. Additionally, audit trailing provides a comprehensive record of data changes, making data reconciliation and root cause analysis easier.
Performance Optimization
Streamlined data movement is crucial for timely data availability and system responsiveness. You can optimize data loading performance using efficient file formats, compression algorithms, parallel processing techniques, database indexing, partitioning, and cloud-based scalable services. This minimizes the loading time and improves resource utilization.
Incremental Loading
By loading only the data that has changed since the last update, you can significantly reduce operational and computational costs. This approach is ideal for large datasets that experience frequent updates. Incremental loading helps you maintain data freshness without overwhelming the system.
Utilize Parallel Loading for Large Datasets
Copying and shifting large datasets can be quite complex. Parallel loading allows you to distribute the workload across multiple processors, threads, or servers, significantly accelerating the data transfer. This approach leverages available system resources efficiently and decreases the overall load times.
Consider ELT
ELT often offers performance advantages for large datasets by deferring computationally intensive transformations until all your data gets loaded into the target database. This provides more flexibility and enables you to explore the raw data extensively before committing to a specific transformation schema.
Simplify Loading Data into Your Warehouses with Airbyte
With Airbyte, you can seamlessly extract and load data from multiple sources into your target data warehouse. Here's a step-by-step guide explaining how to get started.
Step 1: Setting up the Data Source

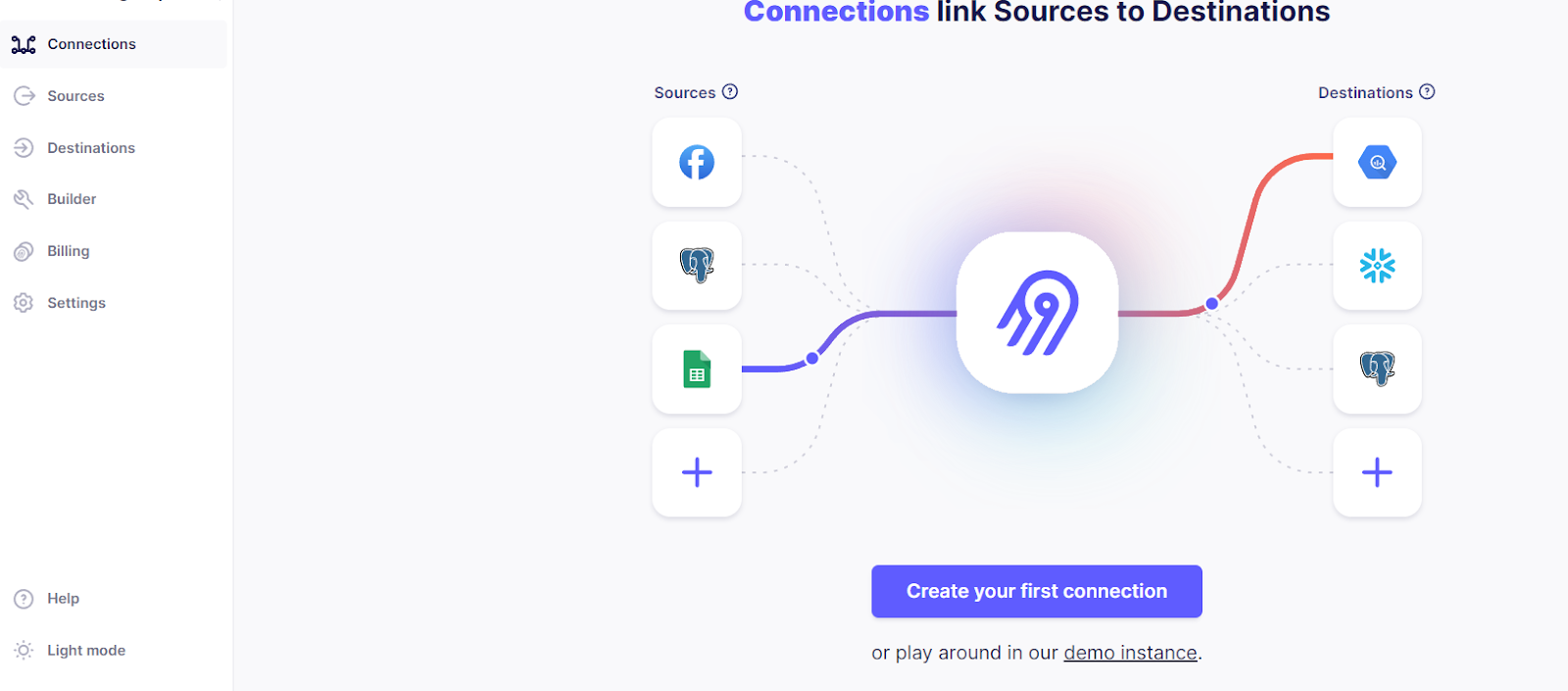

- Set up your cloud or self-managed version of Airbyte and log into your account. When you see the screen below, click on the Source tab on the left side of the screen.
![Setting up the Data Source - Airbyte](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66a0bbca721dcb8539c20217_AD_4nXdzV--mhSsk1wKrmf7VNiBXmONkzdFD9Ds4g5HG1C7RaFaxmVHNc80rhwPo06cq49ECIoxXKt_L6CQrEQDSOJQYv4A0gYV5rrQPxbay7vjD7Uj_sijSzAvQyCqJM6kE1mp5CwZG5Ltu2WTlc9DPyMFli0UV.png)
- Enter your preferred data source (e.g., Postgres) in the search field. Then, select the corresponding connector, as shown below.
![](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66a0bbccd4bcd3ef3f2121bf_AD_4nXfe2Q5JDBDQuMCG_Hl2w0dWiB2ifjOpgS72we6rIAVbEMWmajGQYW22xE1opVG8YXI9O7WQY66BxqmfbDfuq3GaD26q103snPLhMriFYlFcau7BKB0RW-oSIpZEry_KYR9oSg7tMFQ9xmGOSgZz1hT90ouR.png)
- Enter all the configuration details, such as Host, Database Name, Username, and Password required by the selected data source.
![](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66a0bbca8bd64af7a416d287_AD_4nXcp3p8drYb-i_54BTSqrgzUMUu1eipTN1dshDHS9gRZD2F0g6Q-ljJB0W_p8urJX4fp3SaYKPN__UJJaMYft6PwBUUE4Ey-oXtephs16a09l2YW6zK7iSMqqA3Shrfv9sTM-qsb9t-Rb-BjGcs_kBvIxX9I.png)
- Once you fill in all the details, you can scroll down and click on the Set up Source button. Airbyte will run a quick check to verify the connection.
Step 2: Setting up the Destination

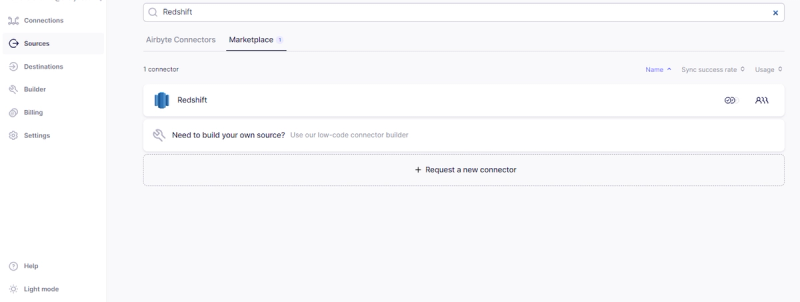

- Click the Destination tab on the left side of the Airbyte homepage and enter your preferred data warehouse. Then, select the corresponding connector (e.g., Redshift), as shown below.
![Setting up the Destination - Airbyte](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66aca8034f55da7e90d2377e_AD_4nXeLELYdn_fIRwwDU5uC95Vji2AM7vidf82Xp-RLVCPrS-M4di9_1FR_tKtjh0c1v7zS7bQ2mHMfYf2dqbs2cnpUorAqrtsE00icmbglvXrnbsEXYqVYTkuqZjUxn270mTGD2iidXfdbcXxchWRWDSsr8OpA.png)
- Enter all the credentials, such as Host, Port, Database, Username, and Password. Once all the details are added, you can scroll down to click on the Set up Destination button. Airbyte will run a verification check to ensure a successful connection.
![](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66aca8043173455f09001edb_AD_4nXfHwV6b9N9TOiROrwxdg0U0m_guQHD10I9sqbhYca8cb6qe-7_Wldu_lT-P8yA_dCq9UwZ24X0yT1SUZBjIEMqPfcHXEY-U6-OzG2LJPnKQxuIZIqF8xZ7j7AVJXSAxtmNX3QVZSKqOd18kprF2zxDgtNl2.png)
Step 3: Setting up a Connection
- Click on the Connections tab present on the left side of the Airbyte homepage.

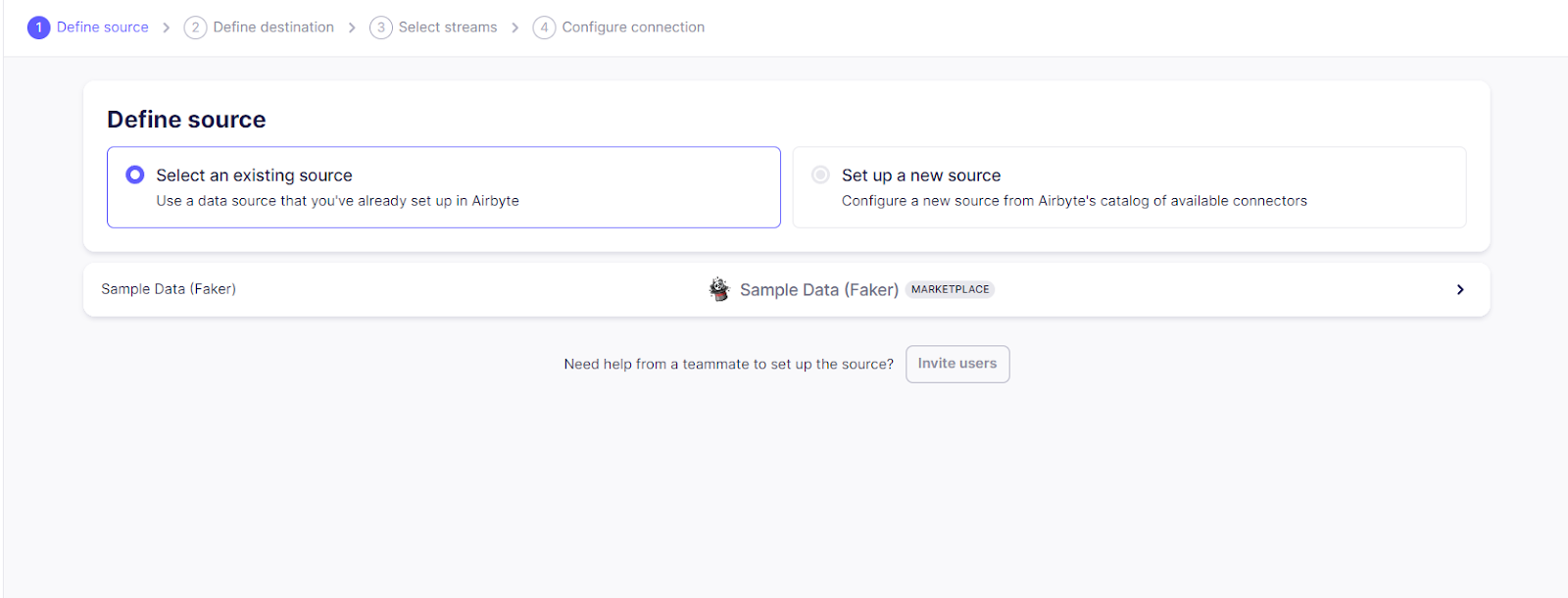

- You will see a screen with four steps to complete the connection. The first two steps require you to choose the previously configured source and destination.
![Setting up a Connection](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66a0bbca60a2713aa2cf2a34_AD_4nXcN9CuVNz1UNDK2G_-my1H-lJAd4R5Rxa7Dx7QY23Xosddtuqhj2-m-_EvgIU7mUO2xso6UNRw2ERXE1d4FKeNbKSKO8-5yZxJpEmrF0_U14gtNioqj3Hrnq2iQRZfCV4D-pL8zEIFLIDLRp7H1kOLWzLFP.png)
- In the next two steps, you will define your data synchronization preferences by configuring the replication frequency and sync mode. You will also determine how Airbyte should adapt to changes in your schema structure.
![](https://cdn.prod.website-files.com/6064b31ff49a2d31e0493af1/66a0bbca378a8786baa0d8e1_AD_4nXfq4xTquuLKn3PGfr5rdlcKE0XpN3-srxr6a920gbT9wzzJ2v0lMTPgi5gPPBhtzijTWHP1xHaapOQ9igEPsxM5koyfFoLwrnNXR7OS2Ubokb2rVBPhqHThuP0AKmMWvh80ba3hNiku4Xi_g1FnzsqamWJG.png)
- Once you fill in all the required details, you can click on Set up Connection. With this, you have successfully loaded data into the data warehouse using Airbyte.
Wrapping It Up
Data loading is a critical process that involves transferring your data from various sources to a target system for further analysis and decision-making. By familiarizing yourself with different techniques, such as ETL, ELT, and CDC, you can select the optimal approach based on data volume, complexity, and business requirements.
Tools like Airbyte, SSIS, and Talend can help you streamline data loading and ensure data quality and integrity by implementing robust error handling and security measures. This article also provides best practices for data loading, allowing you to utilize the full potential of your data assets and make informed business decisions.
FAQs
What is the difference between data loading and data extraction?
Data extraction allows you to retrieve data from its source, while data loading helps transfer and store that extracted data into a target system.
What are the different types of data loading?
Data loading types include batch loading (loads data in bulk), stream loading (immediate data transfer), incremental loading (loads only changed data), and full refresh loading (replaces all existing data).
