Hybrid Data Integration Without Shared Service Principals
Architectural patterns for hybrid data integration without shared service principals, from scoped identities to outbound-only sync and provable audit trails.
A hybrid pipeline moving data between on-premises databases and cloud services needs an identity at each end. The convenient answer is one service principal that works everywhere.
That single credential is what an attacker inherits on a breach, what an auditor cannot attribute to a team, and what a compliance reviewer flags first. The alternative is to scope identity to the deployment boundary, so each environment carries its own identities, secrets, network paths, and logs. The patterns below do that without giving up central orchestration. Keeping execution local covers half the problem, because job metadata still crosses the boundary.
TL;DR
- Deployment-scoped identities limit credential reach and make audit attribution possible, which a single reused service principal cannot do.
- Outbound-only synchronization lets data planes initiate control-plane connections over HTTPS on port 443, with no vendor-initiated inbound access.
- Local secrets management, protected logging, and regional controls limit exposure across both the execution boundary and the metadata boundary.
- Ephemeral execution shortens runtime exposure, but credential refresh, cache behavior, log handling, and persistent artifacts still need explicit controls.
- Data residency claims hold only when the metadata, telemetry, and support paths out of the zone are controlled alongside the payload.
Why Are Shared Service Principals a Security Risk in Hybrid Data Integration?
Shared service principals concentrate access in reusable identities. The result is wider credential scope, weaker accountability, and a higher cost for any single compromise. The five risks below compound, and each one makes the next harder to contain.
- Overprivileged access and lateral movement: shared identities accumulate permissions over time. An attacker who breaches one set of credentials can then move laterally across on-premises and cloud systems.
- Misaligned access controls: permissions rarely mean the same thing in two environments. Reconciling them by hand leads to least-privilege violations and leaves sensitive data exposed.
- Compromised accountability: shared identities make it hard to trace an action to a team or service. The General Data Protection Regulation (GDPR) demands clear traceability, and the Payment Card Industry Data Security Standard (PCI DSS) expects controls that shared credentials cannot demonstrate.
- Credential exposure and leakage: a shared credential copied into code repositories, CI/CD configuration, or operator runbooks is exposed in all of them at once. Without rotation, one exposure keeps paying out for months.
- Amplified blast radius: an integration platform acts as a central access point for every data pipeline it runs. One compromised principal reaches all of them, along with the access-control obligations that the Health Insurance Portability and Accountability Act (HIPAA) and the GDPR impose.
Rotating the shared credential more often leaves all five risks intact. Shrinking its scope addresses them at once, and the natural place to draw that scope is the deployment boundary.
What Does a Secure Hybrid Data Integration Architecture Look Like?
Draw the security boundary where the deployment boundary already sits. Data planes running on-premises, in a cloud virtual private cloud (VPC), and at the edge then avoid depending on one identity across the estate. Each environment authenticates for itself and reaches outward.
In a split control-plane and data-plane architecture, rows, files, and keys can stay inside your perimeter while job metadata crosses the boundary. Table names, error messages, user identifiers, and IP addresses all travel as job metadata. Any of them can carry regulatory obligations or sensitive detail.

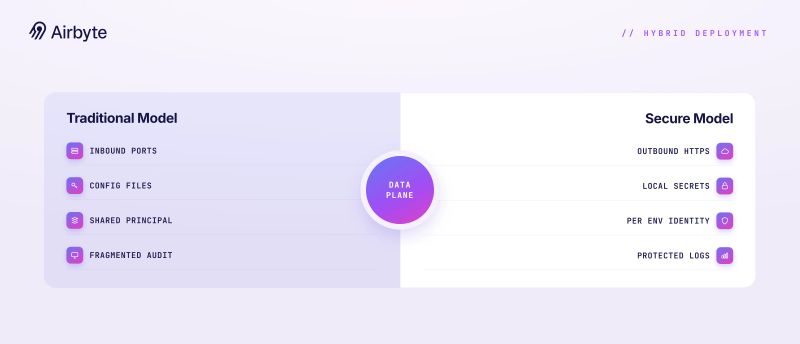

Enumerate what leaves the network, which systems store it, which people and services can read it, and which jurisdiction applies. The table below contrasts the two models across the dimensions an assessor will ask about.
Every pattern that follows assumes the right-hand column already holds. Treat those five conditions as the starting position.
What Are the Architectural Patterns for Secure Hybrid Data Movement?
Five patterns carry the load: outbound-only synchronization, isolated identities, external secrets management, regional deployment controls, and ephemeral job execution. Each one limits access scope and preserves audit evidence across deployment boundaries. They compound when deployed together.
1. Outbound-Only Synchronization Puts the Data Plane in Charge of the Connection
Data planes inside your network initiate connections to the cloud control plane over HTTPS on port 443. The control plane never needs inbound access, and job metadata still centralizes for orchestration visibility. Your design has to preserve queued work for retry during control-plane outages, or a network blip becomes a data loss event.
2. Per-Environment Identities Limit Credential Scope
Use OpenID Connect (OIDC) workload identity federation when an on-premises workload needs temporary access to one cloud provider's APIs. Use X.509 identities with mutual Transport Layer Security (mTLS) when workloads need mutual authentication, local verification, or protection against bearer-token replay.
Short token lifetimes work only when your applications reload credentials mid-job. A narrowly scoped credential with automatic renewal is more defensible than a token that expires during a sync.
Workload-specific credentials and least-privilege access are foundational to any zero trust architecture, and the same reasoning carries into multi-location deployments that span clouds and data centers. Scoped identities also give assessors a clean actor mapping, which shared principals cannot reconstruct after the fact.
3. External Secrets Management Keeps Credentials Out of the Control Plane
Projects like External Secrets Operator sync vault entries into Kubernetes Secrets, but a persisted secret still needs protected handling. A Container Storage Interface (CSI) driver or in-memory injector reduces durable persistence. You still have to configure rotation and confirm your applications reload updated values.
Centralized rotation and provider-side read logs are part of the appeal, and both depend on your provider and storage destination. Your rotation policy is only as good as your cache lifetime, since a connector may retain a value for minutes, hours, or the life of a process.
4. Regional and Air-Gapped Placement Supports Residency Requirements
Pin your data plane to a specific region or offline network segment to support GDPR, HIPAA, or International Traffic in Arms Regulations (ITAR) requirements. Placement settles where the payload sits. You still need controls for every path out of the zone, including metadata, telemetry, logs, remote support access, encryption keys, and any records you transform and allow to leave.
In an air-gapped segment, plan an offline path for software updates, trust-bundle rotation, audit export, and credential renewal. Isolation without that path leaves you with unpatched infrastructure and expired identities.
5. Ephemeral Execution and Protected Logging Shorten Runtime Exposure
Jobs execute in short-lived containers and terminate, although persistent or externally captured artifacts can outlive them. Ephemerality limits how long runtime state stays available. Environment variables, memory dumps, persistent volumes, and logs can still expose secrets.
Combine in-memory injection, audience-bound credentials, immutable image references, egress controls, and log redaction. A short job may run on a minutes-long token, while an eight-hour stream needs per-connection refresh. Forensic evidence stays trustworthy only when logs land in storage with retention and integrity controls you own.
Deploy any one of these alone and you end up with a confident architecture diagram sitting on an unprovable compliance position. The insecure version has a recognizable shape, and naming it makes the difference easier to audit for.
How Do You Avoid Insecure Hybrid Integration Patterns?
Remove persistent inbound access, then replace shared or manually maintained identities with automated, bounded credentials. Legacy split-stack hybrid systems require you to open firewall holes so a vendor can push jobs into your network. Those openings persist long after the pipeline that justified them.
Centralized identity dependencies introduce supply-chain risk of their own, since a compromise at an identity provider propagates to everything that trusts it. Swapping one shared identity for dozens of manually managed static identities creates a different sprawl. The symptoms match, including overlapping privileges, unclear ownership, and credentials nobody has rotated.
A defensible target combines automated workload identity issuance, bounded permissions, and centralized lifecycle monitoring. At that point the raw count of identities stops being the interesting number.
How Do You Migrate Off Shared Service Principals?
Migrate incrementally by deploying one data plane at a time and validating connector compatibility as you remove shared principals. The sequence below is ordered because each step depends on the one before it.
- Audit every pipeline: record the identity owner, environment, permissions, last use, credential age, and every pipeline that depends on each shared identity or open inbound port.
- Separate orchestration from execution: document exactly which metadata and logs cross that boundary, and where they land.
- Enforce outbound-only traffic: close inbound paths at the firewall level, where the control is yours to audit.
- Integrate external secrets management: keep credentials out of the control plane by resolving them from a backend you administer.
- Validate compliance continuously: stream logs to your security information and event management (SIEM) platform and run red-team exercises. Test the model against applicable requirements through internal governance, legal counsel, and qualified assessors.
Each audit record needs identity, event type, timestamp, source, affected resource, and outcome. Write those records to storage protected against modification.
For an AWS estate, the commands below create an unused-access analyzer with a 90-day tracking period. They then wait for credential-report generation to finish and retrieve the report. Review it for old access keys, unexpected services, and identities that unrelated pipelines reuse.
<pre><code>aws accessanalyzer create-analyzer \
--analyzer-name unused-access-analyzer \
--type ACCOUNT_UNUSED_ACCESS \
--configuration '{"unusedAccess": {"unusedAccessAge": 90}}'
until [ "$(aws iam generate-credential-report --query 'State' --output text)" = "COMPLETE" ]; do
sleep 2
done
aws iam get-credential-report</code></pre>Let the audit output set the migration order. Start with whichever identities combine the oldest credentials with the broadest permissions.
How Does Airbyte Flex Support Secure Hybrid Data Integration?

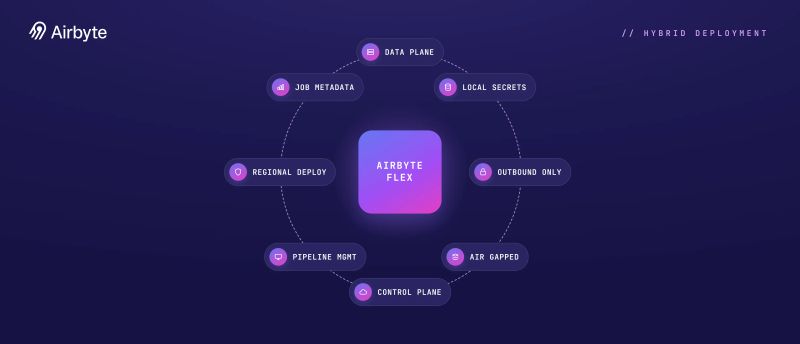

Airbyte Flex applies the split-boundary model directly. Airbyte operates the control plane while the data plane, along with your records, credentials, keys, and compute, runs in your environment, though some metadata such as cursor and primary-key values sits in the control plane.
You keep the execution boundary, the network path, the secrets backend, and the log destination under your own administration. Airbyte's open-source foundation makes the connectors and the data movement engine inspectable, so the boundary is a property of the architecture rather than a clause in a contract. Pipelines draw on a catalog of 700+ connectors across deployment models.
The same replicated records are what an in-boundary retrieval stack indexes, so agent reads inherit the boundary and access controls the pipeline already enforces.
Data sovereignty still depends on decisions you make around the deployment. Those decisions include what metadata reaches the control plane, where logs land, what retention applies, which region hosts the data plane, and who holds administrative access. Evaluate them against your own connector, metadata, logging, and audit requirements before settling on a deployment model.
What Is the First Step Toward Per-Environment Identity?
Map each deployment boundary to its own identity, outbound path, secrets policy, and protected audit trail. Then validate the metadata and connector requirements before you migrate anything. Attribution is the part an audit can actually test. Every credential needs a named scope, a named owner, and a log that proves what it did.
Airbyte runs across cloud, hybrid, and on-premises deployments, with CDC replication, per-environment data planes, external secrets integration, and audit logging on supported paid tiers. Airbyte Flex is the deployment model for teams that need the control plane managed and the data plane kept inside their own network.
Get a demo to walk through how the hybrid boundary maps to your compliance requirements.
Frequently Asked Questions
Can Hybrid Data Integration Work Without Inbound Firewall Ports?
Yes. Outbound-only architectures let data planes inside your network initiate connections to a cloud control plane, commonly over HTTPS on port 443. Before production, test long-polling gateway timeouts, egress allowlists, TLS inspection, idle timeouts, retries, queued-job behavior, and trailer handling for gRPC Remote Procedure Calls (gRPC).
How Granular Do Per-Environment Identities Need To Be?
Separate production and non-production identities at minimum, then split by pipeline when permissions or data sensitivity differ. Per-job identity gives the finest attribution, but it only works when automation handles issuance, renewal, and revocation. Check your provider's quotas on identity and token creation before committing to it.
Does Splitting the Control Plane and Data Plane Limit Connector Availability?
Not inherently, though the answer depends on the platform. Verify which connectors are certified for the deployment model you are choosing, and whether any depend on control-plane processing that your boundary rules would block. Run the compatibility check per connector during the pilot.
Why Do Connectors Keep Authenticating With Stale Secrets After Rotation?
Many connectors read a secret once at startup and never reload it, so rotation leaves them holding the old value. The symptom arrives as intermittent authentication failures that look like network flakiness. Test rotation, cache expiry, reload behavior, and log redaction together before you rely on the pattern.
