Explore Airbyte's full refresh data synchronization

Learn the inner workings of Airbyte’s full refresh overwrite and full refresh append synchronization modes.

Basic

Alex Marquardt

updatedAugust 1, 2022

connectors used

Airbyte

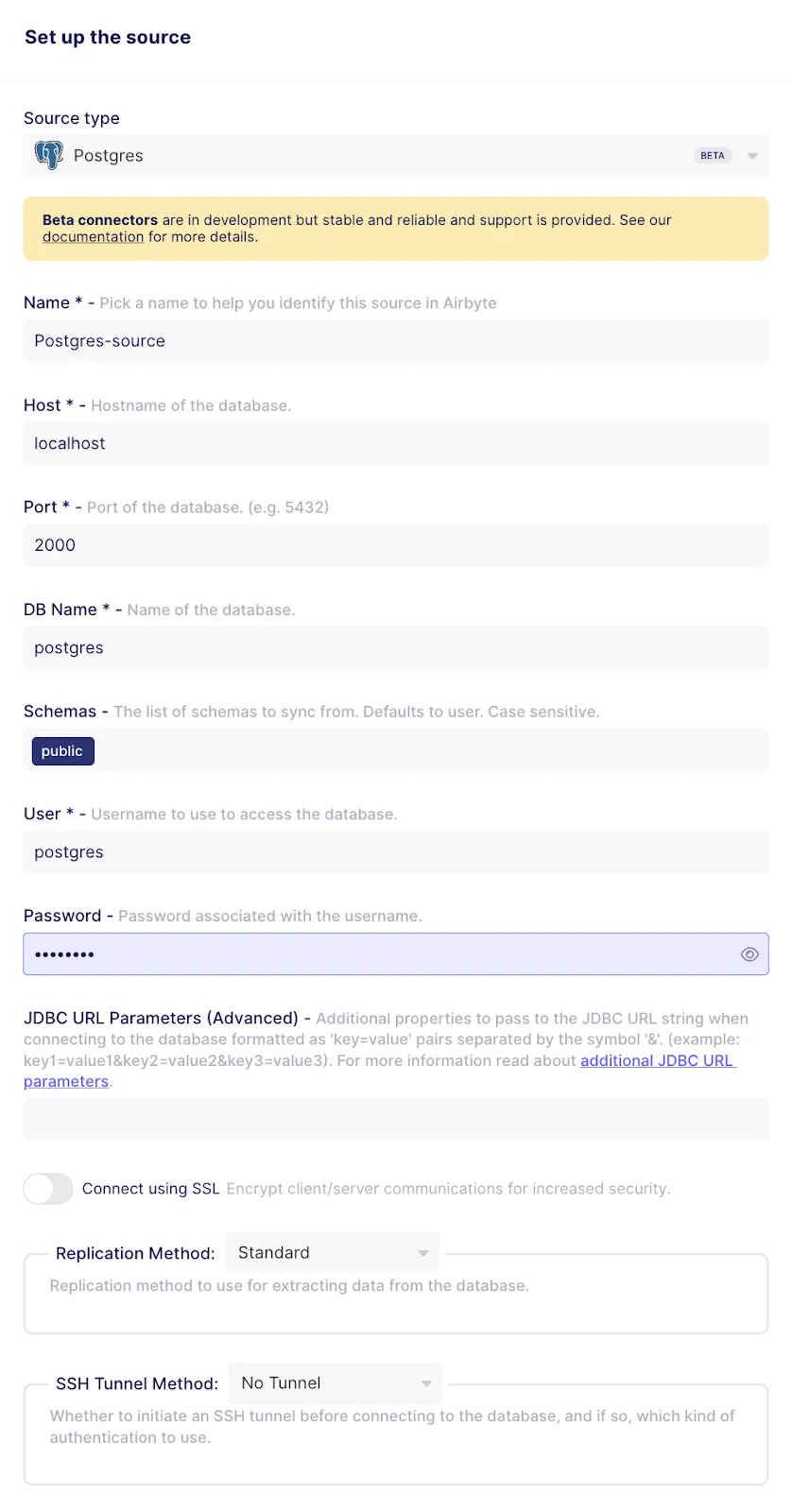

An Airbyte source will be used in your Airbyte connection(s) to retrieve data from the source database that you have just populated. Create a Postgres source called Postgres-source, as shown below:

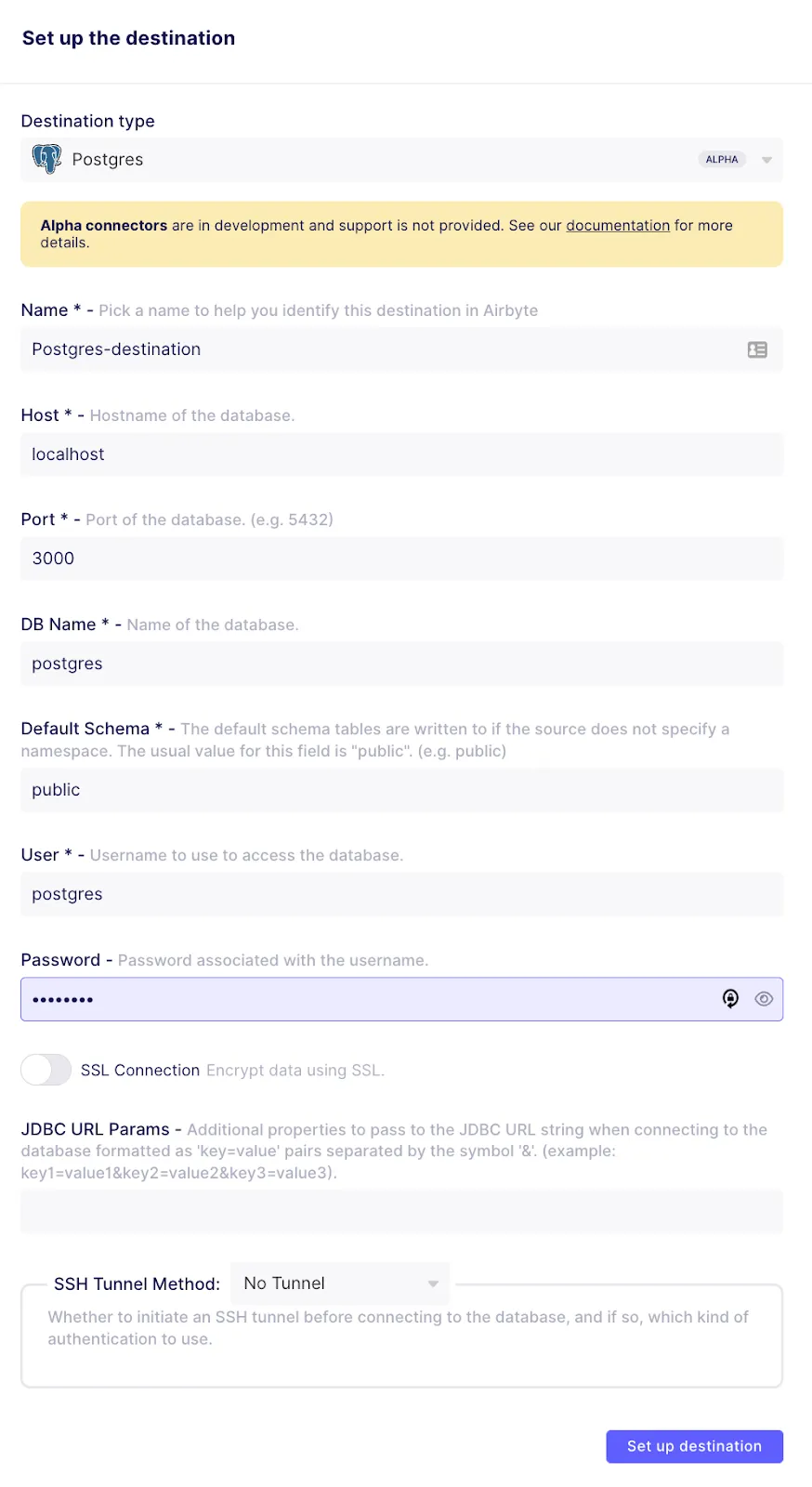

Configure a Postgres destination

Database synchronization with full refresh overwrite

In this section you will create an Airbyte connection that reads data from the Postgres source and drives it into the Postgres destination using the full refresh | overwrite replication mode. In this mode, all data in the source database is sent to the destination database, regardless of whether it has been synced before or not. You can see this for yourself by following along the steps presented below.

Create a full refresh overwrite connection

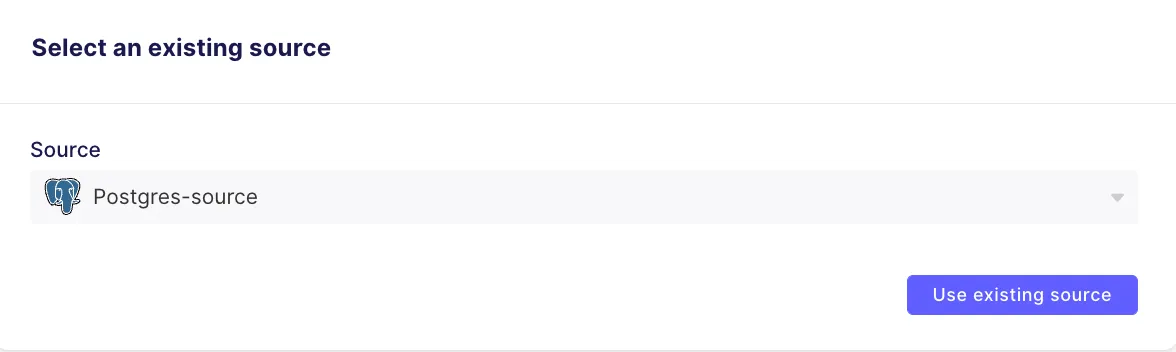

Create a new connection that will be used for verifying the functionality of full refresh | overwrite synchronization. Select the Postgres-source source, which you previously defined, as the source for this connection.

‍

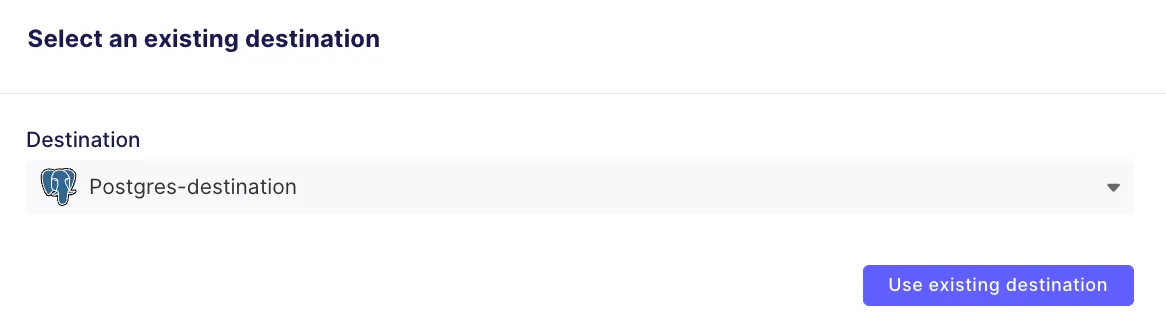

And select Postgres-destination, which you previously defined, as the destination for this connection.

‍

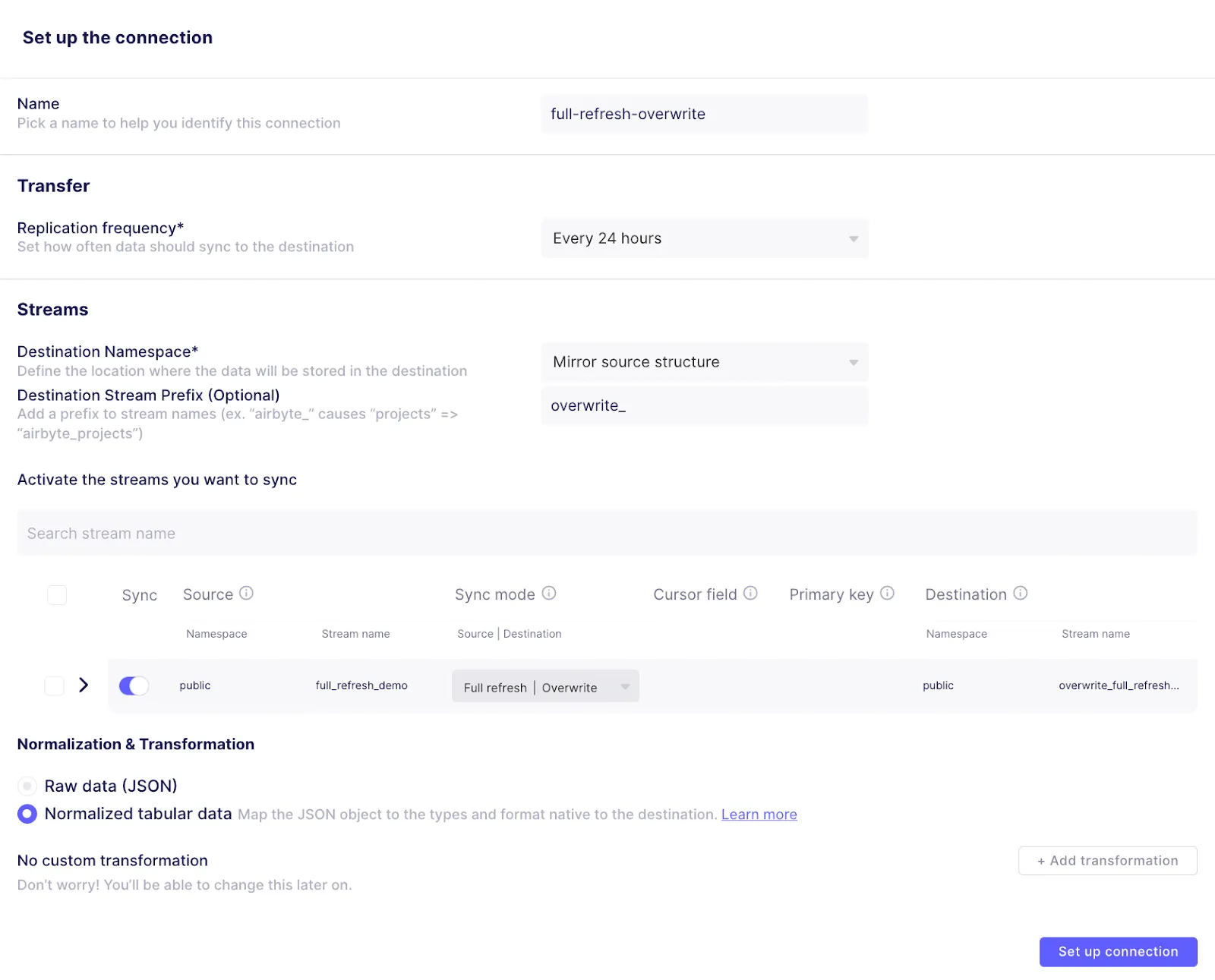

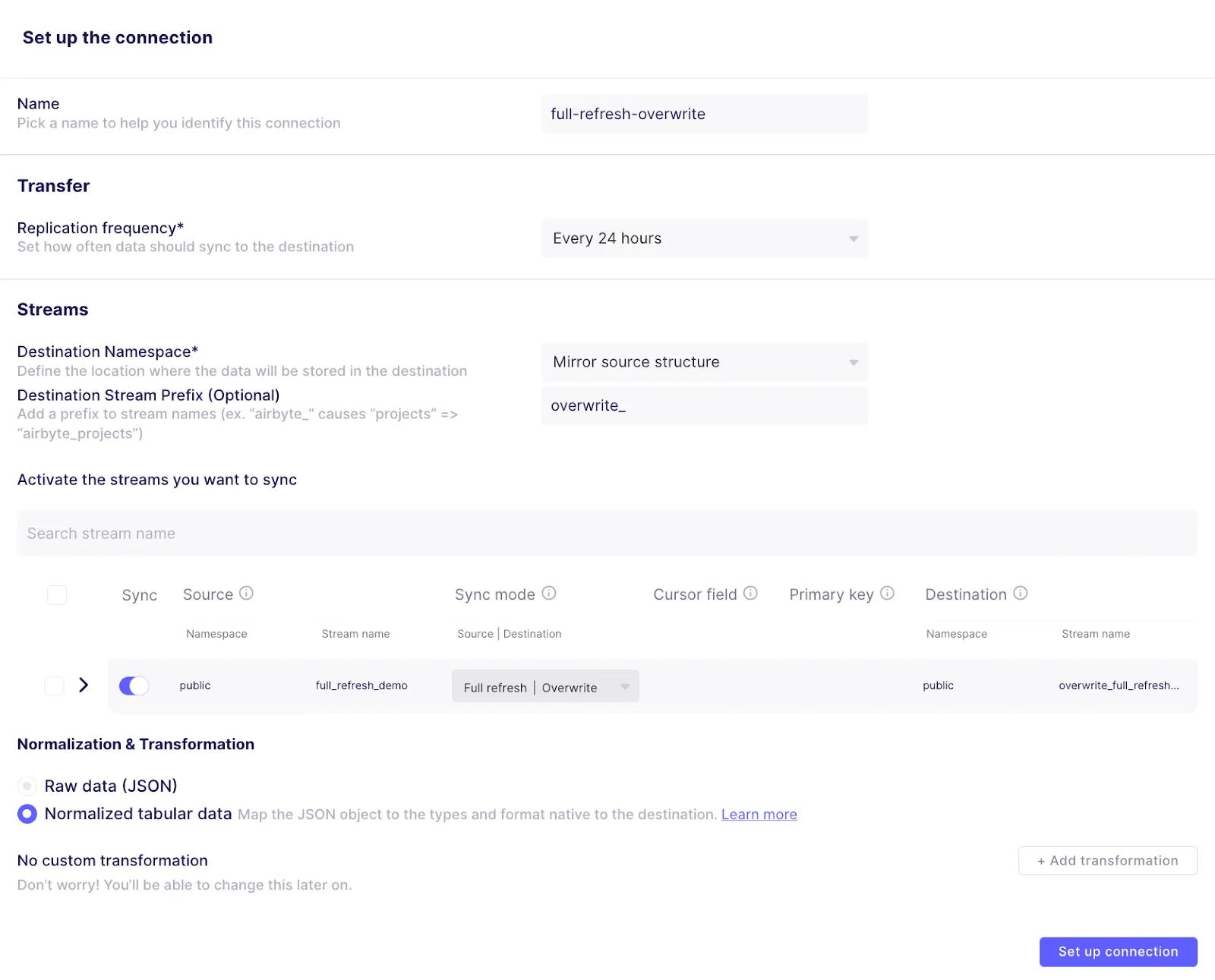

You will see a set up page as shown below. Set the name of the connection to full-refresh-overwrite, and the destination stream prefix as overwrite_ as shown below.

‍

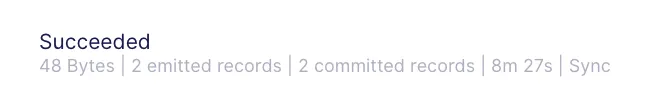

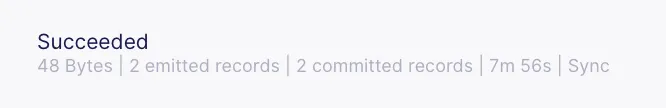

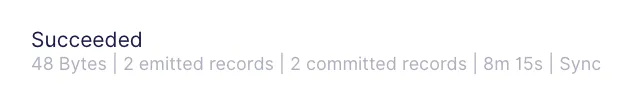

After you set up the connection, you should see that a first sync has automatically started. Once it completes, you should see a message indicating that two records have been emitted as follows:

Open a Postgres terminal in the destination container

‍

Now that the first sync has completed you can take a look at the Postgres destination to see how the replicated data looks. Execute the following command to open a shell to the destination Postgres database:

docker exec -it airbyte-destination /bin/bashpsql --username=postgrespsql --username=postgres

Look at the data in the Postgres destination

You can view the tables in the destination Postgres database by executing the following command from the Postgres shell that you have just opened .

\dt;

‍

Which should respond with the following:

‍

ℹ️ Notice that there are two tables. As discussed earlier, Airbyte converts each source record into a JSON blob that contains all of your data, and writes it into the _airbyte_raw_overwrite_full_refresh_demo table. This is then normalized into a separate table.

Have a look at the _airbyte_raw_overwrite_full_refresh_demo table by executing the following command:

SELECT * FROM _airbyte_raw_overwrite_full_refresh_demo;

‍

Which should respond with a table similar to the following:

_airbyte_ab_id | _airbyte_data | _airbyte_emitted_at --------------------------------------+-----------------------------+---------------------------- 44c96530-94ab-4117-8867-07b153a3b20c | {"id": 1, "name": "Mary X"} | 2022-07-27 13:51:03.182+00 e74f26d1-3695-494c-9a65-2b5765ea9356 | {"id": 2, "name": "John D"} | 2022-07-27 13:51:03.182+00(2 rows)

‍

In addition to the field containing the source data there are two additional fields:

_airbyte_emitted_at which tells you what time Airbyte sent the record to the destination.
_airbyte_ab_id is a UUID value added by the destination connector to each row of the data before it is sent to the destination. This is a UUID (not a hash) and therefore it changes for each row after each sync, even if the data has not been modified.

If you have Basic Normalization enabled, Airbyte will have created a normalized table by extracting data from the JSON object. You can view the normalized data by executing the following command:

SELECT * FROM overwrite_full_refresh_demo;

‍

Which should respond with a table similar to the following:

‍

You can see that this normalized table contains columns corresponding to each of the columns in the source table as expected (id and name). In addition to the Airbyte-created fields that appeared in the raw data table, the normalized table also has a few more airbyte-generated columns:

_airbyte_normalized_at tells you when the document was normalized (i.e. when was the record created from the raw data).
_airbyte_overwrite_full_refresh_demo_hashid is an md5 hash of the source fields that has been calculated and added during normalization. The usefulness of this field is discussed in this article about md5 hashing on the dbt blog. The hash is created based on the source fields (id and name fields in this tutorial), and so a single document that is repeatedly synchronized without modification will have the same value for this field after each sync. In other words, unlike the _airbyte_ab_id field which is a new UUID after each sync, this field is consistent as long as the source data is consistent.

‍

Let's go into detail about how this data has been normalized in the next section!

Viewing the SQL that has normalized the raw JSON data

Airbyte executes SQL commands on the destination database to normalize your data. This is covered conceptually in the following pages in Airbyte’s documentation.

Transformations with SQL (Part 1/3).
Transformations with dbt (Part 2/3).
Transformations with Airbyte (Part 3/3).

To help you to understand the differences between different synchronization modes you can look at the actual SQL that is used for normalizing your data. In order to find the SQL code that has been executed, you need to find the job ID and attempt ID for the sync that you are interested in. You can get this by looking in the Sync History, as shown below.

‍

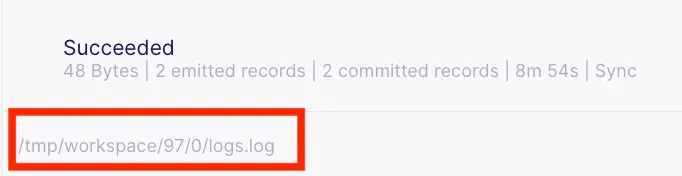

In this case the job ID is 97 and the attempt ID is 0, as annotated by the red square in the image above.

Create a bash shell into the airbyte-server docker container as follows:

docker exec -it airbyte-server /bin/bash

‍

Using the job ID and the attempt ID, you can find the SQL that has been used for executing the normalization. Based on the job ID of 97 and attempt ID of 0 (extracted above), I execute the following:

cat /tmp/workspace/97/0/build/run/airbyte_utils/models/generated/airbyte_tables/public/overwrite_full_refresh_demo.sql

‍

Which returns the SQL that has been used for converting the raw data into the normalized table. In order to explain what the SQL does to get your data normalized, I have broken it into four main sections below.

ℹ️ Airbyte leverages dbt to create the SQL for normalizing the data, and makes use of common table expressions (or CTEs) to break it into more manageable pieces.

The first section of SQL extracts the source fields from the JSON blob.

create table "postgres".public."overwrite_full_refresh_demo__dbt_tmp" as ( with __dbt__cte__overwrite_full_refresh_demo_ab1 as (-- SQL model to parse JSON blob stored in a single column and extract into separated field columns as described by the JSON Schema-- depends_on: "postgres".public._airbyte_raw_overwrite_full_refresh_demoselect jsonb_extract_path_text(_airbyte_data, 'id') as "id", jsonb_extract_path_text(_airbyte_data, 'name') as "name", _airbyte_ab_id, _airbyte_emitted_at, now() as _airbyte_normalized_atfrom "postgres".public._airbyte_raw_overwrite_full_refresh_demo as table_alias-- overwrite_full_refresh_demowhere 1 = 1),

‍

The next portion of the SQL is responsible for casting each of the fields that has been extracted from the JSON to the correct type.

__dbt__cte__overwrite_full_refresh_demo_ab2 as (-- SQL model to cast each column to its adequate SQL type converted from the JSON schema type-- depends_on: __dbt__cte__overwrite_full_refresh_demo_ab1select cast("id" as float) as "id", cast("name" as text) as "name", _airbyte_ab_id, _airbyte_emitted_at, now() as _airbyte_normalized_atfrom __dbt__cte__overwrite_full_refresh_demo_ab1-- overwrite_full_refresh_demowhere 1 = 1),

‍

The next section is responsible for adding in an md5 hash from the fields that have been passed in the source JSON. This article about md5 hashing on the dbt blog discusses the value of this.

__dbt__cte__overwrite_full_refresh_demo_ab3 as (-- SQL model to build a hash column based on the values of this record-- depends_on: __dbt__cte__overwrite_full_refresh_demo_ab2select md5(cast(coalesce(cast("id" as text), '') || '-' || coalesce(cast("name" as text), '') as text)) as _airbyte_overwrite_full_refresh_demo_hashid, tmp.*from __dbt__cte__overwrite_full_refresh_demo_ab2 tmp-- overwrite_full_refresh_demowhere 1 = 1)

‍

Finally, the last part of the SQL selects all of the fields to be written into the overwrite_full_refresh_demo__dbt_tmp table.

-- Final base SQL model-- depends_on: __dbt__cte__overwrite_full_refresh_demo_ab3select "id", "name", _airbyte_ab_id, _airbyte_emitted_at, now() as _airbyte_normalized_at, _airbyte_overwrite_full_refresh_demo_hashidfrom __dbt__cte__overwrite_full_refresh_demo_ab3-- overwrite_full_refresh_demo from "postgres".public._airbyte_raw_overwrite_full_refresh_demowhere 1 = 1 );

‍

ℹ️ New SQL is generated for each sync, but for the full refresh | overwrite mode the SQL is identical every time. If you want to see this for yourself, then in the subsequent synchronizations you can note the job ID and attempt ID and view the SQL as you have just done above.

The astute reader may wonder why this SQL creates a table called "postgres".public."overwrite_full_refresh_demo__dbt_tmp", while the table that you see in the Postgres destination is simply called overwrite_full_refresh_demo. To understand it better, take a look in the logs, which in my case (for this job ID and attempt ID) are located at /tmp/workspace/97/0/logs/dbt.log on the airbyte-server container. In the log file you should find an alter table/rename command that has renamed the table, similar to the following:

13:57:23.468838 [debug] [Thread-5 ]: On model.airbyte_utils.overwrite_full_refresh_demo: /* {"app": "dbt", "dbt_version": "1.0.0", "profile_name": "normalize", "target_name": "prod", "node_id": "model.airbyte_utils.overwrite_full_refresh_demo"} */alter table "postgres".public."overwrite_full_refresh_demo__dbt_tmp" rename to "overwrite_full_refresh_demo"

Insert a new record on the source

You will now insert a new record in the source data, and then see how this is replicated to the destination. Go back to the terminal where you opened a shell to the source Postgres database, and add a new record and then view the source table as follows:

INSERT INTO full_refresh_demo(id, name) VALUES(3, 'Jane Y');SELECT * FROM full_refresh_demo;

‍

The source table should look as follows:

id | name ----+-------- 1 | Mary X 2 | John D 3 | Jane Y(3 rows)

‍

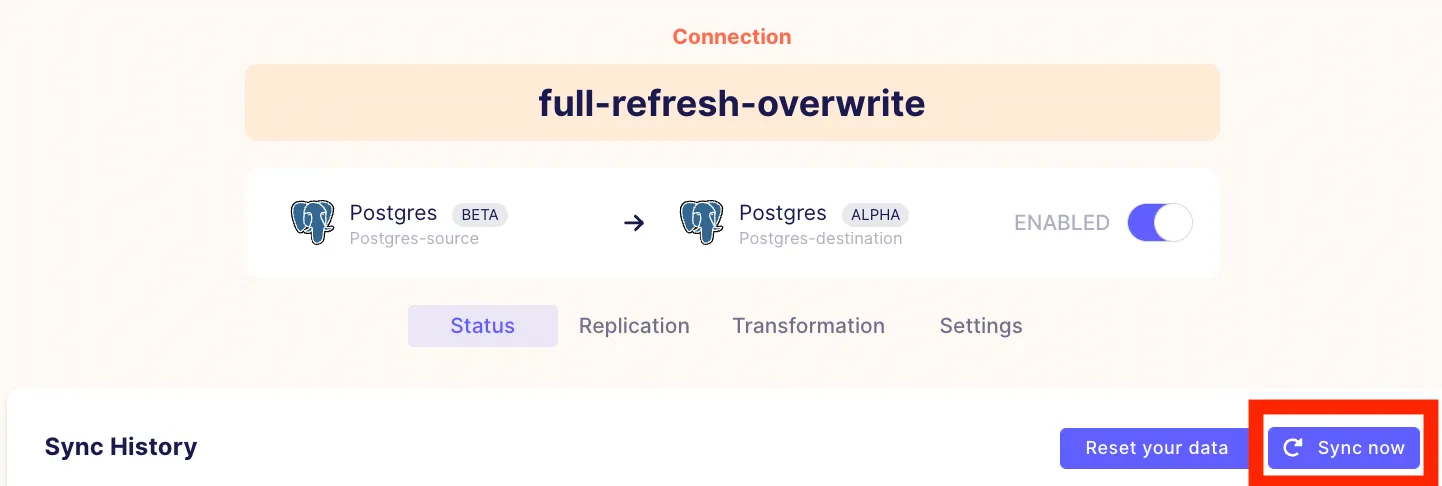

Execute a new sync by clicking on Sync Now in the connection page.

‍

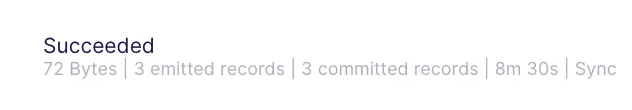

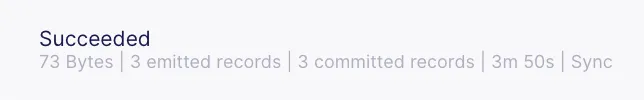

Once the sync has completed, you will see that 3 records have been emitted. This is because full refresh synchronization modes extract and emit all of the records in the source data set, regardless of whether they have previously been replicated to the destination or not.

Have a look at the _airbyte_raw_overwrite_full_refresh_demo table by running the following:

SELECT * FROM _airbyte_raw_overwrite_full_refresh_demo;

‍

Which should look similar to the following:

_airbyte_ab_id | _airbyte_data | _airbyte_emitted_at --------------------------------------+-----------------------------+---------------------------- 87619a8e-7381-4f56-acda-d4f6c375ccc2 | {"id": 1, "name": "Mary X"} | 2022-07-27 14:24:39.743+00 a33a60fd-e948-47fa-b847-e9bfeb64cc84 | {"id": 2, "name": "John D"} | 2022-07-27 14:24:39.743+00 255e5402-8973-41fc-85b2-2ddaf6eabff9 | {"id": 3, "name": "Jane Y"} | 2022-07-27 14:24:39.743+00(3 rows)

‍

Notice that the _airbyte_emitted_at field for every record has been updated – this is further confirmation that all of the records in this table have been overwritten – not just the new record that you added to the source table. This is expected with the full refresh synchronization mode.

The normalized data in the overwrite_full_refresh_demo table can be seen by executing:

SELECT * FROM overwrite_full_refresh_demo;

Which should respond with a table that looks similar to the following:

‍

Every record in the normalized table has been overwritten, as can be seen by comparing the value of the _airbyte_normalized_at field to the value that each row had for that field prior to the sync, as shown earlier in this tutorial.

Update a record on the source

Update a record on the full_refresh_demo table on the source Postgres database, and view the source table by running the following commands:

UPDATE full_refresh_demo SET name='New Jane' WHERE id=3;SELECT * FROM full_refresh_demo;

‍

And the source full_refresh_demo table should now look as follows:

id | name ----+---------- 1 | Mary X 2 | John D 3 | New Jane(3 rows)

‍

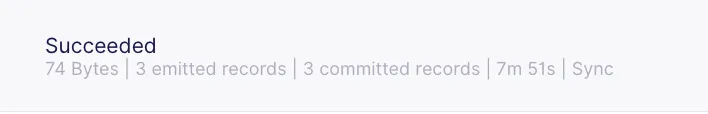

As before, execute a new sync by clicking on Sync Now in the connection pane and wait for it to complete. The UI will indicate that 3 records have been emitted as follows:

‍

Have a look at the _airbyte_raw_overwrite_full_refresh_demo table in the destination Postgres database with the following command:

SELECT * FROM _airbyte_raw_overwrite_full_refresh_demo;

‍

Which should respond with a table similar to the following

_airbyte_ab_id | _airbyte_data | _airbyte_emitted_at --------------------------------------+-------------------------------+---------------------------- 9d647452-21cd-4e6b-b9e6-1021b4eea06f | {"id": 1, "name": "Mary X"} | 2022-07-27 14:38:26.594+00 d0c7d8a6-ed0e-4280-a768-08dfc424abda | {"id": 2, "name": "John D"} | 2022-07-27 14:38:26.594+00 23472df3-9ac7-48fb-8675-84b240367dc4 | {"id": 3, "name": "New Jane"} | 2022-07-27 14:38:26.594+00(3 rows)

‍

Once again, by comparing the value of _airbyte_emitted_at to the prior values (shown earlier in this tutorial), you can see that every record has been overwritten, not just the record that was updated.

Have a look at the normalized data in the overwrite_full_refresh_demo table with the following command:

SELECT * FROM overwrite_full_refresh_demo;

‍

Which should be similar to the following:

‍

Once again the _airbyte_normalized_at field for every record has been updated – in other words all of the records in this table have been completely overwritten/re-normalized as expected.

Delete a record on the source

See what happens if you delete a record on the source database by executing the following commands:

DELETE FROM full_refresh_demo where id=3;SELECT * FROM full_refresh_demo;

‍

The source full_refresh_demo table should look similar to:

id | name ----+-------- 1 | Mary X 2 | John D(2 rows)

‍

Execute a Sync Now in the connection page, and wait for the sync to complete. Once it is complete, you should see that two records have been emitted, as shown below.

‍

Have a look at the raw data by executing:

SELECT * FROM _airbyte_raw_overwrite_full_refresh_demo;

‍

Which should respond with something similar to:

_airbyte_ab_id | _airbyte_data | _airbyte_emitted_at --------------------------------------+-----------------------------+---------------------------- 770a8f48-b871-4b67-b803-755d4d6521f5 | {"id": 1, "name": "Mary X"} | 2022-07-27 14:55:11.578+00 282ee38c-b909-465b-be0c-9ceecc10a7f8 | {"id": 2, "name": "John D"} | 2022-07-27 14:55:11.578+00(2 rows)

‍

And have a look at the normalized data by running:

SELECT * FROM overwrite_full_refresh_demo ;

‍

Which should be similar to the following:

‍

You can see that the _airbyte_emitted_at timestamp has been updated for all of the documents in both the raw data and in the normalized data, which confirms that every record in both tables have been overwritten. Additionally the _airbyte_normalized_at timestamp confirms that every record has been re-normalized.

Sync data without modifying any data on the source

What will happen if you execute a sync on data that hasn’t been modified since the previous sync? Find out by clicking on the Sync now button! Once the sync has completed, you will see that two records have been emitted as shown below.

Have a look at the raw data by executing:

SELECT * FROM _airbyte_raw_overwrite_full_refresh_demo ;

‍

Which should respond with something similar to:

_airbyte_ab_id | _airbyte_data | _airbyte_emitted_at --------------------------------------+-----------------------------+---------------------------- 7c220c2b-c844-469c-8d49-92b248fe5d2a | {"id": 1, "name": "Mary X"} | 2022-07-27 15:47:33.788+00 354bd111-c44c-4b51-9a16-0c3fa9fbca48 | {"id": 2, "name": "John D"} | 2022-07-27 15:47:33.788+00(2 rows)

‍

And have a look at the normalized data by running:

SELECT * FROM overwrite_full_refresh_demo ;

‍

Which should be similar to the following:

‍

Looking at the _airbyte_emitted_at timestamp and the _airbyte_normalized_at timestamp confirms that every record has been overwritten and re-normalized. In other words, even if no data was modified in the Postgres source, the entire table is copied and overwritten in the destination.

To drive data into the Postgres database that you created earlier, you will first need to define a destination. Configure an Airbyte destination destination called Postgres-destination as follows:

Database synchronization with full refresh append

In this section you will create an Airbyte connection that reads data from the Postgres source and drives it into the Postgres destination using the full refresh | append replication mode. In this mode, as with the full refresh | overwrite replication mode, all data in the source database is sent to the destination database, regardless of whether it has been synced before or not. However, in the append variant, new syncs will take all data from the most recent sync and append it to the raw destination table. If normalization is enabled, then records that have recently been appended to the raw table will be normalized and appended to the normalized table. This is easiest to see for yourself via a hands-on example, as presented below.

Create a full refresh append connection

Set up a new connection that will demonstrate full refresh | append functionality, using the connectors that you created earlier in this tutorial.

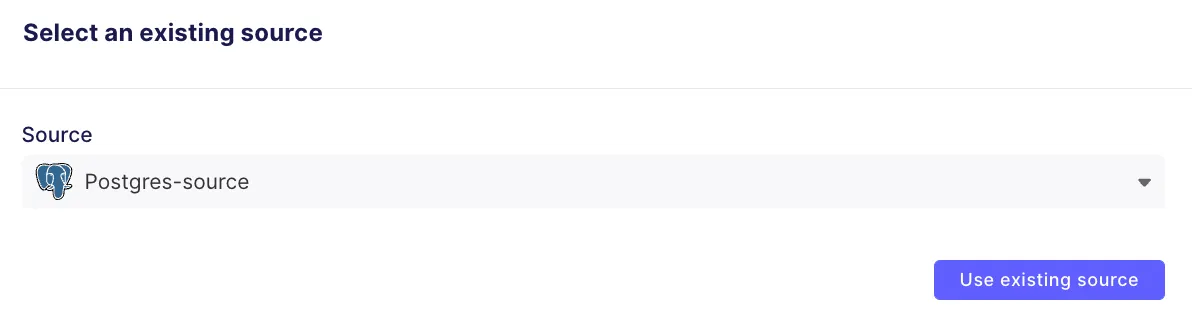

First, select Postgres-source as the source for this connection.

‍

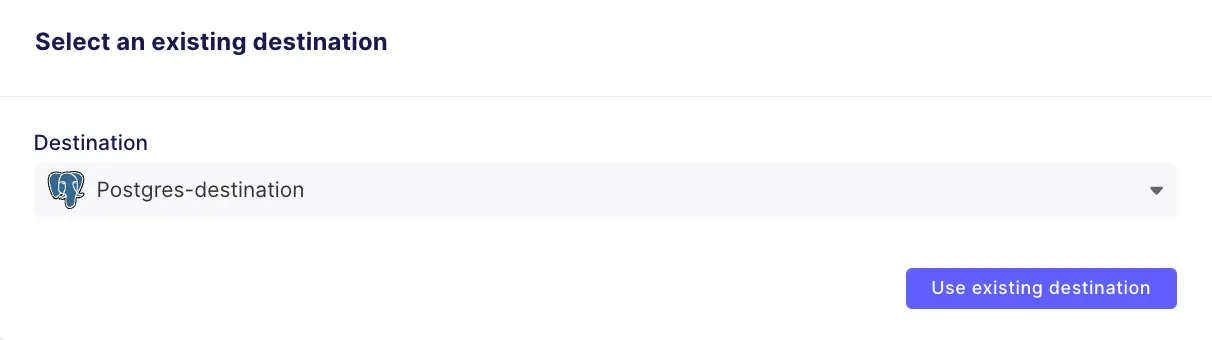

Then select Postgres-destination as the destination for this connection.

‍

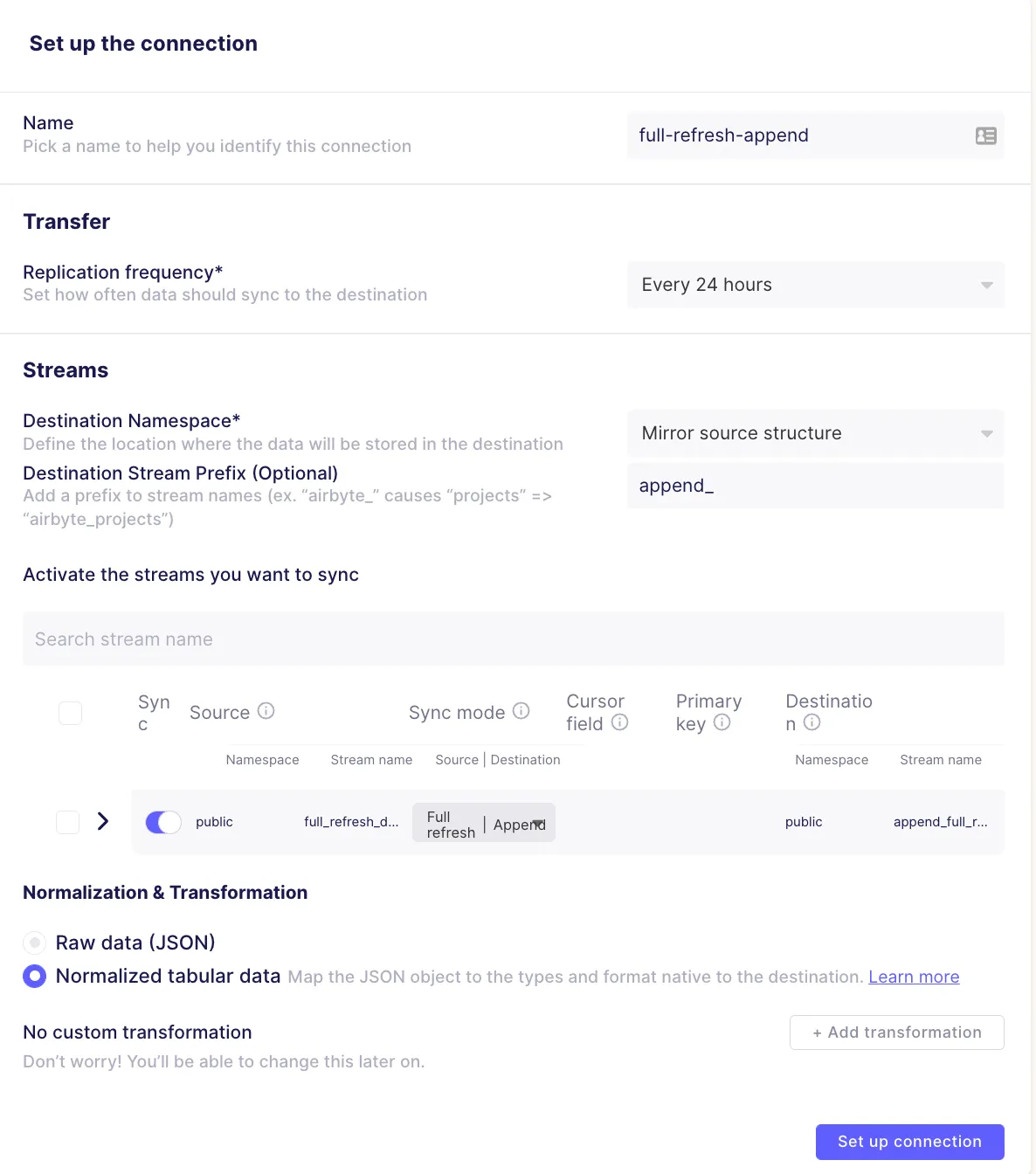

Then create a new connection and name it full-refresh-append, set the prefix to append_ ,and select full refresh | append as the sync mode, as shown below.

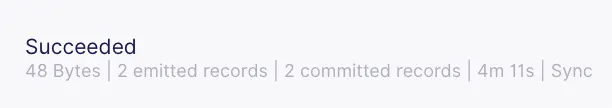

A sync should automatically start after you create the connection. Wait for the sync to complete, and you should see a message like the following:

‍

Open a Postgres terminal on the destination

If you don’t already have a shell open to your Postgres destination, execute the following commands:

docker exec -it airbyte-destination /bin/bashpsql --username=postgres

‍

You can view the tables in the destination Postgres database by executing the following command from the Postgres shell that you have just opened .

\dt;

‍

Which should respond with the following:

‍

Two new tables have been created, _airbyte_raw_append_full_refresh_demo and append_full_refresh_demo.

You can look at the raw data as follows:

SELECT * FROM _airbyte_raw_append_full_refresh_demo;

‍

Which should respond with a table that looks very similar to the raw table that you saw created with full refresh | overwrite replication, as follows:

‍

You can look at the normalized data with the following command:

SELECT * FROM append_full_refresh_demo;

‍

Which should return a table that looks similar to the following:

‍

So far, the replication functionality appears to be the same as what you saw in the section about full refresh | overwrite replication.

Viewing the SQL that normalizes the raw JSON data

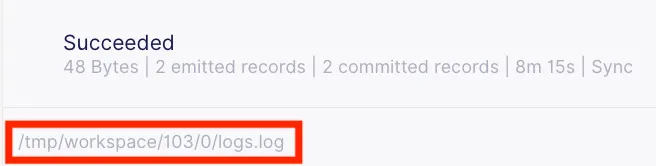

As with the previous tutorial, you can see the job ID and attempt ID, which you will use for finding and viewing the SQL, as shown below:

‍

If you don’t already have bash shell into the airbyte-server docker container, create one as follows

docker exec -it airbyte-server /bin/bash

‍

In my case the job ID of 103 and the attempt ID of 0 can be used to view the generated SQL that has been executed on the Postgres destination to normalize the raw data. Have a look at the generated SQL by replacing your job ID and attempt ID in the path below.

cat /tmp/workspace/103/0/build/run/airbyte_utils/models/generated/airbyte_incremental/public/append_full_refresh_demo.sql

‍

This shows you the SQL that has been used for converting the raw data into the normalized table. In this initial synchronization run, the SQL that is generated is basically identical to the SQL that was demonstrated earlier for the full refresh | overwrite sync. One small difference is that the SQL directly creates the append_full_refresh_demo table, rather than creating a temporary table and renaming it. The top of the SQL file looks as follows:

create table "postgres".public."append_full_refresh_demo" as ( ... etc ..

‍

However, you will see that follow-up synchronizations have different SQL generated. I will discuss this in more detail after the next sync.

Insert a new record on the source

If you don’t have a terminal open on the Postgres source database, open one as follows:

docker exec -it airbyte-source /bin/bashpsql --username=postgres

‍

Add a new record to the source Postgres database as follows:

INSERT INTO full_refresh_demo(id, name) VALUES(3, 'Alex M');

‍

And view the source table by executing:

SELECT * FROM full_refresh_demo;

‍

The source table should look as follows:

id | name ----+-------- 1 | Mary X 2 | John D 3 | Alex M(3 rows)

Execute a new sync by clicking on Sync Now in the connection pane and wait for the sync to complete.

‍

Once complete, you should see that three records have been emitted. Also take note of the job ID and attempt ID, which are 104 and 0 for this run.

‍

Go back to the destination Postgres terminal, and have a look at _airbyte_raw_append_full_refresh_demo as follows:

SELECT * FROM _airbyte_raw_append_full_refresh_demo;

‍

Which should look similar to the following:

_airbyte_ab_id | _airbyte_data | _airbyte_emitted_at --------------------------------------+-----------------------------+---------------------------- 972a8d74-d840-4c43-826e-b0a1042c1681 | {"id": 1, "name": "Mary X"} | 2022-07-27 16:46:44.351+00 fc5bae3e-cbde-4790-921f-bab7a6dce51f | {"id": 2, "name": "John D"} | 2022-07-27 16:46:44.351+00 15264229-8022-415e-8b5a-939f048dc15e | {"id": 1, "name": "Mary X"} | 2022-07-27 17:18:35.355+00 f33488c0-ac2b-4c01-b054-7d8534ea0199 | {"id": 2, "name": "John D"} | 2022-07-27 17:18:35.355+00 8708359b-bad9-4a1f-9172-073cc5469d32 | {"id": 3, "name": "Alex M"} | 2022-07-27 17:18:35.355+00(5 rows)

‍

This is quite different from the destination table that was generated after inserting an additional record into the source data table in the previous section on the full refresh | overwrite mode! It contains all of the data from the first sync, as well as all of the data from the second sync. You can see from the _airbyte_emitted_at timestamp which records were sent in the first sync versus the second sync.

The corresponding normalized data in the append_full_refresh_demo table can be seen by executing:

SELECT * FROM append_full_refresh_demo;

‍

Which should respond with a table that looks similar to the following:

‍

The normalized destination table has copies of all of the records that existed from the first sync along with all of the records that have just been inserted in the second sync.

If you look at the _airbyte_normalized_at field, it appears that every row in the normalized table has been created by running the normalization SQL on the rows in the raw data table. Let’s look at this in more detail.

Viewing the normalization SQL

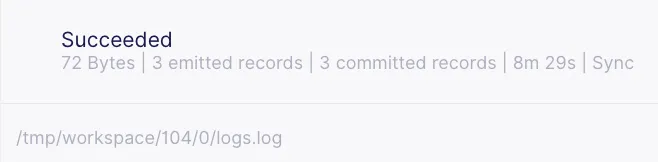

You can view the normalization code by executing the following command on the airbyte-server container (replacing the job ID and attempt ID with values you extracted from the UI). In my case I execute the following:

cat /tmp/workspace/104/0/build/run/airbyte_utils/models/generated/airbyte_incremental/public/append_full_refresh_demo.sql

‍

Which responds with the following SQL:

delete from "postgres".public."append_full_refresh_demo" where (_airbyte_ab_id) in ( select (_airbyte_ab_id) from "append_full_refresh_demo__dbt_tmp172440183629" ); insert into "postgres".public."append_full_refresh_demo" ("id", "name", "_airbyte_ab_id", "_airbyte_emitted_at", "_airbyte_normalized_at", "_airbyte_append_full_refresh_demo_hashid") ( select "id", "name", "_airbyte_ab_id", "_airbyte_emitted_at", "_airbyte_normalized_at", "_airbyte_append_full_refresh_demo_hashid" from "append_full_refresh_demo__dbt_tmp172440183629" )

‍

This is totally different from the SQL that was used in the first full refresh | append sync!

The first command finds the records that exist in a temporary table, and then deletes these records from the normalized table. The very next command inserts all of the records from that same temporary table into the normalized table.

To understand what has happened, you can see how that temporary table was created. Execute the following command on the airbyte-server container (replacing the job ID and attempt ID with values you extracted from the UI):

cat /tmp/workspace/104/0/logs/dbt.log

‍

You should be able to find the SQL that was used to create the temporary table. The SQL is very similar to SQL from the previous normalizations, and the beginning of the SQL code block looks as follows:

create temporary table "append_full_refresh_demo__dbt_tmp172440183629"as (with __dbt__cte__append_full_refresh_demo_ab1 as (...etc...

‍

However at the very end of this SQL block there is a SELECT statement which limits the records that will be selected for normalization from the raw table to only those that have an _airbyte_emitted_at timestamp that is greater or equal to the highest _airbyte_emitted_at value in any of the records that are already in the normalized data.

where 1 =1 and coalesce( cast(_airbyte_emitted_at as timestamp with time zone) >= (select max(cast(_airbyte_emitted_at as timestamp with time zone)) from "postgres".public."append_full_refresh_demo"), true) );

‍

This reduces the number of records which will be selected for normalization to only the records that were sent in the most recent sync, along with records from the previous sync. This is much more efficient than re-normalizing all of the rows in the raw table.

ℹ️ Similar SQL is generated for each subsequent sync that is done during the full refresh | append mode. If you want to see this for yourself, then in the subsequent synchronizations you can note the job ID and attempt ID and view the SQL code and the dbt log file as you have just done.

Update a record on the source

Update a record on the source full_refresh_demo table and look at the resulting table with the following commands:

UPDATE full_refresh_demo SET name='Brett D' WHERE id=3;SELECT * FROM full_refresh_demo;

‍

And the source table should now look as follows:

id | name ----+--------- 1 | Mary X 2 | John D 3 | Brett D(3 rows)

‍

As before, execute a new sync by clicking on Sync Now in the connection panel, and wait for it to complete.

‍

Once complete you should see that again, three records have been emitted. Have a look at the _airbyte_raw_append_full_refresh_demo table as follows.

SELECT * FROM _airbyte_raw_append_full_refresh_demo;

‍

Which should look similar to the following:

_airbyte_ab_id | _airbyte_data | _airbyte_emitted_at --------------------------------------+------------------------------+---------------------------- 972a8d74-d840-4c43-826e-b0a1042c1681 | {"id": 1, "name": "Mary X"} | 2022-07-27 16:46:44.351+00 fc5bae3e-cbde-4790-921f-bab7a6dce51f | {"id": 2, "name": "John D"} | 2022-07-27 16:46:44.351+00 15264229-8022-415e-8b5a-939f048dc15e | {"id": 1, "name": "Mary X"} | 2022-07-27 17:18:35.355+00 f33488c0-ac2b-4c01-b054-7d8534ea0199 | {"id": 2, "name": "John D"} | 2022-07-27 17:18:35.355+00 8708359b-bad9-4a1f-9172-073cc5469d32 | {"id": 3, "name": "Alex M"} | 2022-07-27 17:18:35.355+00 282ea34c-3b69-4c0b-a3e0-f581c4f351a3 | {"id": 1, "name": "Mary X"} | 2022-07-28 12:17:01.493+00 6a0e706f-4e94-422f-abd0-e6635678840c | {"id": 2, "name": "John D"} | 2022-07-28 12:17:01.493+00 4b0eeaf6-499c-41f7-9aff-0c134c8e0ac4 | {"id": 3, "name": "Brett D"} | 2022-07-28 12:17:01.493+00(8 rows)

‍

The corresponding normalized data in the append_full_refresh_demo table can be seen by executing:

SELECT * FROM append_full_refresh_demo;

‍

Which should respond with a table that looks similar to the following:

‍

Every time a sync is performed, the entire source full_refresh_demo table is appended to the destination table. Additionally, if you look at the _airbyte_normalized_at values, you will notice that only the documents from the current and previous sync have been normalized, as expected based on the previous analysis of the SQL normalization code.

Delete a record on the source

See what happens if you delete a record on the source database by executing the following commands:

DELETE FROM full_refresh_demo where id=3;SELECT * FROM full_refresh_demo;

‍

The source full_refresh_demo table should look similar to:

id | name ----+-------- 1 | Mary X 2 | John D(2 rows)

‍

Then perform a sync by clicking on the Sync Now button in the connection panel.

‍

Once the sync has completed you will see that two records were emitted — and once again, you can look at the raw data in _airbyte_raw_append_full_refresh_demo with:

SELECT * FROM _airbyte_raw_append_full_refresh_demo;

‍

Which now looks as follows:

‍

And the then execute the following to see the normalized data:

SELECT * FROM append_full_refresh_demo;

‍

The append_full_refresh_demo table should look similar to the following:

‍

Again, the entire source table has been appended into the destination. Additionally, you can see that only the data from the current and the previous sync have been normalized, as expected based on the previous analysis of the normalization code.

Sync data without modifying the source data

It should be clear by now that regardless of the action that is taken on the source table, whenever a sync is performed, the entire table is appended to the destination table. Let’s do one last sync, without modifying any data on the source, just to be sure.

SELECT * FROM _airbyte_raw_append_full_refresh_demo;

‍

Which responds with the following

‍

And look at the normalized data with:

SELECT * FROM append_full_refresh_demo;

‍

Which should respond with something similar to:

‍

As expected, even if no source data is modified, a copy of the entire source table is appended onto the destination tables. Additionally, by looking at the value of _airbyte_normalized_at you can see that only the data from the current and previous syncs have been normalized.

Conclusion

In this tutorial I have guided you through a hands-on deep-dive into Airbyte’s full refresh synchronization modes. The main focus of this article has been to discover how replicated data will look, and to understand the SQL code that is executed to transform raw data into normalized data.

While it may be feasible to use Airbyte’s full refresh | overwrite or full refresh | append modes to repeatedly sync an entire source table that contains a small amount of data, this approach may become infeasible for large (100s of MB or TB of data) data sets or for data that is frequently synchronized. For these cases, other replication modes may be more appropriate.

This tutorial is followed-up with the following related tutorials:

You may be interested in other Airbyte tutorials, and in Airbyte’s blog. You can also join the conversation on our community Slack Channel, participate in discussions on Airbyte’s discourse, or sign up for our newsletter. Furthermore, if you are interested in Airbyte as a fully managed service, you can try Airbyte Cloud for free!

About the Author

Alex Marquardt

Alex is a Data Engineer and Technical writer at Airbyte, and was formerly employed as a Product Manager and as a Principal Consulting Architect at Elastic. Alex has an MBA from the IESE Business School in Barcelona, and a Masters degree in Electrical Engineering from the University of Toronto. Alex has a personal blog at https://alexmarquardt.com.

Integrate with 700+ apps using Airbyte

Try Airbyte for free
